450/750V~0.6/1kV Cable,Flame-retardant Instrumentation Cable

Name: 450/750V~0.6/1kV Cable,Flame-retardant Instrumentation Cable
Brand: New Baofeng
SKU: 119877011
Availability: InStock

US$ 1.2 - 100 MOQ: 500 Meters

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

New Baofeng

Model Number:

control cable series KVV KVVP KVVP2 etc

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name New Baofeng

Model Number control cable series KVV KVVP KVVP2 etc

Conductor Material Copper

Insulation Material Other, Fluoroplastic

Jacket Other, PVC PE XLPE,Fluoroplastic,etc,PVC,PE

Number of Conductors 2-61

Application Plant,computer transmission, Plant,computer transmission

Specifications

control cable
1 IEC, ASTM, DIN, BS standard
2 ISO,CCC certification
3 Response within 12 hours
5 Factory

control cable

Application

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,

production lines, transportation equipment, conveyor and assembly lines as well as in plant construction

under the circumstance that the rated voltage is up to 450/750V AC.

Character and Relevant Parameters

1. Long-term service temperature of the cable conductor: 70 0C

2. Rated voltage: 450/750V

3. Cable lying temperature ≥0 0C

4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61

5. Minimun bending radius:

Non armored ≥ out diameter of cable 6 times

Armored layer or copper tape shielded ≥ outer diameter of cable 12 times

Shielded layer soft cable ≥ outer diameter of cable 6 times

PVC Insulated Control Cable Parameter (Example)

Type	Name	Section Area(mm2)	No. of Core
KVV	Copper Conductor, PVC Insulated and Sheathed control cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVP	Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVP2	Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14

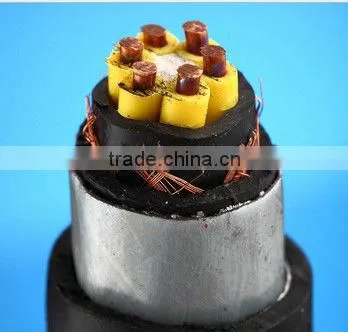

KVVP2-22	Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVV22	Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVR	Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
KVVRP	Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable	0.75 1.0 1.5 2.5	2-8 10 12 14 16 19 24 27 30 37
		4.0 6.0	2-8 10 12 14
