Specifications
1 IEC, ASTM, DIN, BS standard2 ISO,CCC,CB certification
3 Response within 12 hours
4 Free Sample
5 Factory direct sale
water proof /flame-retardant/fire-resistant/electric wires and cables
1. The applications
Rated voltage (U0/U) 0.6/1,1.8/3,3.6/6,6/10,8.7/10,8.7/15,12/20,21/35,26/35KV in transmission
& transformation line & for water-proofing purpose .
2. Standards
IEC60502-1 2004 ISO9001:2008 GB/T12706-2008 CCC IEC, ASTM, DIN, BS standard
ISO,CCC,CB certification
3. Product Features
A.No necessary to heat up in advance while installing above 0 oC .
B.Max. continuous normal operating Temperature: 70 oC (PVC Sheathed Cable).
C.Max. Permissible temperature at short circuit (5s. at longest): 250oC.
D.Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
4.Detailed Description

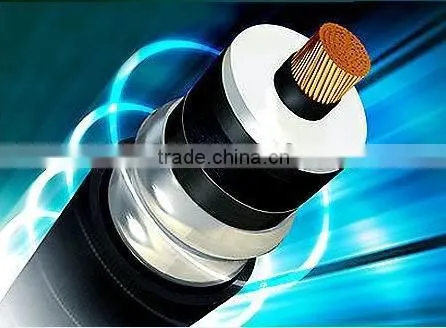

Crosslinked XLPE insulation power cable not only has excellent electric and mechanical properties,
but also has powerful resistance against chemical corrosion, heataging and environmental stress.
Its structure is simple and can be used conveniently and also can belaid with no restriction of different
levels.The long term operating temperature is 900C, and its transmission capacitance is large.
Our company can produce both flame retardant and nonflame retardant series of XLPE power cables.
Our products can be produced according to our works specifications which are equivalent to
GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards as
stated above..
The flame-retardant cable covers all kinds of lowsmoke, freehalogen, lowsmoke halogen free and
three classes of A, B, C.
We can design and manufacture special XLPE cables according to the other standards require by the customers,
such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on.
5.Models sheet 1:
Type |
Description |
Main Application |
|
Cu core |
Al core |
||
|
(FR)YJV32 or (FR)YJY33 |
(FR)YJLV32 or (FR)YJLY33 |
(Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable |
For laying in shaft, water under ground and large difference of level, able to bear mechanica pressure and moderate pulling force. |
|
(FR)YJV42 or (FR)YJY43 |
(FR)YJLV42 or (FR)YJLY43 |
(Flame retardant) Cu, Al core XLPE insulated,thick steelwire armoured, PVC or PE sheathed power cable |
For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force. |
Models sheet 2:
Model |
Name |
Main application |
|
VV VLV |
PVC insulated PVC sheathed powder cable |
For laying in doors,inducts and in tunnels,but unable to bear pulling force and pressure. |
|
VV22 VLV22 |
PVC insulated steel tape armoured PVC sheathed powder cable |
For laying in doors,in tunnels and direct in groud, able to bear pulling,force and pressure. |
|
VV32 VLV32 |
PVC insulated fine steel wire armoured PVC sheathed powder cable |
For laying down wells and under water,able to bear certain axis pulling force. |
|
VV42 VLV42 |
PVC insulated steel wire armoured PVC sheathed powder cable |
For laying down wells and under water,able to bear certain pulling force. |
|
ZR-VV ZR-VLV |
PVC insulated PVC sheathed flame retardant powder cable |
For laying in doors,inducts and in tunnels,but unable to bear pulling force and pressure. |
|
ZR-VV22 ZRV-LV22 |
PVC insulated steel tape armoured PVC sheathed flame retardant powder cable |
For laying in doors,in tunnels and direct in ground,able to bear pulling porce and pressure. |
|
ZR-VV32 ZR-VLV32 |
PVC insulated fine steel wire armoured PVC sheathed flame retardant powder cable |
For laying in doors,in wells,under water,able to bear certain pulling force. |
|
ZR-VV42 ZR-VLV42 |
PVC insulated steel wire armoured PVC sheathed retardant powder cable |
For laying down wells and under water,able to bear certain axis pulling force |
