Specifications
1 IEC, ASTM, DIN, BS standard2 ISO,CCC certification
3 Response within 12 hours
4 Free Sample
5 On time delivery
Self Regulated Heating Cable Flame Retardant Cable Industrial Cable
Cable Structure and Index
pper wire
nductive plastic layer
3.XLPE insulation layer
4.Tinner copper braid or Mg-Al alloy
5.FEP,F46,PVC,PE outer jacket
Operate temperature |
Maximum maintain temperature: 105 °C |
Maximum withstands temperature:135°C | |
Maximum surface temperature: 105°C±5°C | |
Minimum installation temperature:-60 °C | |
Application fields |
Pipe. tank freeze protection and process temperature maintenance ;Indoor and outdoor heating systems, freeze protection and snow melting. |
| Service voltage | 12v 24v 36v 110v 220v 380v |
Output power (at 10°C) |
10w/m 15w/m 20w/m 25w/m 35w/m 40w/m 45w/m 50w/m 60w/m |
| Thermostability | Recircling from 10~99°C 300 times, the quantity of heat value maintains more than 90%. |
| Bending radius | 25.4mm at 20°C and 35.0mm at -30°C |
| Insulation resistance |
Cable length 100m, test it with 2500VDC megger for 1min at 75°C, the minimum insulation resistance is 2100MΩ
|
| Ex-mark | ExellT6 ExellT4 |
Myso Single core heavy duty Flexible cables generally in accordance with - is : 694 - 1990 voltage grade upto 1100 volts
| Area Sq. mm | 25.0 | 35.0 | 50.0 | 70.0 | 95.0 | 120.0 | 150.0 | 185.0 | 240.0 | |
| CONDUCTOR | No. & Sizes of Wires Nominal mm | 196/.4 | 276/.4 | 396/.4 | 360/.05 | 475/.5 | 608/.5 | 750/.5 | 925/.5 | 1221/.5 |
| Max. Resistance@20oC Ohm/Km | 0.780 | 0.554 | 0.386 | 0.272 | 0.206 | 0.161 | 0.129 | 0.106 | 0.0801 | |
| Current Rating DC/AC Amps | 80 | 102 | 138 | 214 | 254 | 300 | 340 | 390 | 460 | |
| INSULATION | Thickness mm |
1.2 | 1.2 | 1.4 |
1.8 | 1.9 | 2.1 | 2.1 | 2.5 | 2.5 |
| Overall Diameter mm | 11.0 | 12.5 | 14.5 | 17.0 | 19.0 | 21.0 | 23.5 | 26.0 | 29.5 |
4. Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used , and is expressed in the form of Uo/U (Um)KV .Where :
Uo-The rated power-frequency voltage between conductor and earth or metallic scieen ,for which the cable designed;
U-The rated power-frequency voltage between conductors, for which the cable designed;
Um-The maximum value of the highest system voltagefor which the equipment may be used.
Quote time:We will reply to you ASAP within 12 hours when receive your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Quality and quality: After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid. The samples will be sent to you via express and arrive in 3-5 days
MOQ: 500 meters
Delivery time: Usually within 10 working days but mainly depend on the your quantity, in addition, more quantity more discounts.
Packing details: For electrical cable wires ,we usually use wooden drum or iron wood drum.
Terms of delivery:EXW, FOB, CFR, CIF,CPT,CIP, DDU, DDP etc, You can choose the one which is the most convenient or cost effective for you
Term of payment: 30% deposit in advance,the balance 70% before shippment or we can negotiate.
Warranty:One year
Other Special Characteristics: design and manufacture according to customers' request. ^.^

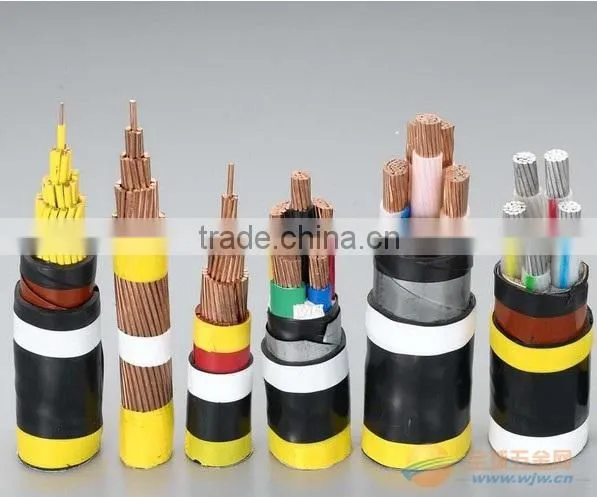

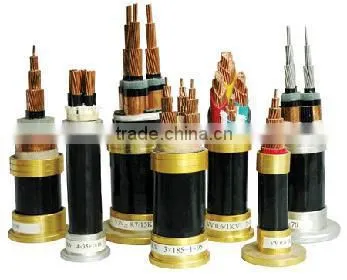

Medium voltage cabel power cable:
3.6/6kV,6/6kV,6/10kV,8.7/10kV,8.7/15kV,12/20kV,18/20kV,18/30kV,21/35kV,26/35kV.
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
Number of the cores:Single core and 3 cores
Conductor:copper or aluminium
Insulation:xlpe
Copper tape or copper wire screen
Unarmoured and armoured(Steel tape and steel wire armored)
PVC or PE sheath power cable

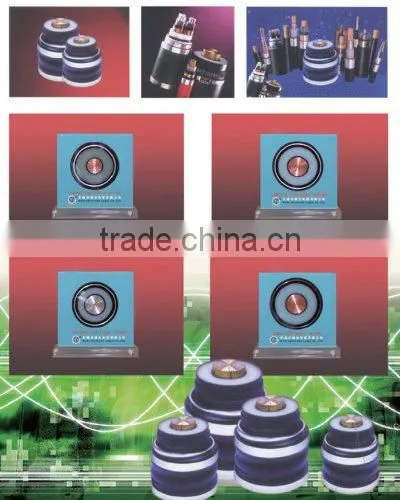

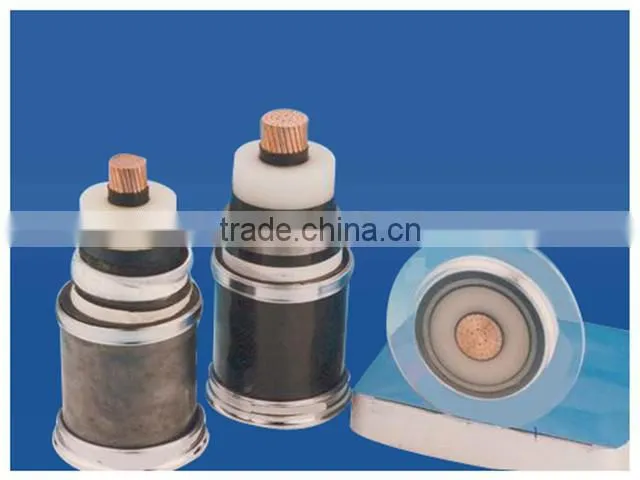

High voltage cable power cable:
High voltage (35kv~220kv)
Number of the cores:Single core
Conductor:copper or aluminium
Insulation:xlpe
Metal sheath (lead or corrugated aluminium)
Hdpe or pvc outer sheath power cable.

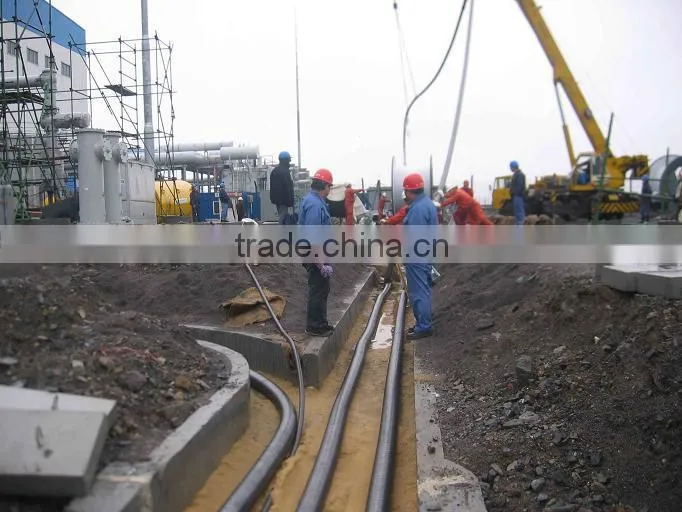

Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
Hot Sale Cables
6.35/11kV XLPE Cable
8.7/15kV XLPE Cable
Airport lighting cable
AAC Conductor,ACSR Conductor
Aerial Bundled Cable
Flexible Wire and Cable
Advantage
1. BS IEC Standard;
2. ISO and CCC certification;
3. Best service with competitive price;
4. Factory direct sale;
5. Best reputation from the clients;
6. High quality of the products.
Steel tape armored or steel wire armored or unarmored
PVC or PE outer sheath power cable.
