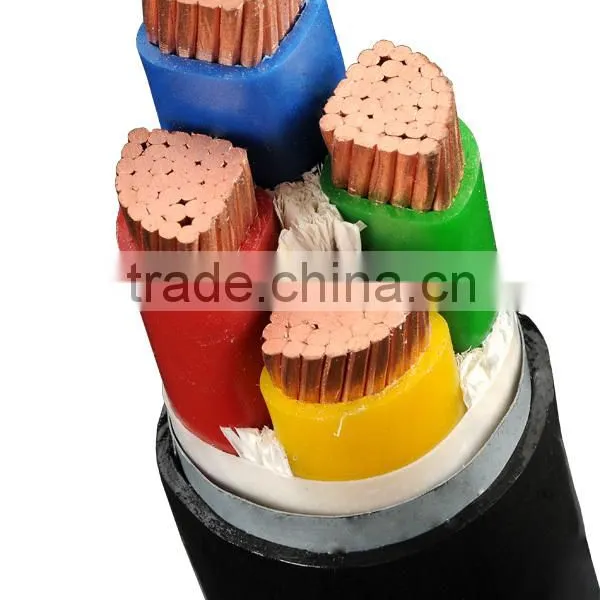

Copper conductor XLPE insulated fine steel armored PVC sheathed Flame-retardant power cable
Our main products consist of power cables, bare conductors, aerial bundled cables, control cables, welding cables, rubber cables,
special cables and electrical wires. Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF,
AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
XLPE(Cross-linked polyethylene) insulated electric power cable,aluminum conductor or copper conductor
IEC 60502, IEC 60228, IEC 60332, CE,
Armour, LSZH, Fire-resistant optional
Constructions
Conductor |
Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
Circular solid Copper Conductor, Class 1 as per IEC 60228 | |
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228 | |
Conductor Screen |
Semi-conductor (MV only) |
Insulation |
XLPE(Cross-linked polyethylene) |
Insulation Screen |
Semi-conductor (MV only) |
Separate Screen |
Copper Tape (MV must, LV optional) |
Filler |
PP Yarn, or Paper |
Wrapping Tape |
PP |
Inner Covering |
Extruded PVC (MV only) |
Armour |
Steel Wire, or Steel Tape, or Aluminium Tape optional |
Overall Sheath |
PVC or PE |
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
Certificates
CE, RoHS, CCC, KEMA and more others at request
Specifications
YJV |
Copper Conductor, XLPE Insulated, PVC Sheathed Power Cable |
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
YJLV |
Al. Conductor, XLPE Insulated, PVC Sheathed Power Cable |
|
YJY |
Copper Conductor, XLPE Insulated, PE Sheathed Power Cable |
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
YJLY |
Al. Conductor, XLPE Insulated, PE Sheathed Power Cable |
|
YJV22 |
XLPE Insulated,Steel Tape Armored,PVC Sheathed Power Cable |
Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
YJLV22 |
Al. Insulated,Steel Tape Armored,PVC Sheathed Power Cable |
|
YJV32 |
Copper Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable |
Apply to shafts,water and soil,able to bear the larger positive pressure. |
YJLV32 |
Al.Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power Cable |
|
YJV42 |
Copper Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable |
For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force. |
YJLV42 |
Al.Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable |
Our main products: High and low voltage XLPE insulated Cables, PVC insulated cables, steel wire armored cables, steel tape armored cables, ABC cables, Overhead insulated cables, AAC, AAAC & ACSR cables, Copper wires, Galvanized steel wire strands, PVC insulated wires and flexible wires, Rubber insulated cables, underground cables, control cables, voltage up to 35KV.
The international standard we can meet: ASTM, IEC, BS, GB, DIN ,GOST, ICEA and AS/NZS standards and other standards. We can provide OEM service.
Since our establishment, we have insisted on the tenet of "scientific management" and tried our best to improve product quality. We control every chain especially the process of production strictly, ensuring the unqualified raw materials and semi-finished products not enter into the next operation. We guarantee that all the finished products meet the requirements of our clients.
We were able to establish long-term business relationships with our clients from many parts of world such as Australia, the Philippines, Vietnam, Thailand, Myanmar, Kenya, South Africa, Nigeria, Tanzania, the USA, Singapore, the UK, Italy, Bolivia, Chile and European countries.
