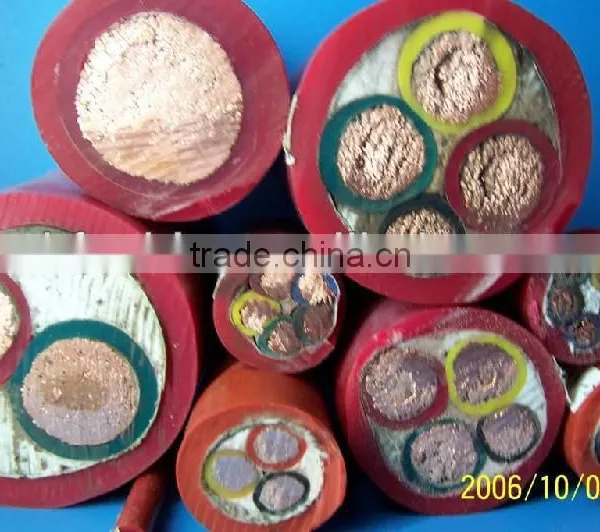

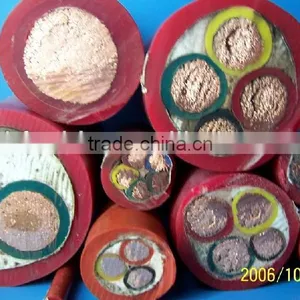

Halogen-Free Low-Smoke Flame-Retardant Cable(cable,power Cable,halogen Free Cable)

Negotiable MOQ: 1000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

NBF

Model Number:

Contact Supplier Request Quote Chat Now

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name NBF

Model Number BV

Insulation Material XLPE

Type Other, Low/medium/high voltage

Application Other, Industrial,Construction Power Station,Industrial ,Underground

Conductor Material Other, copper or aluminium

Jacket PVC

Specifications

1 IEC, ASTM, DIN, BS standard
2 ISO,CCC certification
3 Response within 12 hours
4 Free Sample
5 On time delivery

Halogen-Free Low-Smoke Flame-Retardant cable(cable,power cable,halogen free cable)

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Electric Cables:

CU Conductor PVC Insulated PVC Sheathed Power Cable

1. The applications: Rated voltage (U0/U) 0.6/1kv 8.7/15KV 26/35kV in transmission & transformation line & for water-proofing purpose .

2. Standards: 60502IEC ISO9001

3. Product features:

1) No necessary to heat up in advance while installing above 0^oC.

2) Max. continuous normal operating Temperature: 90^oC (PVC Sheathed cable).

3) Max. Permissible temperature at short circuit (5s. at longest): 250^oC.

4) Permissible bending radius:

Single core: ≥20(d+D)±5%.

Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).

Detailed Description

Cross-linked polyethylene insulated power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is large.

Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above..

The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on..

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0

We also produce:

flame-retardant control cable, XLPE insulated control cable, XLPE insulated flame-retardant control cable, low smoke halogen free flame-retardant control cable etc.

Using Features & Main Performance

1, Rated voltage Uo/U includes 0.6/1kV, 1.8/3kV, 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV,12/20kV, 12/20kV, 21/35kV, 26/35kV;

2, The permitted highest operating temperature of conductor for long-term working is 90°C .In short-circult (Max.long-term time is no more than 5 seconds) ,the highest temperature of conductor is not higher than250°C;

3, D.C. Conductor resistance complies with the stipulations of GB/T3956;0

4, PVC sheath cable Environment temperature in laying the cable should be no lower than 0 ;PE sheath cable Environment temperature in laying the cable should be no lower than -20 ; The Min. bending radius should be no less than 15 times of cable outer diameter;

5, The cable is laid without drop limit;

6, Working Frequency Voltage Test: for cable with UO of 1.8kV or lower: 2.5 UO+ 2kV/5 min without puncture for cable with UO of 3.6kV or higher: 3.5 UO / 5 min without puncture

7, Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73UO for the cable with of 3.6kV or higher.

Instruction

1) No necessary to heat up in advance while installing above 0oC.

2) Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).

3) Its structure is simple and using conveniently, also can be laid with no restriction of different level.

4)The long term operating temperature is 90, and its transmit capacitance is large.

5) When using it, please check the wire insulation from the appearance in case of causing any damage because of transporting or storing not well, and influence its effect.
