Home > Products > Control cable and instrumentation cable > multicore control cable, Copper conductor PVC insulated PVC sheathed copper wire braided multicore control cable

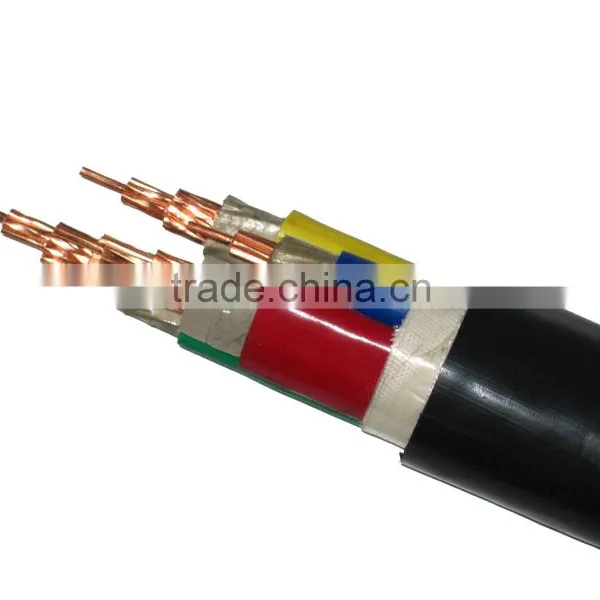

multicore control cable, Copper conductor PVC insulated PVC sheathed copper wire braided multicore control cable
- 3000 Meter / Meters per Month
- Tianjin
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Hebei, China | Brand Name: | NBF | Model Number: | multicore control cable, Copper conductor PVC insulated PVC sheathed c |
| Application: | Other, Power Station,recording studio, the electronic wires, | Conductor Material: | Copper | Jacket: | PVC |
| Insulation Material: | PVC |
Product Description
Specifications
lor-coded PVC jacket single core.2.Through ULVW - 1 vertical retardant test.
3. much quantity to short times supply
multicore control cable, Copper conductor PVC insulated PVC sheathed copper wire braided multicore control cable
1.U0/U :300/500V,450/750v
2.Standard : IEC60227, BS6500, VDE0250, GB/T9330 .
3.ing temperature:70°C, can be 90°C and 110°C as per requirement
4.Cores:2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52 and 61
5.Cross section area:0.50~10mm2
6.Color:black or as per requirement
7.Certification:ISO9001, ISO14001,OHSMS18001,CCC,etc.
8.OEM can be available
Application:
The products are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
The long-time working temperature of conductor of PVC insulated cable is 70°C
The long-time working temperature of conductor of XLPE insulated cable is 90oC
The temperature for laying the cables can not be lower than 0°C .Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
3. Description of common popular sale control cable
PVC insulated control cable |
PVC insulated and sheathed control cable |
PVC insulated and sheathed braid shield control cable |
PVC insulated and sheathed Cu tape armored shield control cable |
PVC insulated and sheathed aluminum tape armored shield control cable |
PVC insulated and sheathed steel tape armored control cable |
PVC insulated and sheathed Cu tape armored shield control steel tape armored control cable |
PVC insulated and sheathed steel wire braid control cable |
PVC insulated and sheathed soft control cable |
PVC insulated and sheathed braid shield soft control cable |
XLPE insulated control cable |
XLPE insulated PVC sheathed control cable |
XLPE insulated PVC sheathed braid shield control cable |
XLPE insulated PVC sheathed Cu tape armored shield control cable |
XLPE insulated PVC sheathed aluminum tape armored shield control cable |
XLPE insulated PVC sheathed steel tape armored control cable |
XLPE insulated PVC sheathed Cu tape armored shield control steel tape armored control cable |
XLPE insulated PVC sheathed steel wire braid control cable |
4. Technical date sheet
| No. of cores x Nominal section area(mm2) | Insulation thickness (mm) | Sheath thickness (mm) | Min O.D (mm) | Max O.D (mm) |
| 2 x 10 | 1.0 | 1.5 | 15.5 | 19.0 |
| 3 x10 | 1.0 | 1.5 | 16.5 | 20.0 |
| 4 x 10 | 1.0 | 1.7 | 18.0 | 22.0 |
| 5 x 10 | 1.0 | 1.7 | 19.5 | 24.0 |
| 7 x 10 | 1.0 | 1.7 | 21.5 | 26.0 |
| 8 x 10 | 1.0 | 1.7 | 24.0 | 29.0 |
| 10 x 10 | 1.0 | 1.7 | 27.0 | 32.5 |
| 12 x 6 | 0.8 | 1.7 | 23.0 | 27.5 |
| 14 x 6 | 0.8 | 1.7 | 24.0 | 29.0 |
| 16 x 2.5 | 0.8 | 1.7 | 20.5 | 24.5 |
| 19 x 2.5 | 0.8 | 1.7 | 21.5 | 25.5 |
| 24 x 2.5 | 0.8 | 1.7 | 25.0 | 29.5 |
| 27 x 2.5 | 0.8 | 1.7 | 25.5 | 30.5 |
| 30 x 2.5 | 0.8 | 1.7 | 26.5 | 31.5 |
| 37 x 2.5 | 0.8 | 2.0 | 29.0 | 34.0 |
| 44 x 2.5 | 0.8 | 2.0 | 32.5 | 38.5 |
| 48 x 2.5 | 0.8 | 2.0 | 33.0 | 39.0 |
| 52 x 2.5 | 0.8 | 2.2 | 34.5 | 40.5 |
| 61 x 2.5 | 0.8 | 2.2 | 36.5 | 42.5 |
5. for special demand, we can design our control cable with different material and construction.
silicon rubber cable can work with high temperature enviroment.
fluoroplastic insulated cable can work with extreme low temperature(our products has been in Russia)
low smoke and halgen free, flame retardant, fire retardant control cable for high safe demand surrounding is also popular in our Hengtian cable factory(supply to our national railway station for years)
6. some wire sample for reference, details welcome to contact us without hesitation
TYPE | NAME | Section Area(mm 2 ) |
|
| |||||
| 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 |
| |
| No. of Core | Application Site | |||||||
KVV | Copper Conductor, PVC Insulated and Sheathed Control Cable | 2-48 | 2-14 | 2-10 | Permanent installation indoors, in cable ditches or pipes | ||||
ZR-KVV | Flame Retardant Copper Conductor, PVC Insulated and Sheathed Control Cable | ||||||||
NH-KVV | Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed Control Cable | ||||||||
KVVP | Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable | 2-48 | 2-14 | 2-10 | Permanent installation indoors, in cable ditches or pipes where shielding is required | ||||
ZR-KVVP | Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable | ||||||||
NH-KVVP | Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Braiding Shielded Control Cable | ||||||||
KVVP2 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | 4-48 | 4-14 | 4-10 | Permanent installation indoors, in cable ditches or pipes where shielding is required | ||||
ZR-KVVP2 | Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | ||||||||
NH-KVVP2 | Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | ||||||||
KVV22 | Copper Conductor, PVC Insulated and Sheathed, Steel tape Armored Control Cable | 7-48 | 4-48 | 4-14 | 4-10 | Permanent installation indoors, in cable ditches, directly buried, Be able to withstand stronger external mechanical force | |||
ZR-KVV22 | Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Steel tape Armored Control Cable | ||||||||
NH-KVV22 | Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Steel tape Armored Control Cable | ||||||||
KVV32 | Copper Conductor, PVC Insulated and Sheathed, Thin steel wire Armored Control Cable | 19-61 | 7-48 | 4-14 | 4-10 | Permanent installation indoors, in cable ditches, vertical shaft Be able to withstand stronger external mechanical force | |||
ZR-KVV32 | Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Thin steel wire Armored Control Cable | ||||||||
NH-KVV32 | Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Thin steel wire Armored Control Cable | ||||||||
KVVR | Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable | 4-48 | - | - | Installation indoors where flexibility and movability are required | ||||
ZR-KVVR | Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable | ||||||||
NH-KVVR | Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Flexible Control Cable | ||||||||
KVVRP | Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | 4-16 | 4-48 | - | - | Installation indoors where flexibility shielding and movability are required | |||
ZR-KVVRP | Flame Retardant Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | ||||||||
NH-KVVRP | Copper Conductor, Mica tape Fire-Resistant, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | ||||||||
