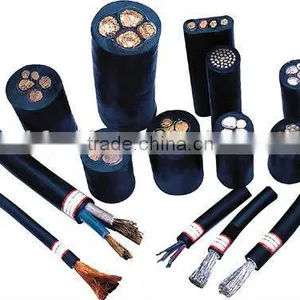

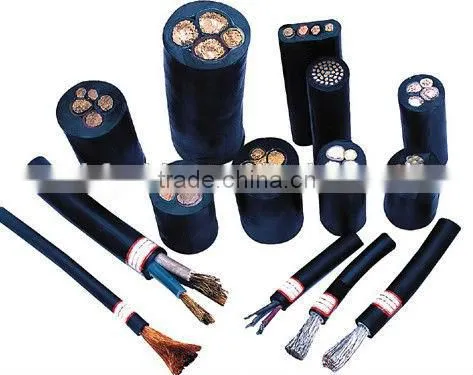

0.6/1kv Pvc Insulated and Sheathed Power Cable
US$ 1 - 2
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
New baofeng
Model Number:
0.6/1kv pvc insulated and sheathed power cable
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.6/1kv Pvc Insulation Power CableUS$ 1 - 2MOQ: 500 Meters -
IEC GOST CE ISO Certificate 450/750v Copper Conductor Pvc Insulation Pvc Sheath Control CableNegotiableMOQ: 1000 Meters
-
Control Flexible Cable CY SY YY Fine Steel Wire Armoured or Copper Wire Braiding or Copper Tape Shielding Control CableNegotiableMOQ: 1000 Meters
-
Factory and R&D Center Based Copper Conductor Control Cable 6mm2NegotiableMOQ: 1000 Meters
-
Fire-resistant Control Cable With Copper Tape Shield and CE/RoHS MarksNegotiableMOQ: 1000 Meters
Place of Origin
Hebei, China
Brand Name
New baofeng
Model Number
0.6/1kv pvc insulated and sheathed power cable
Insulation Material
PVC
Type
Low Voltage
Application
Construction
Conductor Material
Copper
Jacket
PVC
Specifications
Copper core PVC insulated steel tape armoured PVC sheathed flexible control cable1.CE,ISO,CCC,PCCCcertificate
0.6/1kv pvc insulated and sheathed power cable
1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D
Control Cable
| Type | Name | Section Area(mm2) | No. of Core | Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
