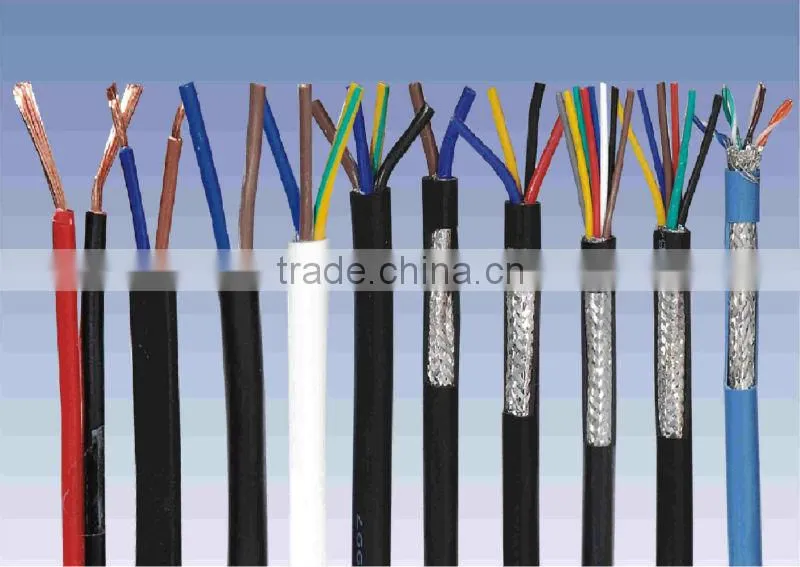

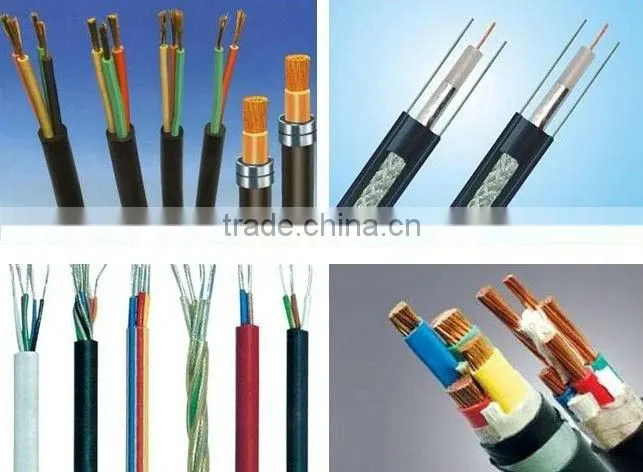

Control Cable Armoured With Thin Steel Wire KVV32

Name: Control Cable Armoured With Thin Steel Wire KVV32
Brand: New Bao Feng
SKU: 119876183
Availability: InStock

Negotiable MOQ: 500 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

New Bao Feng

Model Number:

KVV32

Hebei New Baofeng Wire & Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name New Bao Feng

Model Number KVV32

Application Industrial

Conductor Material Copper

Jacket PVC

Insulation Material XLPE

Specifications

1. Has passed CE, ISO, CCC, PCCC...Certificate
2. Sell well in Europe, America, Asia and Africa.
3. Standard GB, IEC, AS

This product is suitable for use in rated AC voltage (U0/U) 0.6/1kV system transmitting and distributing circuit.
Type: YJV YJLV YJY YJLY

0.6/1kV 1-Core, XLPE insulated PVC/PE Sheathed Power Cable
Nominal cross-sectional area mm 2	Diameter of conductor mm	YJV YJLV YJY YJLY			YJV22 YJLV22 YLV23 YJLV23
		Approx overall diameter mm	Cable weight, max kg/km		Approx overall diameter mm	Cable weight, max kg/km
		Approx overall diameter mm	YJV YJY	YJLV YJLY	Approx overall diameter mm	YJV22 YJY23	YJLY22 YJLY23
1× 1.5	0.7	5.6	52	—	—	—	—
1× 2.5	0.7	6.0	65	50	—	—	—
1× 4	0.7	6.4	83	58	—	—	—
1× 6	0.7	7.0	106	69	—	—	—
1× 10	0.7	8.3	157	94	11.7	233	170
1× 16	0.7	9.3	221	121	12.7	305	205
1× 25	0.9	11.2	334	175	14.4	426	267
1× 35	0.9	12.4	435	215	15.6	536	316
1× 50	1.0	14.1	576	278	17.1	680	382
1× 70	1.1	16.1	793	362	19.1	912	481
1× 95	1.1	18.2	1066	468	21.0	1188	590
1× 120	1.2	20.0	1321	565	22.8	1454	698
1× 120*	1.2	18.7	1275	539	21.5	1400	663
1× 150	1.4	22.0	1606	677	24.8	1751	823
1× 150*	1.4	20.7	1584	658	23.5	1721	795
1× 185	1.6	24.2	1977	813	27.0	2140	976
1× 185*	1.6	22.6	1868	763	25.4	2020	915
1× 240	1.7	27.1	2548	1018	29.9	2729	1200
1× 240*	1.7	25.1	2399	952	27.9	2567	1121
1× 300	1.8	29.7	3151	1232	32.7	3363	1445
1× 300*	1.8	27.5	3028	1172	30.5	3225	1369
1× 400	2.0	33.1	3985	1531	38.1	4596	2142
1× 400*	2.0	30.9	3888	1478	35.9	4461	2050
1× 500	2.2	36.8	4996	1902	41.8	5667	2574
1× 500*	2.2	34.5	4953	1861	39.5	5584	2492
1× 630	2.4	41.1	6294	2372	46.3	7084	3132
1× 630*	2.4	38.5	6164	2299	43.7	6878	3031
1× 800	2.6	45.7	7920	2592	50.9	8757	3789
