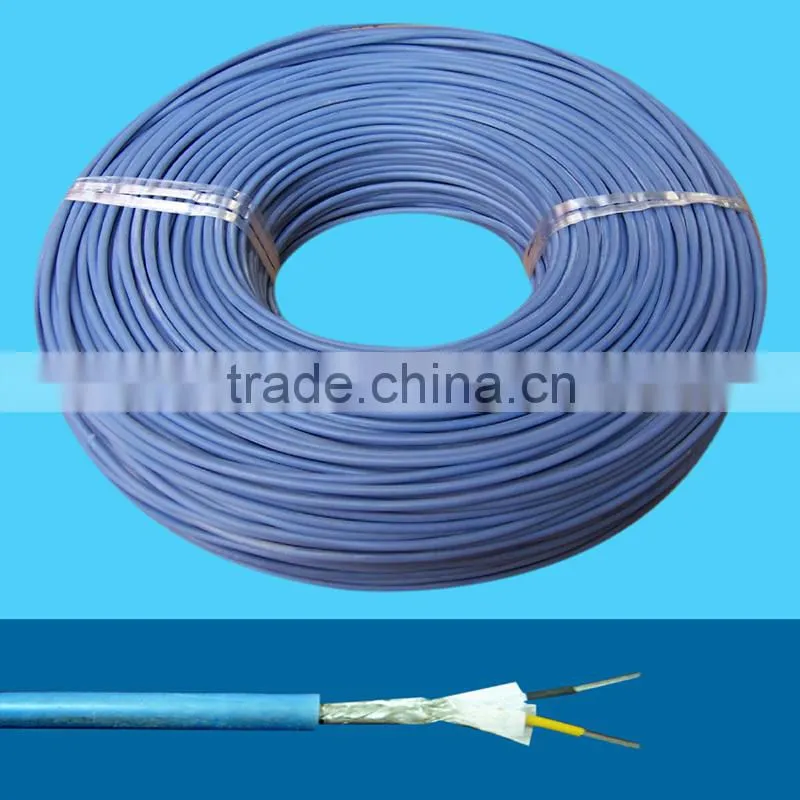

Plastic Insulated Control Cable 450/750KV

Plastic Insulated Control Cable 450/750KV thumbnail-1
Plastic Insulated Control Cable 450/750KV photo-1
US$ 1 - 500 MOQ: 1 Meter
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
XBF
Model Number:
KVV/KYJV,KVVP/KYJVP,KVVP2/KYJVP2,KVV22/KYJV22,KVV32/KYJV32,KVVR/KYJVR
Contact Supplier Request Quote Chat Now
Hebei New Baofeng Wire & Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name XBF
Model Number KVV/KYJV,KVVP/KYJVP,KVVP2/KYJVP2,KVV22/KYJV22,KVV32/KYJV32,KVVR/KYJVR
Insulation Material Other, PVC or XLPE
Type High Voltage
Application Underground
Conductor Material Copper
Jacket PVC

Specifications

1. good manufacturer with 30 years' experience
qualiy&competitive price
3.on time delivery
4.good after-sale service

Plastic Insulated Control Cable

Product standard



This product is manufactured according to GB9330 and enterprise standards.

Application



For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750V.



Operating characteristics



Rated voltages U0/U: 450/750V



1,   Conductor

2,   Insulation layer

3,   Tape

4,   Inner lining

5,   Copper tape armored

6,   Oversheath

Permissible Max. continuous operating temperature of conductor:



PVC insulated: 70℃;XLPE insulated: 90℃.



Upon short circuit (Max. Duration time 5s) the Max.



temperature of conductor not higher than:



PVC insulated: 160℃; XLPE insulated 250℃.



Ambient temperature of installation not less than 0℃.



Preferred permissible bending radium:



For non-armored cable, not less than 6 times of cable diameter;



For armored or copper-tape-screened cable, not less than 12 times of cable diameter;



For screened flexible cable, not less than 6 times of cable diameter.



Type, designation and application



Type

Designation

Main applications

KVV/KYJV

Copper conductor PVC/XLPE insulated PVC sheathed control cable

For fixed-laying indoors, in cable duct or conduit

KVVP/KYJVP

Copper conductor XLPE/PVC insulated PVC sheathed braid screened control cable

For fixed-laying indoors, in cable duct or conduit upon screen requirement

KVVP2/KYJVP2

Copper conductor PVC/XLPE insulated PVC sheathed copper tape screened control cable

For fixed-laying indoors, in cable duct or conduit upon screen requirement

KVV22/KYJV22

Copper conductor PVC/XLPE insulated PVC sheathed steel tape armored control cable

For fixed-laying indoors, in cable duct direct-buried, able to bear larger mechanical forces

KVV32/KYJV32

Copper conductor PVC/XLPE insulated PVC sheathed fine steel wire armored control cable

For fixed-laying indoors, in cable duct, conduit or well, able to bear larger mechanical forces

KVVR/KYJVR

Copper conductor PVC/XLPE insulated PVC sheathed control flexible cable

For laying indoors upon moveable requirement

KVVRP/KYJVRP

Copper conductor PVC/XLPE insulated PVC sheathed braid screened control flexible cable

For laying indoors upon moveable and screen requirement



 Type range



Type

Rated voltage V

Nominal cross-section of conductor(mm2)

0.5

0.75

1.0

1.5

2.5

4

6

10

No. of cores

KVV/KYJV

KVVP/KYJVP

450/750



2~61

2~14

2~10

KVVP2/KYJVP2



4~61

4~14

4~10

KVV22/KYJV22



         7~61

4~61

4~14

4~10

KVV32/KYJV32



19~61

7~61

4~14

4~10

KVVR/KYJVR

       4~61





KVVRP/KYJVRP

4~61

4~48







Note: 1) Preferred number of cores: 2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61.



2)The special types of fire-retardant, flame-resisting, low-fume and low-halogen, low-fume and non-halogen as well as acid-alkali-proof for these cables may be supplied upon requests.



Technical Data



   1) Conductors have three species: First (Solid conductor) (A), Second for fixed installation (B) (Stranded conductor),



and Third for moveable requirement (R) (stranded flexible conductor).



  2)The structure and D. C. resistance.



     3)The screen layer of cables shall be braided with copper wire or applied helically with copper tape.



Nominal cross-section mm2

Conductor structure

D.C. resistance of conductor at 20℃

species

No./Nomi. Diameter of a single wire mm

Untinned wire

Tinned wire

0.5

5

16/0.20

39.0

40.1

0.75

1

1/0.97

24.5

24.8

0.75

2

7/0.37

24.5

24.8

.

.

.









2.5

5

50/0.25

7.98

8.21

4

1

1/2.25

4.61

4.70

4

2

7/0.85

4.61

4.70

6

1

1/2.76

3.08

3.11

6

2

7/1.04

3.08

3.11

10

2

7/1.35

1.83

1.84

Calculated Data

No. ×Nom. cross-section mm2

Largest diameter of cables

Calculated weight of cables(kg/km)

KVV

KVVP

KVVP2

KVV22

KVV32

KVVR

KVVRP

KVV

KVVP

KVVP2

KVV22

KVV32

KVVR

KVVRP

2×0.75

8.0

9.3

—

—

—

—

—

72

114

—

—

—

—

—

2×1.0

8.3

9.6

—

—

—

—

—

81

124

—

—

—

—

—



.

.

.

48×1.5

30.2

31.2

29.2

32.6

36.7

31.1

32.1

1326

1487

1397

1890

2935

1352

1508

48×2.5

36.5

37.2

34.9

38.1

41.6

37.0

38.2

2070

2147

2097

2662

3843

2094

2178

52×0.5

—

—

—

—

—

23.9

24.7

—

—

—

—

—

634

763

52×0.75

.

.

.

25.3

26.3

24.6

26.6

30.0

26.1

27.1

898

1009

935



1920

912

1034







61×0.75

26.8

27.8

26.0

27.9

31.4

27.6

28.6

967

1087

1025

—

2084

991

1109

61×1.0

28.4

29.4

27.4

29.3

32.8

28.8

29.8

1186

1316

1256

1470

2314

1209

1348

61×1.5

33.5

34.7

32.3

35.0

39.1

34.4

—

1680

1837

1745

2241

3366

1698

—

61×2.5

40.2

41.4

37.9

41.1

43.6

40.7

—

2599

2749

2599

3175

4461

2612

—

Plastic Insulated Control Cable 450/750KVPlastic Insulated Control Cable 450/750KVPlastic Insulated Control Cable 450/750KVPlastic Insulated Control Cable 450/750KVPlastic Insulated Control Cable 450/750KV

 Plastic Insulated Control Cable 450/750KVPlastic Insulated Control Cable 450/750KVPlastic Insulated Control Cable 450/750KVPlastic Insulated Control Cable 450/750KV

If you have any questions, pls don't hesitate to contact me!
Morgan
Hebei New Baofeng Wire & Cable Co.,Ltd
ADD: Jinghe Industrial Zone, Hejian City, Hebei Province China
Web:  |Email: sales4 at
Tel: 86-531-58617867 |Mob:86-15098767265
Fax: 86-531-88015590 |Skype: morganren-china|QQ:1733109349
Website:   https://img13.fr-trading.com/        /english/about.asp
