Specifications
control cable manufactured according to GB9330 standards NBF cableTop manufacturer & best service
Control cable manufactured according to GB9330 standards NBF cable
Product standard
This product is manufactured according to GB9330 and enterprise standards.
Application
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750V.
Operating characteristics
Rated voltages U0/U: 450/750V

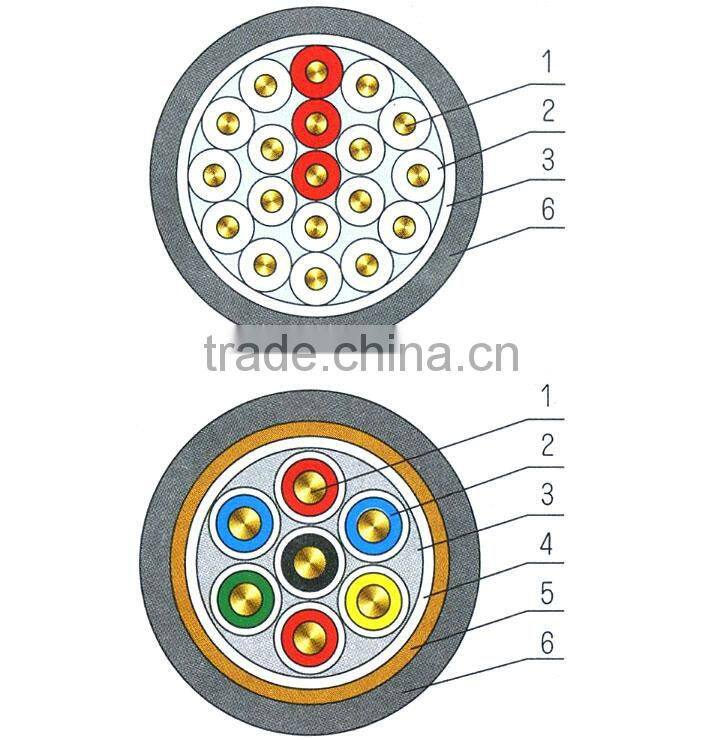

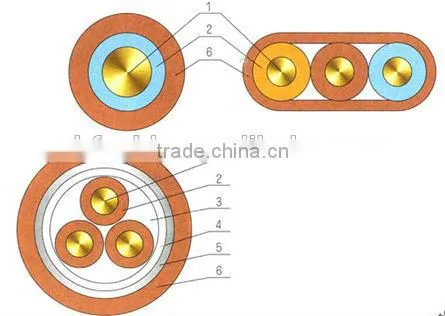

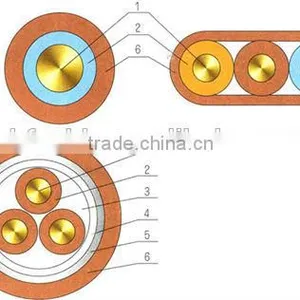

1, Conductor 2, Insulation layer 3, Tape 4, Inner lining 5, Copper tape armored 6, Oversheath |
Control cable manufactured according to GB9330 standards NBF cable
Type, designation and application
Type |
Designation |
Main applications |
KVV/KYJV |
Copper conductor PVC/XLPE insulated PVC sheathed control cable |
For fixed-laying indoors, in cable duct or conduit |
KVVP/KYJVP |
Copper conductor XLPE/PVC insulated PVC sheathed braid screened control cable |
For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVVP2/KYJVP2 |
Copper conductor PVC/XLPE insulated PVC sheathed copper tape screened control cable |
For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVV22/KYJV22 |
Copper conductor PVC/XLPE insulated PVC sheathed steel tape armored control cable |
For fixed-laying indoors, in cable duct direct-buried, able to bear larger mechanical forces |
KVV32/KYJV32 |
Copper conductor PVC/XLPE insulated PVC sheathed fine steel wire armored control cable |
For fixed-laying indoors, in cable duct, conduit or well, able to bear larger mechanical forces |
KVVR/KYJVR |
Copper conductor PVC/XLPE insulated PVC sheathed control flexible cable |
For laying indoors upon moveable requirement |
KVVRP/KYJVRP |
Copper conductor PVC/XLPE insulated PVC sheathed braid screened control flexible cable |
For laying indoors upon moveable and screen requirement |
Type range
Type |
Rated voltage V |
Nominal cross-section of conductor(mm2) |
|||||||
0.5 |
0.75 |
1.0 |
1.5 |
2.5 |
4 |
6 |
10 |
||
No. of cores | |||||||||
|
KVV/KYJV KVVP/KYJVP |
450/750 |
|
2~61 |
2~14 |
2~10 |
||||
KVVP2/KYJVP2 |
|
4~61 |
4~14 |
4~10 |
|||||
KVV22/KYJV22 |
|
7~61 |
4~61 |
4~14 |
4~10 |
||||
KVV32/KYJV32 |
|
19~61 |
7~61 |
4~14 |
4~10 |
||||
KVVR/KYJVR |
4~61 |
|
|
||||||
KVVRP/KYJVRP |
4~61 |
4~48 |
|
|
|||||
Note: 1) Preferred number of cores: 2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61.
2)The special types of fire-retardant, flame-resisting, low-fume and low-halogen, low-fume and non-halogen as well as acid-alkali-proof for these cables may be supplied upon requests.
Technical Data
1) Conductors have three species: First (Solid conductor) (A), Second for fixed installation (B) (Stranded conductor),
and Third for moveable requirement (R) (stranded flexible conductor).
2)The structure and D. C. resistance.
3)The screen layer of cables shall be braided with copper wire or applied helically with copper tape.
Nominal cross-section mm2 |
Conductor structure |
D.C. resistance of conductor at 20℃ |
||
species |
No./Nomi. Diameter of a single wire mm |
Untinned wire |
Tinned wire |
|
0.5 |
5 |
16/0.20 |
39.0 |
40.1 |
0.75 |
1 |
1/0.97 |
24.5 |
24.8 |
0.75 |
2 |
7/0.37 |
24.5 |
24.8 |
0.75 |
5 |
24/0.20 |
26.0 |
26.7 |
1.0 |
1 |
1/1.13 |
18.1 |
18.2 |
1.0 |
2 |
7/0.43 |
18.1 |
18.2 |
1.0 |
5 |
32/0.20 |
19.5 |
20.0 |
1.5 |
1 |
1/1.38 |
12.1 |
12.2 |
1.5 |
2 |
7/0.52 |
12.1 |
12.2 |
1.5 |
5 |
30/0.25 |
13.3 |
13.7 |
2.5 |
1 |
1/1.78 |
7.41 |
7.56 |
2.5 |
2 |
7/0.68 |
7.41 |
7.56 |
2.5 |
5 |
50/0.25 |
7.98 |
8.21 |
4 |
1 |
1/2.25 |
4.61 |
4.70 |
4 |
2 |
7/0.85 |
4.61 |
4.70 |
6 |
1 |
1/2.76 |
3.08 |
3.11 |
6 |
2 |
7/1.04 |
3.08 |
3.11 |
10 |
2 |
7/1.35 |
1.83 |
1.84 |
Control cable manufactured according to GB9330 standards NBF cable
construction site
Certificate
workshop
|

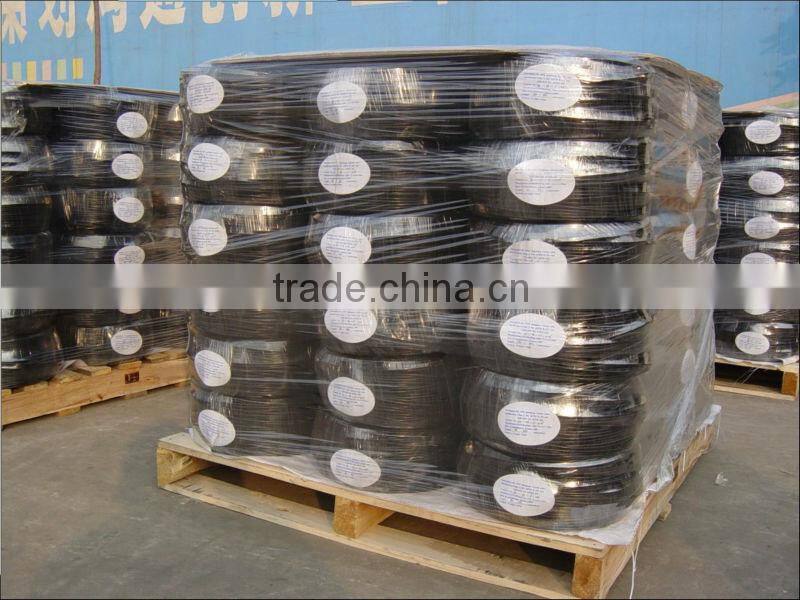

Package & Shipping
