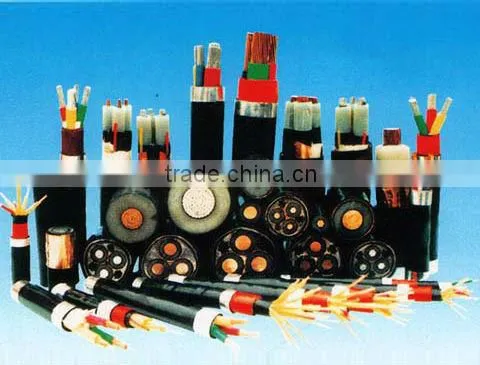

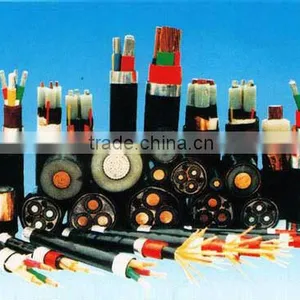

medium power cable made in china
- 0 per Month
- tianjin port
- T/T
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | New baofeng | Model Number: | medium power cable made in china |
Insulation Material: | XLPE | Type: | Medium Voltage | Application: | Construction |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Specifications
medium power cable made in china1. Has passed CE, ISO, CCC, PCCC...Certificate
2. Sell well in Europe, America, Asia .....
Detailed Product Description
medium power cable made in china
1.Has passed CE, ISO, CCC, PCCC...certificate
2.sell well in Europe, America, Asia and Africa.
3. Standard GB, IEC, AS
1.Product standard
GB/T12706-2002 (IEC60502-1983)
Applications
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6KV/6KV~26/35KV.
Operating characteristics
Rated power-frequency voltage U0/U: 3.6/6KV~26/35KV.
Max. Permissible continuous operating temperature or conductor:90°C.
Max. short-circuit temperature of conductor shall not exceed 250°C. (5s maximum duration)
The ambient temperature under installation should not below 0°C.
The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a three-core cable should not less than 15 times of the cable diameter.
Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used, and is expressed in the form of U0/U (Um) KV. Where:
U0—The rated power-frequency voltage between conductor and earth or metallic screen, for which the cable designed;
U—The rated power-frequency voltage between conductors, for which the cable designed;
Um—The maximum value of the “highest system voltage” for which the equipment may be used.
2.specifications and names
Type | Designation | |
Copper conductor | Aluminium conductor | |
YJV | YJLV | XLPE insulated and PVC sheathed power cable |
YJV22 | YJLV22 | XLPE insulated, steel tape armored and PVC sheathed power cable |
YJV23 | YJV23 | XLPE insulated, steel tape armored and PE sheathed power cable. |
YJV32 | YJLV32 | XLPE insulated, steel wire armored and PVC sheathed power cable. |
YJV33 | YJV33 | XLPE insulated, steel wire armored and PE sheathed power cable. |
3.Production Range of cable
TYPE | Number of cores | Rated Voltage (U0/U)kV | |||
6/6 | 6/10 8.7/10 | 8.7/15 12/20 | 18/20 21/35 26/35 | ||
Nominal cross-section area of conductor mm2 | |||||
YJV YJV32(42) | 1 | 25~630 | 25~630 | 25~400 | 50~500 |
YJLV YJLV32(42) | 35~630 | 35~630 | 35~300 | 50~630 | |
YJV22 | 25~500 | 25~500 | 35~500 | - | |
YJLV22 | 35~500 | 35~500 | 35~500 | - | |
YJV YJV22 | 3 | 25~300 | 25~300 | 35~300 | 50~300 |
YJLV YJLV22 | 35~300 | 35~300 | 35~300 | 50~300 | |
YJV32 YJLV32 | 25~300 | 35~300 | 35~300 | 50~300 | |
YJV42 YJLV42 | 35~185 | 35~185 | 35~150 | 50~300 |
*Note:The single-core armoured cables are used for d.c.system only, as for a.c.system, non-magnetic aromour material should be used or a magnetic isolation should be applied.
