Aluminum Stranded Wire and Aluminum Conductor Steel-Reinforced (ACSR)

Specifications

Trademark: New Baofeng
Packing: Wooden Drums With Iron Frame
Origin: Hebei China

Aluminum Stranded Wire and Aluminum Conductor Steel-Reinforced (ACSR)



1.Basic Info.



Model No: LJ ,LGJ,LGJF,JL,JLHA2/JLHA1

Type :Bare

Conductor Material : Aluminum Clad Steel

Conductor Type : Solid

Insulation Material : Bare

Application: overhead

Insulation Material 2: PVC or XLPE

Conductor: copper clad steel or ccam or copper clad aluminum or aluminum or copper



Additional Info.

Trademark :New Baofeng

Packing : Wooden Drums with Iron Frame

Origin :Hebei ,China





Product Description

(ACSR)Aluminum Stranded Wire and Aluminum Conductor Steel-reinforced
1. Application: The Aluminum Stranded Wire and Aluminum Conductor Steel-reinforced apply for electric transmission line overhead.
2. Name: Aluminum stranded wire, Aluminum conductor steel-reinforced, Anticorrosive aluminum conductor steel-reinforced, Aluminum stranded wire, Aluminum alloy stranded wire, Aluminum conductor steel-reinforced, Anticorrosive aluminum conductor steel-reinforced, Aluminum alloy conductor steel-reinforced, Aluminum alloy conductor steel-reinforced, Aluminum conductor aluminum alloy reinforced, Aluminum conductor aluminum coated steel-reinforced, Aluminum alloy conductor aluminum coated steel-reinforced, Steel stranded wire, Aluminum coated steel stranded wire.



Aluminum Stranded Wire
Nominal cross-sectional area mm 2	Construction No. /Diameter mm	Calculated cross-section   mm 2	Overall diameter mm	D. C. resistance of conductorNot more than Ω /km	Calculated tensile force N	Appro. Weight kg/km	Delivery length m
16	7/1.70	15.89	5.1	1.802	2840	43	4000
25	7/2.15	25.41	6.4	1.127	4355	69	3000
35	7/2.50	34.36	7.5	0.8332	5760	94	2000
50	7/3.00	49.48	9.0	0.5786	7930	135	1500
70	7/3.60	71.25	10.8	0.4018	10950	195	1250
95	7/4.16	95.14	12.4	0.3009	14450	260	1000
120	19/2.85	121.21	14.2	0.2373	19420	333	1500
150	19/3.15	148.07	15.7	0.1943	23310	407	1250
185	19/3.50	182.80	17.5	0.1574	28440	503	1000
210	19/3.75	209.85	18.7	0.1371	32260	577	1000
240	19/4.00	238.76	20.0	0.1205	36260	656	1000
300	37/3.20	297.57	22.4	0.09689	46850	820	1000
400	37/3.70	397.83	25.9	0.07247	61150	1097	1000
500	37/4.16	502.90	29.1	0.05733	76370	1387	1000
630	61/3.63	631.30	32.6	0.04577	91940	1744	800
800	61/4.10	805.36	36.9	0.03588	115900	2225	800

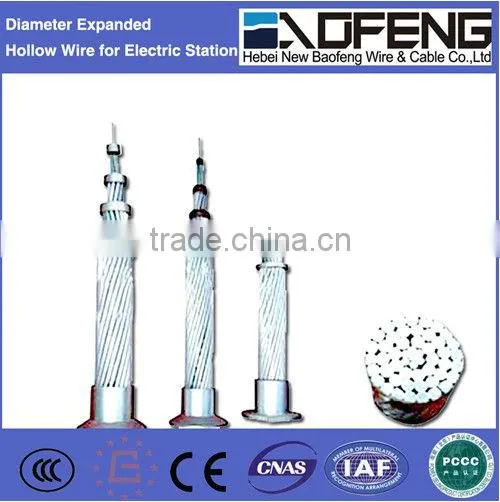

Reference Pictures:
