vacuum hot press machine photo machine
Main introduction of Vacuum hot press machine
Vacuum Hot Press Machine has many different functions. It is used not only to mount traditional Chinese painting, oil painting, landscape painting, and handicraft picture but is also used widely on advertising pictures, wedding pictures, personal portraits, pictures of kids, posthumous portraits and occasion pictures and so on. Vacuum Thermo-mounting Machine is suitable for most pictures of different types and allows a batch of landscape pictures, handicraft pictures, and famous paintings to sell.
Vacuum Hot Press Machine are mainly made from heat dissolved glue and white glue. It must be a vacuum condition to form a high pressure environment so the water in the bubbles and glues can be completely absorbed and the picture and board are permanently sticked together. This method helps to make sure that the products do not shrink, expand, change shape; separate and the glues are sticked evenly on the materials.
Characteristics :
1. Compact design and operate easily.
2. The digital control system could control the temperature and time accurately. By pressing one button, the machine could operate automatically without any worries. That helps to increase the working efficiency and provide high-quality products. The final products could be finished in a few minutes.
3. With the help of sealed multi-angle infrared heating design, the machine could heat the products evenly.
4. Using silicon chips for the underside of the machine. Compared with rubber, silicon is much more durable and could rust-proof and scratch-proof.
5. High sealability.
6. Separating the unique heating plate with the sealed glue board.
7. With unique lock

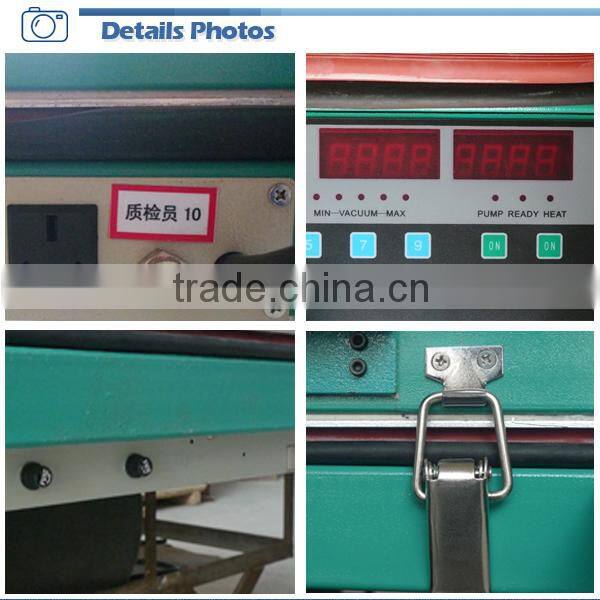

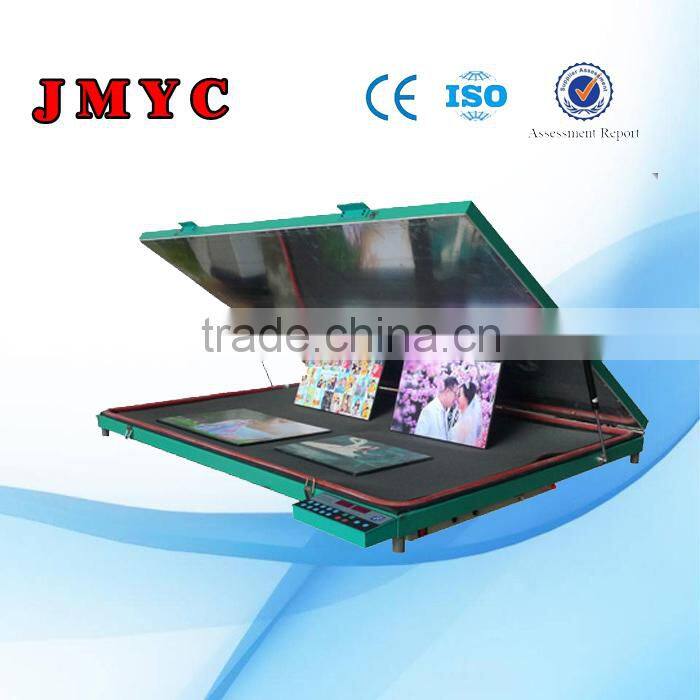

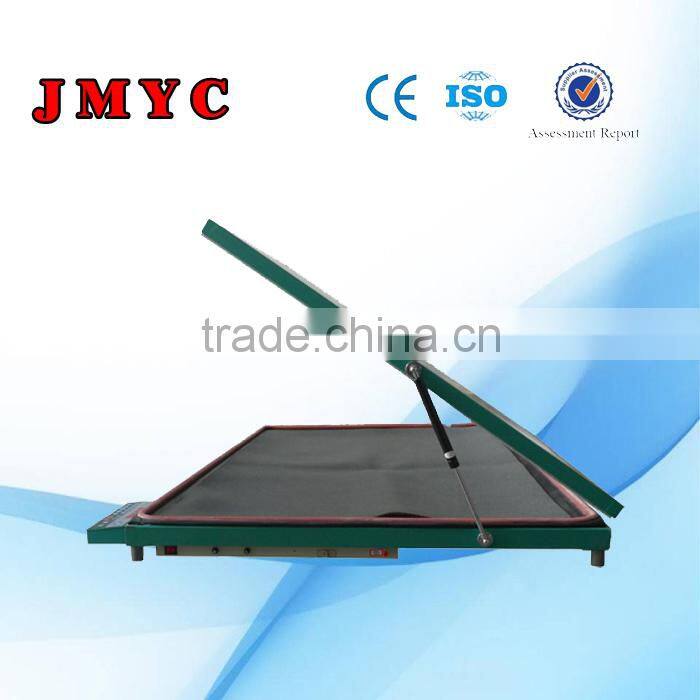

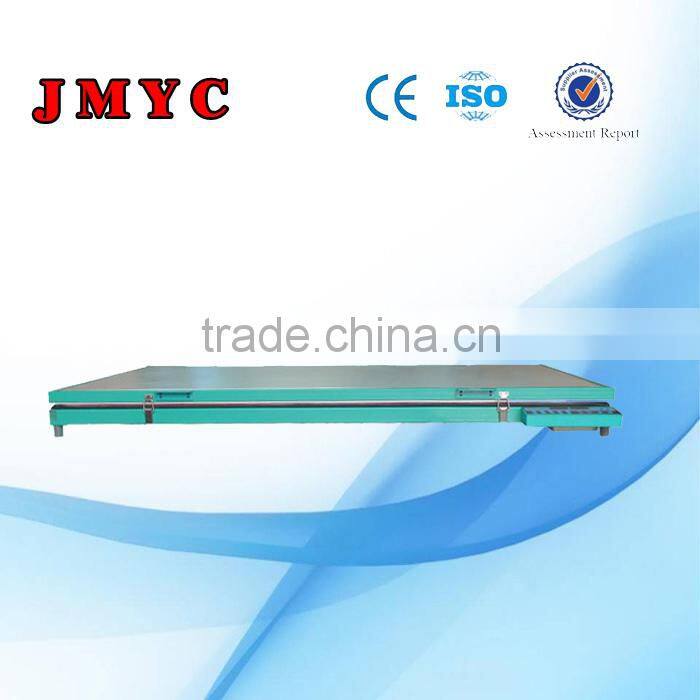

Machine Photos of Vacuum hot press machine
Parameters
Machine model |
KC-VH40 |
KC-VH50 |
KC-VH60 |
KV-VH68 |
||||||
Product Type |
Post processing for crystal wood board, photo wood board, photo, oil painting, picture etc. |
|
||||||||
Mounting size |
1020*740mm |
1310*990mm |
1530*1080mm |
1720*1080mm |
|
|||||
Gross Weight |
93kg |
110kg |
133kg |
148kg |
|
|||||
Package size |
1280*1080*230mm |
1520*1330*200mm |
1640*1420*200mm |
1940*1410*210mm |
|
|||||
Mounting thickness |
0.1~30mm |
|
||||||||
Mounting time |
1~15mins (time could be adjustable) |
|
||||||||
Temperature range |
50°C~120°C |
|
||||||||
Vacuum pressure |
0.07~0.9mpa |
|
||||||||
Voltage |
220V |
|
||||||||
Power |
2.5kw |
|
||||||||
Finished Products of Vacuum hot press machine
Packaging
We would pack the machine in the shrong export woodern case which can withstand the rough handling during the long distant ocean transportation
Payment
We usually accept payment terms :T/T,WESTERN UNION,L/C.and trade terms:EXW. FOB.CFR.CIF .FCA.CIP. CPT. ,and so on.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.) or FCA,
We arrange the local shipment,which’s easy for you to control the transportation cost.
