CE multi roller uv coating machine
Machine brief introduction

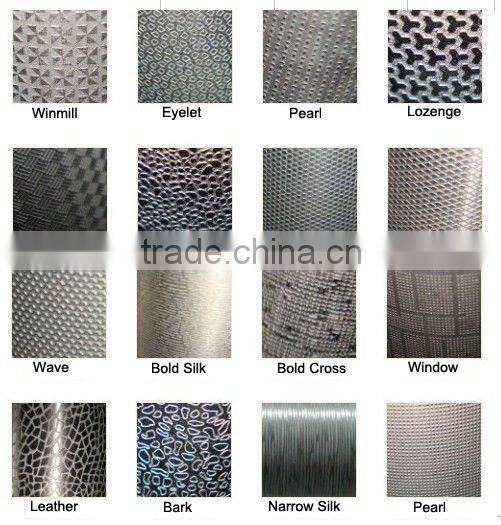

This brand-new multi-roller UV coating machine have four different embossing rollers in one machine.
You can change the rollers easily by twist the screw.
It's the best choice for the photo studio to pursuit of efficiency and quality.
Machine main introduction
UV coating machines which used for laser print, ink print, Art paper and stick paper ,after coating the oil on the surface , the photos will be water proof,
moisture-proof, durable, ultraviolet-proof .The pictures can be coated many times and wont be damaged. The UV liquid would stick on the surface of the pictures and it is hard to separate
after solidifies under ultraviolet rays. There are two results to coating pictures. One is called light which shows bright and clear images.
Another one is called matte which shows elegant. These two results of coating are now very popular for photo print, typing, portraits, spurts draws,
book covers, Spring Festival pictures, calendars, cards, product samples and boxes.
Advantages
1. Adopt turbine worm design, ensure each rubber roller rolling in and out simultaneously, making the thickness of the UV liquid even, no bubble and scrapes
2.Ultraviolet light source is sealed and isolated, with strong internal heating , so the UV liquid solidify much more faster.
3.Automatic intelligence cycle system, reducing the consumption of liquid. And no need to supply the liquid manually all the time. UV liquid can be
re-used hence less wastes.
4.For Unity Albums, UV liquid has a incomparable advantage as it not only decrease the thickness of pictures but also cause no folds at the pressing
step and lamination film can hardly achieve this.
Cost analysis:
The thickness of the UV liquid can be adjusted during coating.
Normally the UV liquid is 3-5g/m2 and it can be diluted by alcohol. One kilogram of UV liquid can coat an area of 300 m2 pictures, which means that the actual cost is 0.3 RMB/m2
to 0.5 RMB / m2. The prime cost for cold lamination is 7.5RMB/m2; the prime film cost for inkjet printer machine is 3-5 RMB/m2. Hence buying a UV coating machine is a machine that earns money.

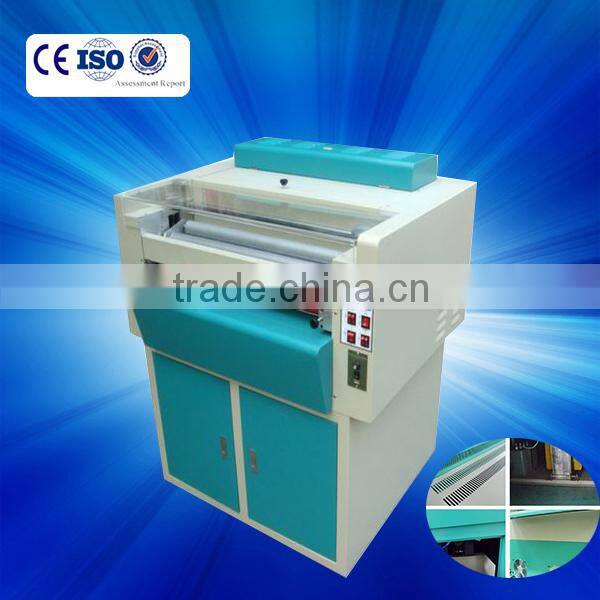

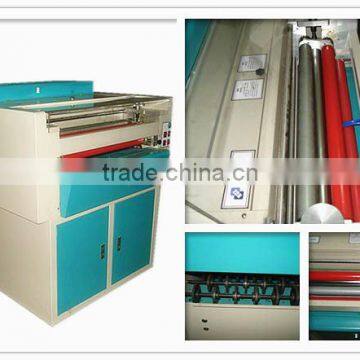

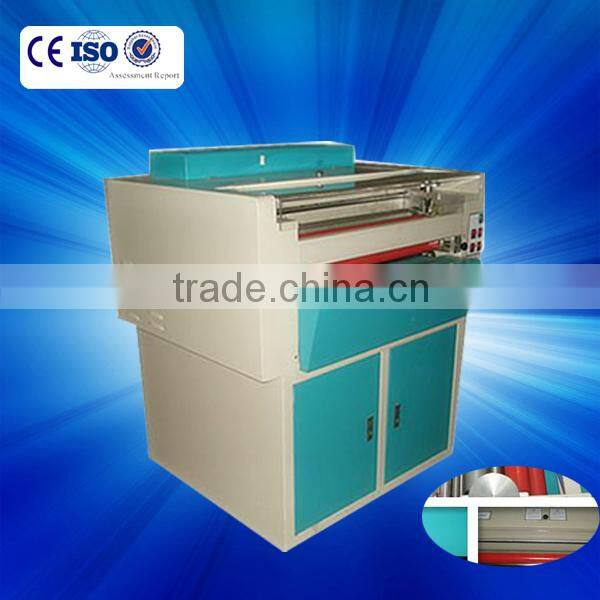

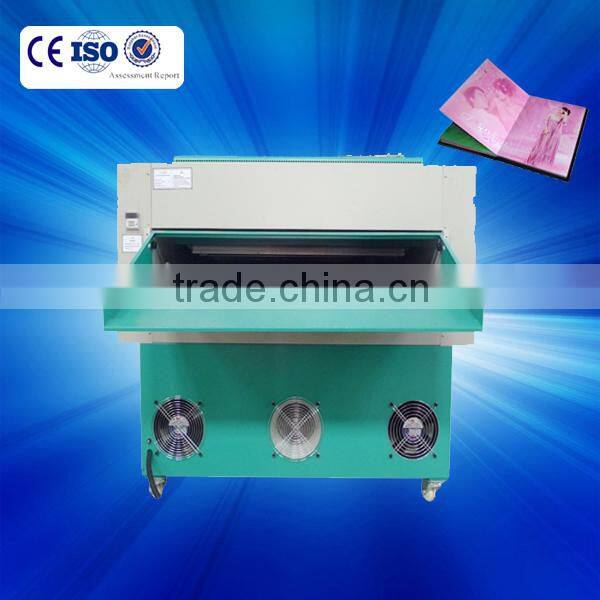

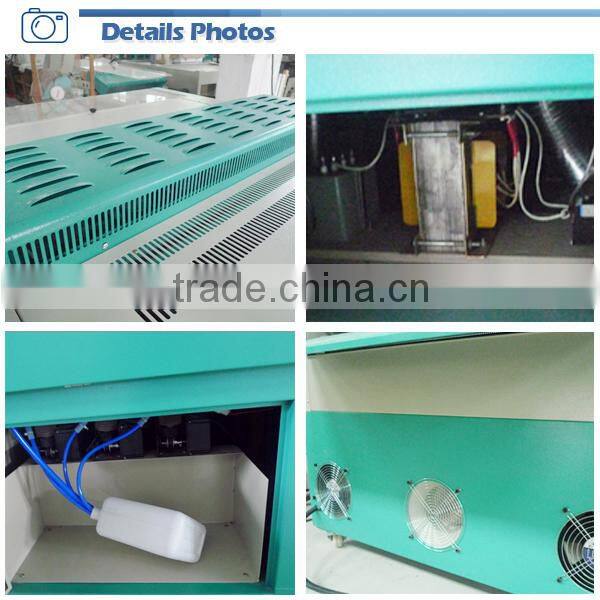

Machine Photos
Parameters
| 14 inch Multi-Roller UV Coating Machine | |||||
| Coating Width:320mm | Embossing Thickness:0.2~2mm | ||||
| Average Speed:7.7meters/min | Cost Efficiency:0.4~0.6yuan/square meter | ||||
| Change Roller Speed:2minutes | Mode of Operation:Electric,UV curing | ||||
| Voltage:220V | Power:3KW | ||||
| Motor:220V 30W(20k) adjustable motor | UV Lamp:2KW 300mm(length) | ||||
| UV Lamp Feature:Temperature Control Protection Device |
With Pedestal or Not: Yes | ||||
| Embossing Roller:Silica Gel | Reflector:Alloy | ||||
| Fan:Copper coil,Dual ball bearing | Dustproof Cover:Transparent ACRYLIC | ||||
| N.W:200kg | G.W:245kg | ||||
| Machine Material:A3 Metal | Machine Size:610*900*1300mm | ||||
| Packing:Plywood Case | Packing Size:650*930*1370mm | ||||
| Feature:One machine with 4 different pattern rollers.It's very fast to change the roller.High efficient,and quality guarantee | |||||
| If you want to get more information, please contact our salesperson. | |||||

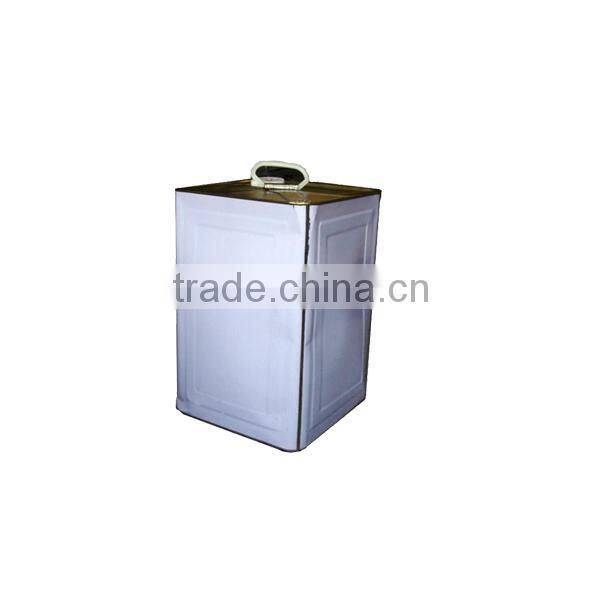

Material: UV liquid Finished products

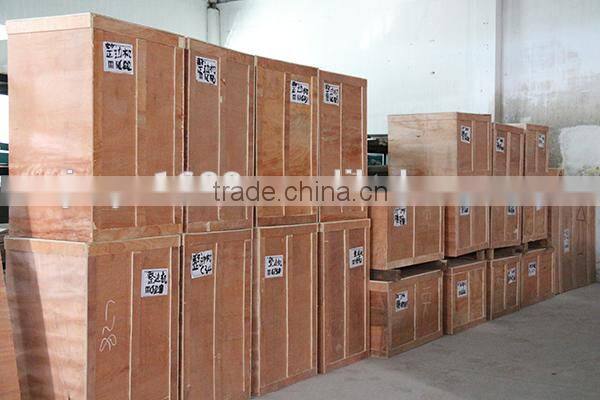

Packing
We would pack the machine in the shrong export woodern case which can withstand the rough handling during the long distant ocean transportation
Shipment
We usually accept payment terms :T/T,WESTERN UNION,L/C.and trade terms:EXW. FOB.CFR.CIF .FCA.CIP. CPT. ,and so on.
Advantage
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.) or FCA,
We arrange the local shipment,which’s easy for you to control the transportation cost.
We would pack the machine in the shrong export woodern case which can withstand the rough handling during the long distant ocean transportation
Good after-sales
1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.

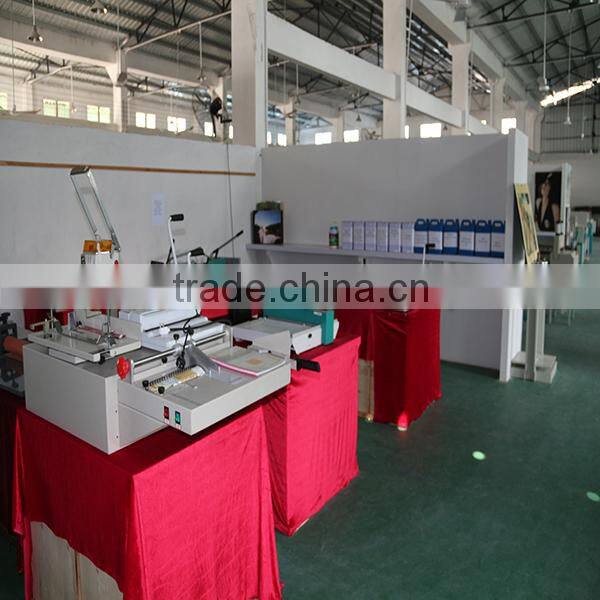

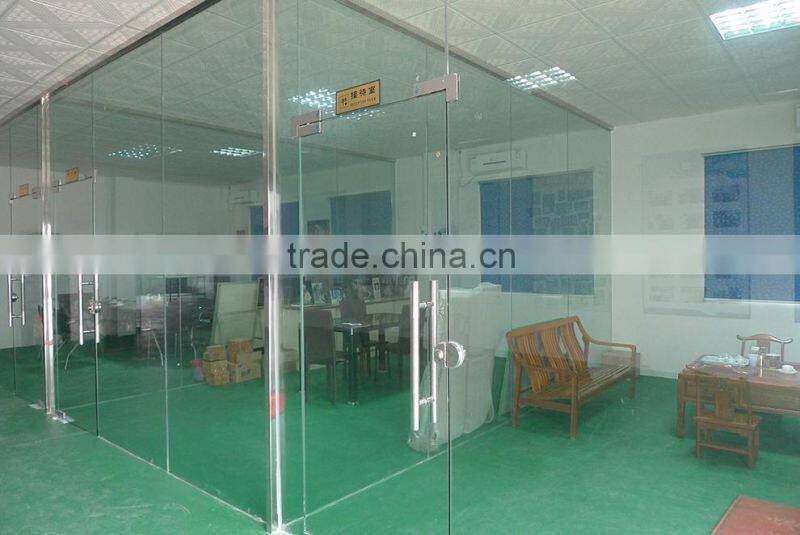

Company Information
We are professional finishing equipment manuafcturer since 2003
We believe our products will provide you with great business benefits and advantage.
Our Faith: Honesty based quality first and service oriented!
Our Aim: To help agents and distributors create as much benefit as we can!
To help Customer do excellent jobs with our machines!
