High efficiency China rice mill bucket elevator
High efficiency China rice mill bucket elevator
Introduction:

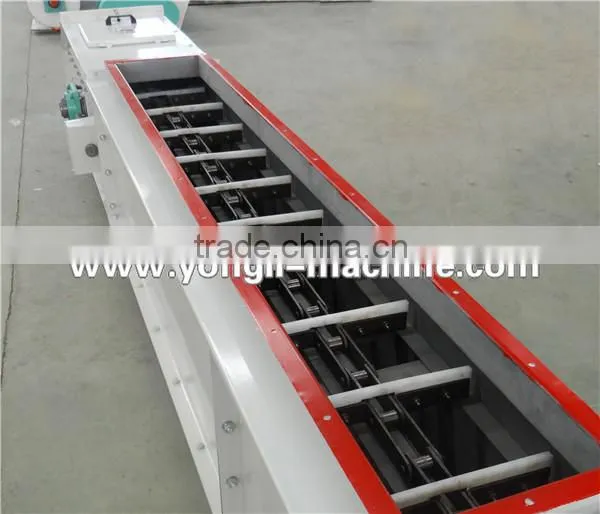

Chain drag conveyor is a kind of measuring equipment for feeding control, dynamic measuring and continuous conveying bulk material and powder.
It controls the flow amount and flow direction of the material passing the screw conveyor according to technical requirements to realize automatic management. Our chain drag conveyor can be widely used in building materials, chemicals, coal, ports, ceramics, food, and other industries.
There are four main kinds of conveying equipments for you reference:

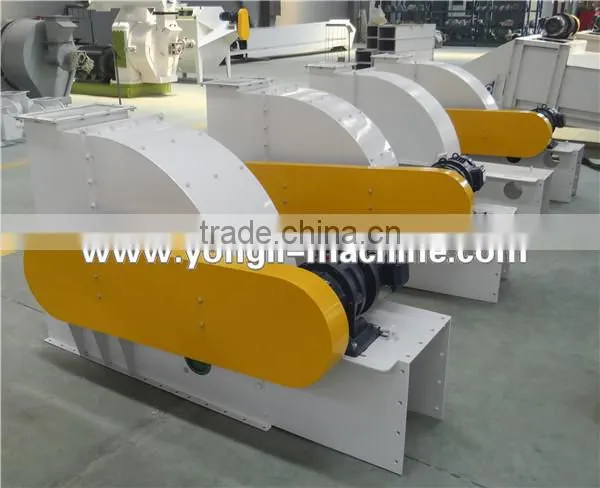

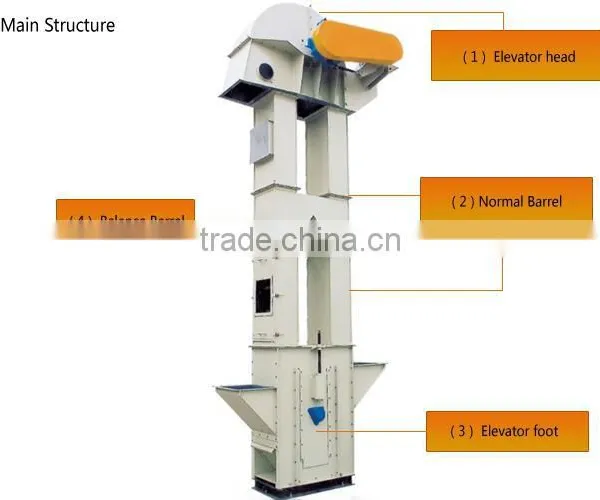

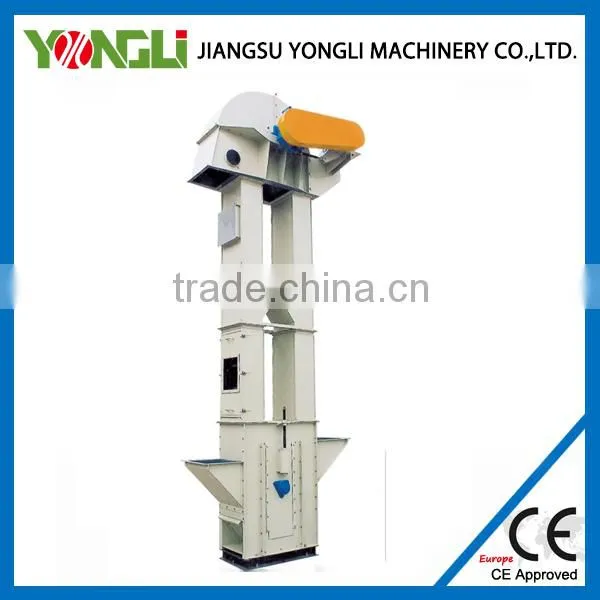

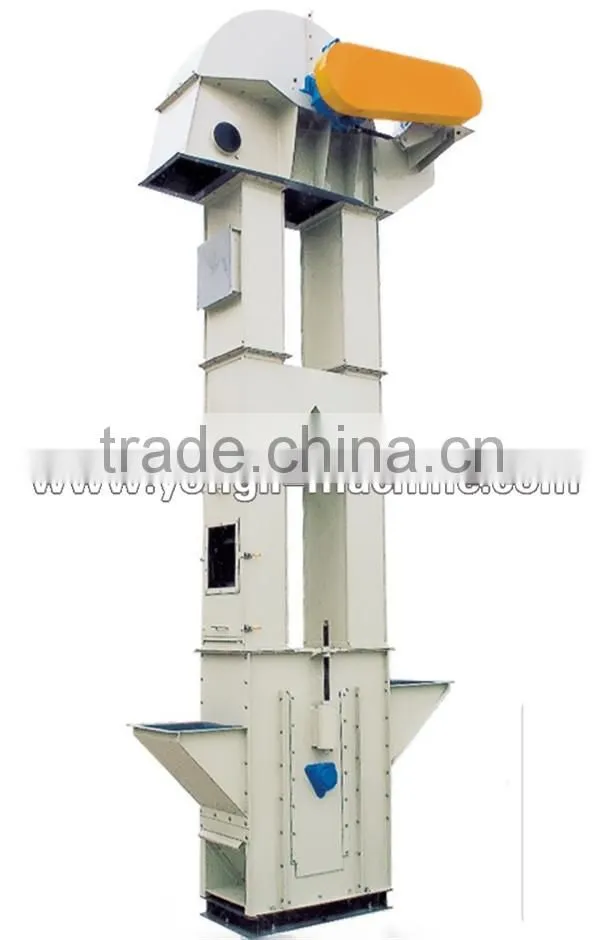

1.Bucket Elevator(TDTG Series)
(a)Technical Parameters
| Model |
TDTG 36-13 |
TDTG 36/18 |
TDTG 36/23 |
TDTG 36/28 |
TDTG 50/23 |
TDTG 50/28 |
TDTG 60/30 |
TDTG 60/33 |
TDTG 80/46 |
TDTG 100/33*2 |
TDTG 100/47*2 |
| Capacity(t/h) | 5-8 | 10 | 15 | 20 | 25-40 | 40-60 | 60-100 | 80/130 | 100-180 | 150-200 | 300-400 |
(b)Features
- Equipped with explosion relief port, it can prevent dust explosion and ensure safety.
- Adopt anti-back device, which prevent product blockage caused by equipment stoppage.
- Adopt EP belt, low extendibility, endurable and reliable.
- Feeding could be in both shaft-end and upwards direction.
- Adjusting plate adopts sealing treatment, no leakage of product when tensioning the belt by screw device.
- Middle casing adopts specialized edge-meshing combination process, with high strength and good sealing.
- Optional with off-tracking alarm and speed monitor system.
- Compact struction, beautiful appearance, high output and high conveying capability.
- Rubber convering technology is adopted for head pulley to increase friction coefficient and prevent belt from slipping.

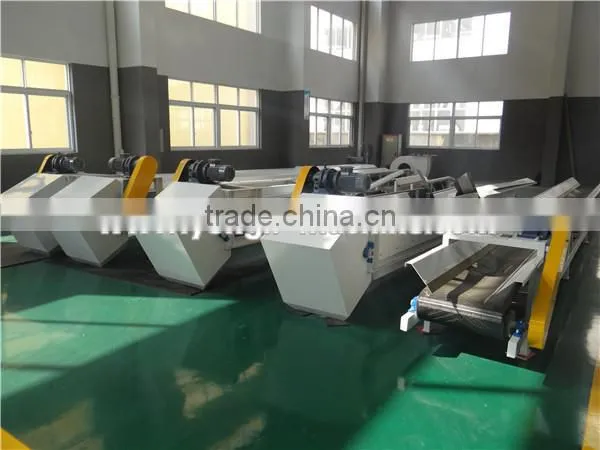

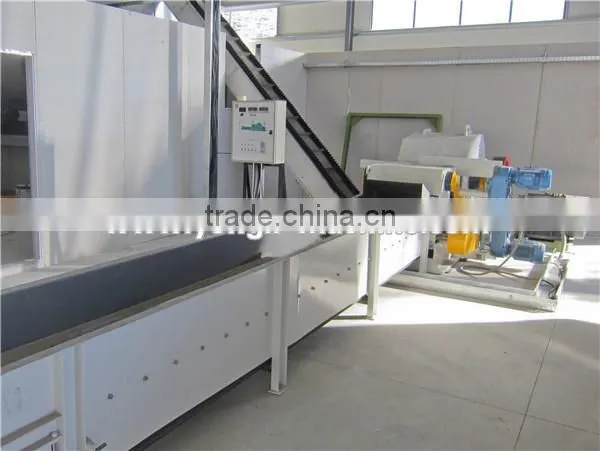

2.U-shaped Chain Conveyor(TGSU Series)
- "U" shaped trough,scrapers finely made of undustrial plastic with excellent wear resistant performance.
- Conveyor body :4mm carbon steel.
- Cover plate:2mm carbon steel;40Mn high strength chain,ultra high molecular weight polyethylene scraper;jam alarm and stall alarm.
- Self-cleaning type used for horizontally conveying powder and granular materials.
- Low noise.,little material residue,long service time.

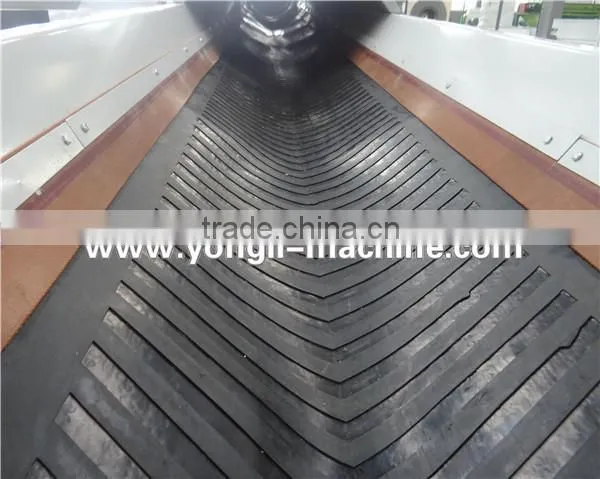

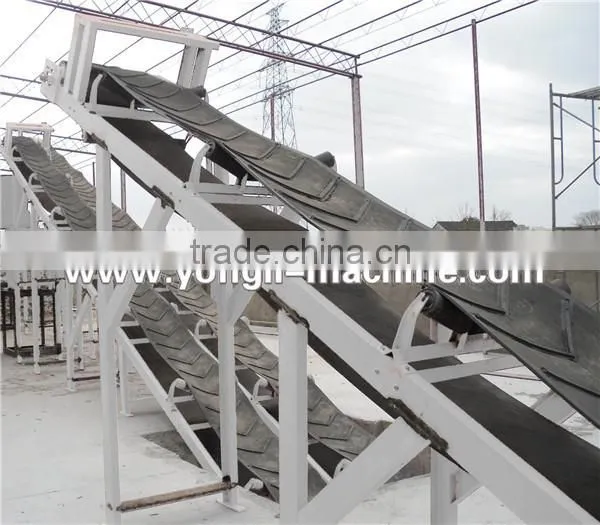

3.Belt conveyor
- A continuous conveyor
- Transport a large number of materials in horizontal direction or small inclined direction.
- Increase productivity,Reduce production costs & labor intensity.

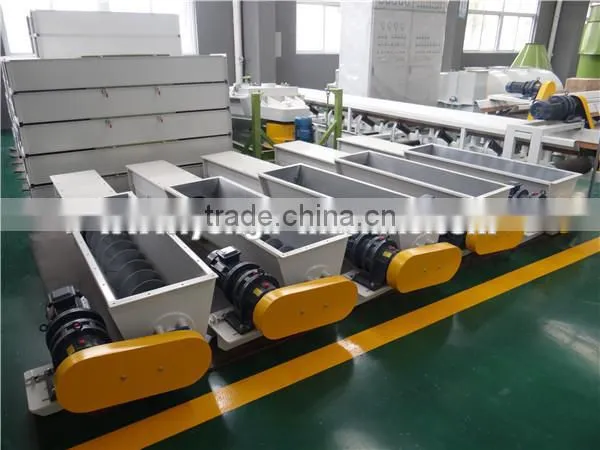

4.Screw Conveyor(TLSS Series)
- Seamless steel pipe for main shaft, solid shaft cylinder 3mm steel for convey shaft.
- Blade made by 4mm steel UCF shaft end.
- Equipped with a stock sealing device added at the discharger end.

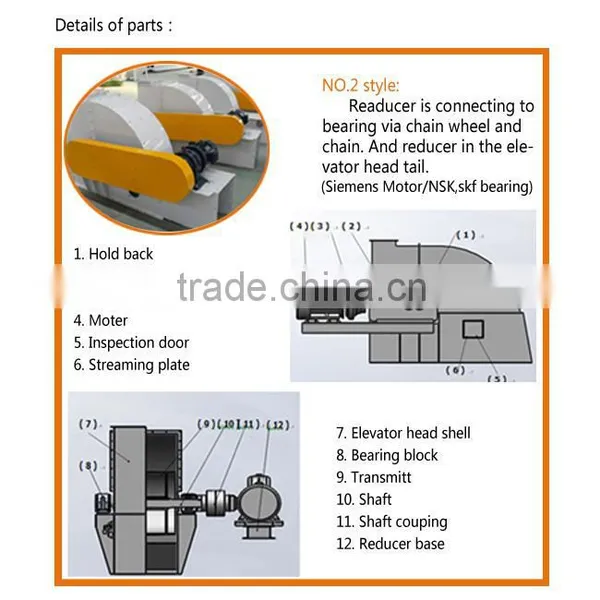

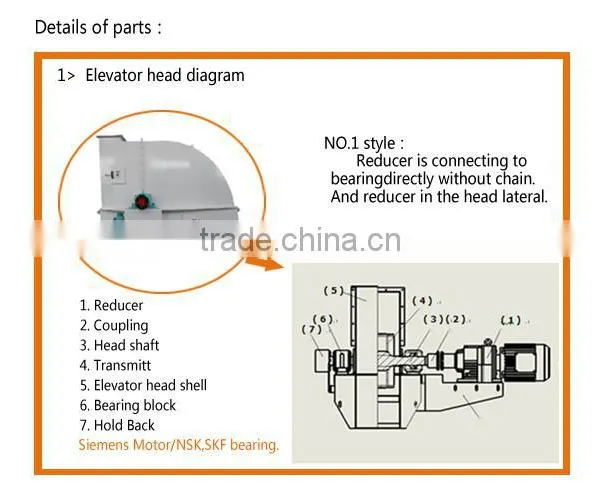

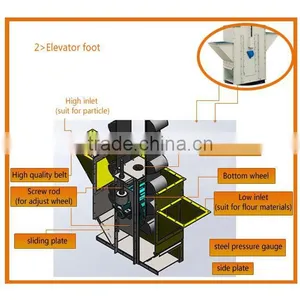

spare parts:

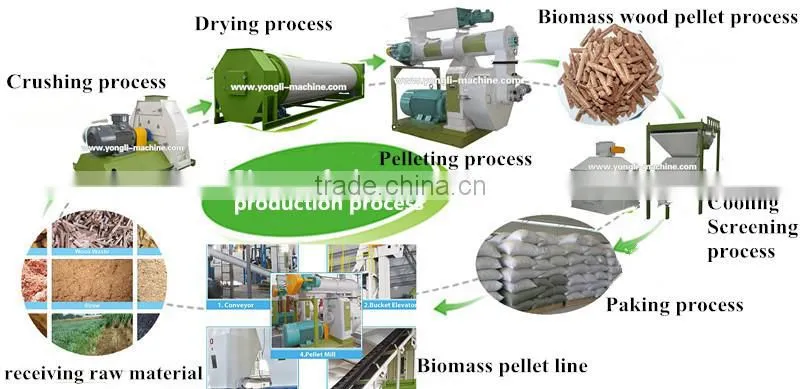

Related Production line
Peeling process, Chipping process, Drying process, Grinding process, Pelletizing process, Cooling process and Packaging process.
It will be different according to different raw material,mositure content and size.The whole process is highly automatically controlled.
- Packaging: Depending on customers' requirement,such as iron case or iron pallet etc.

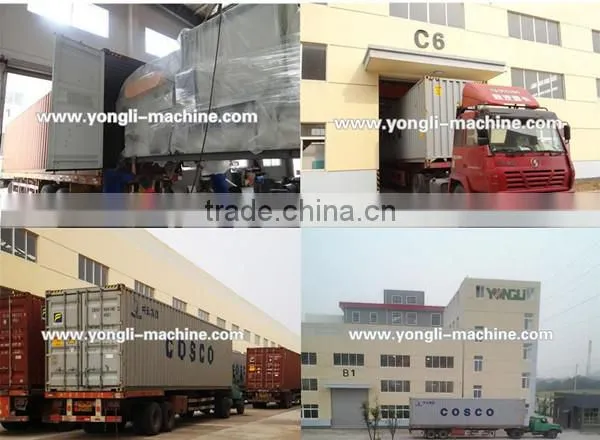

- Shipping: When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
About us
Business type: manufacturer, trading company
Location: Changzhou, Jiangsu, China(mainland)
Year Established: 2003
Company certifications: ISO9001, CE, SGS
Main products:
Chipping line and pelletizing line for biomass and feed, includes pellet mill, hammer mill, drum dryer, wood chipper...
Jiangsu Yongli Machinery Co., Ltd. is a qualified manufacturer which specializes in developing, producing and marketing top-class machinery equipment. Now we focus on pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, etc. and turn key projects.
The advantages of our quick installation, such as beautiful appearance, flexible operation, stable performance and low operational cost are accepted by more and more customers. We own an outstanding R&D team and a strict & scientific management system, which enable us to supply high quality & convenient turn-key projects to all of our customers.
We have successfully produced over 1,000 turn key projects to clients, which make us one of the biggest manufacturers and the most powerful factories for biomass machinery. We have already sold our machines to over 80 countries, they are: Latvia, Russia, Slovenia, France, Italy, Tunisia, New Zealand, Australia, Colombia, Brazil, Uruguay, Vietnam, Thailand, Malaysia, Singapore, Indonesia, Algeria, the UAE, Kazakhstan, etc. Some of our clients have become our indispensable agents and cooperate with us very well.
Our company view
Factory
Warehouse
Why choose us?
Advantages we have:
Experienced biomass and feed pellet line related supplier for over 12 years.
- Professional sales and engineers team for your service.
High quality as all of the products have approved CE&ISO9001&SGS certifications
- Use most up-to-date CNC Machine Center to ensure the quality standards.
Already supplied over 1,000 turn-key projects with great satisfaction.
Our customers
Welcome to contact us!
In order to give you the right quotation and latest catlog in time,pls tell me answer of the following questions!
Welcome to visit our factory!
We will provide you our best equipments with the reasonable price to meet your requirements.
If you need any further information,do not hesitate to contact us !
