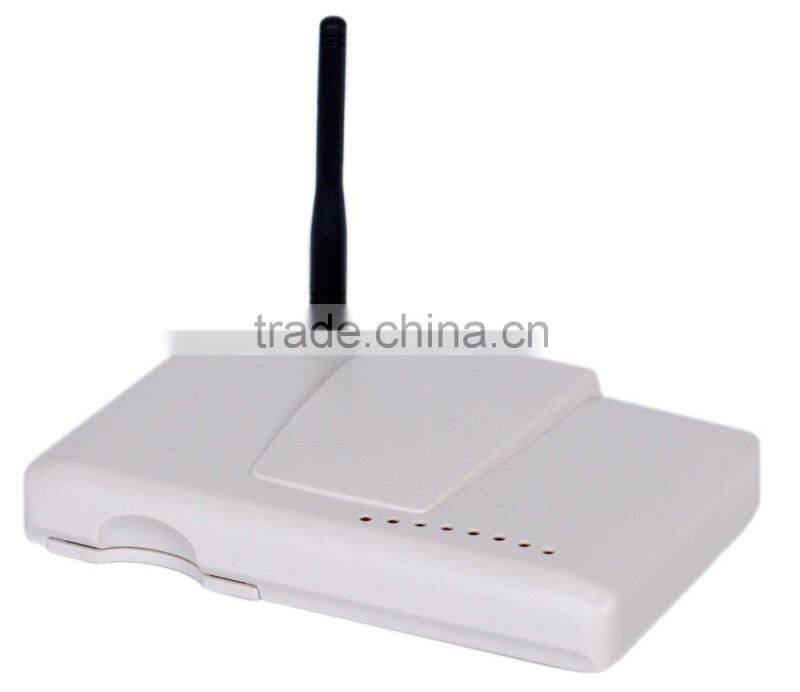

CDMA FWT-8828 Ruim or non-ruim Support 800/1900Mhz with 1 port
- 6000 Unit / Units per Month
- shenzhen
- Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Etross | Model Number: | Etross-8828 |
Type: | CDMA | Working Frequency: | 800/1900MHz | Port Number: | 1 |
Product Description
Specifications
-CDMA FWT
-CDMA 800/1900Mhz
-Ruim Support Or Non Ruim support
-Steady module
-reliable design
Etross-8828 is a CDMA to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out from the CDMA network. This device can both receive and make calls.
Material | ABS (Acrylonitrile Butadiene Styrene) |
|
Dimension | 170mm×118mm×30mm | Excluding antenna |
Weight | 250g | Weight of Main unit |
Power Switch | Rocker switch |
|
Power Socket | 12V DC input | DC-470 |
Data port interface | 9PIN (RS-232) | For Non-Ruim Only(for write IMSI&ESN) |

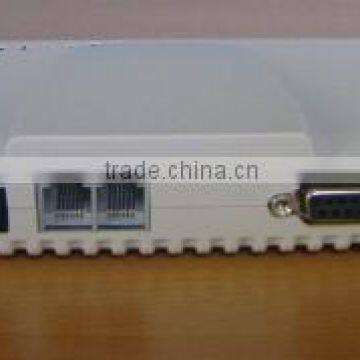

Phone interface | RJ11 | 2 RJ-11 ports for extentions |
Antenna interface | SMA-female |
|
LED display | No.1: Power, No.2-5: Signal Strength display, No.6: talking, No.7-8: In Use | From Right to left(front side view) |
2. Technical Specifications
- Air Interface: CDMA 800/1900Mhz IS-2000(backward IS-95A/B)
800Mhz 1900Mhz
- RF receiving (RX): 869 ~894MHz 1930 MHz ~ 1990 MHz
- RF transmitting (TX): 824 ~849MHz 1850 MHz ~ 1910 MHz
- Vocoder: 8K QCELP, EVRC
- Support: Ruim Support Or Non Ruim support (Optional)
- Industrial module: Sierra Wireless Module (Qualcomm 3G cdma)
- Power Consumption: Static ≤25MA Emission:≤300MA
- Dialtone frequency: 450Mhz
- Sensitivity: -104db
- Ac-Power: Input: 100-240V 50/60Hz ,Outupt: DC12V 1A
- Connector of Power: US type or European type (Optional)
- Antenna Gain: 2.5dbi (Short Plastic Antenna), 3.5dbi (Magnetic Antenna with 3m cable)
- Antenna Connection: SMA
- Connection Mode: RJ-11 phone jack
3. Features &Functions
1) Simple to install and easy to maintain
2) Steady module and reliable design ensures good performance
3) Provides optimized circuit directly connecting the exchange device for extensions
4) Compatible to most telephones, PBX and VoIP gateways (for call termination)
5) Strong signals with high gain antenna
6) Attractive plastic casing
7) Ruim Support or Non-Ruim support (optional)
8) Caller ID display
9) Provides reversal polarity signal (Voice detecting reverse) for metering
10) No noise and clear voice
11) Suitable for wide voltage range and low power consumption
12) RJ-11 ports (for extensions)
13) Locking PIN / network (optional)
