CDMA FWT-8848 Fixed Wireless Terminal
Specifications
* 1 channel CDMA converter
* Caller ID display;
* DTMF Dialing;
* Polarity reversal (Voice detecting reversal polarity )
Brand: Etross or OEM brand
Model no.: Etross-8848 C
Product name: CDMA Fixed Wireless Terminal (Ruim, Non-ruim)
Frequencies: CDMA 800/1900Mhz fixed wireless terminal/CDMA gateway
The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call,
to connect PBX for call extentions, to connect billing systems for public phone use, to connect
VoIP gateway to realize VoIP call termination, to connect alarm system for security purpose, etc.
It is not a VOIP gateway, nor a CDMA+VOIP gateway,
It is a GSM Fixed Wireless Terminal that produces a Analog FXS phone line.
Features:
1) It is a 1 channel CDMA converter which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc. ;
3) Dialing tone frequency:450hz;
4) Employ Industrial module to make;
5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;
6) Can adjust voice volume by setting up from telephone set;
7) Ruim card supported
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal (Voice detecting reversal polarity ) (optional)
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;
16) back up Li-ion battery( Optional) 7.2V 1300mAh.standby 24hrs,talking time: 2.5hrs.
Technical Specifications
Air interface standard: CDMA 800/1900Mhz 2000 1x(backward IS-95A/B)
CDMA 800Mhz CDMA 1900:
I) Transmission: 824 ~ 849MHz I) Transmission: 1, 850 ~ 1, 910MHz
Ii) Reception: 869~ 894MHz Ii) Reception: 1, 930 ~ 1, 990MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104dbi
Transmitting power<3W
Color: White /Black (optional)
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU,US,AU,British can be optional
4,Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA

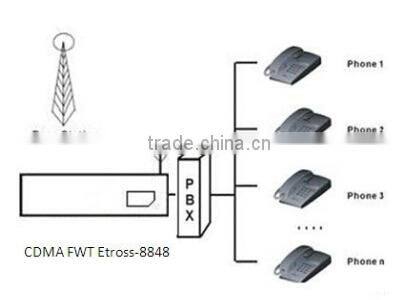

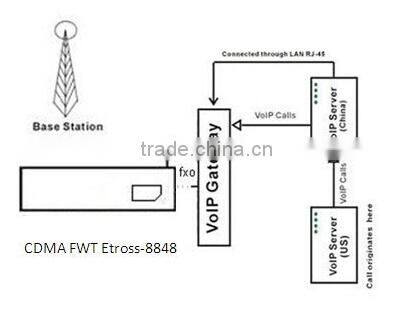

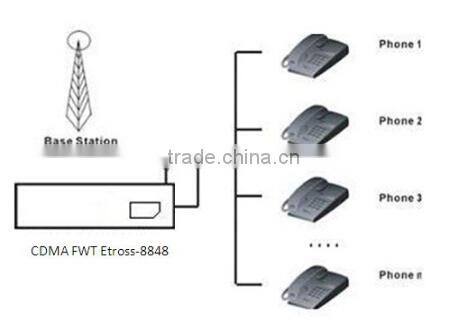

Working Diagram
