Automatic inline filling system

Specifications

inline filling system
1) Speed: 3000-36000 BPH
2) Rinsing Filling Capping
3)Bottle Size:200ml-2500ml.

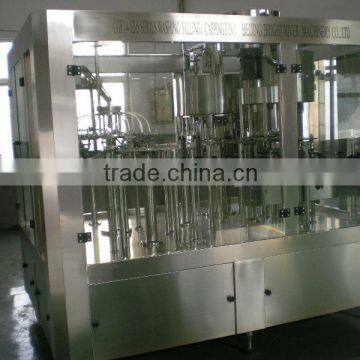

Automatic 3 in 1 Monobloc  inline filling system



The series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. Lonhon QGF mineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water filling production line.



1) Feature

• The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
• Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
• Spring type rinsing catcher can wash both inside and outside of the bottle
• High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
• Magnetic powered cap device ensures tightness and prevents damage of the caps
• Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
• Built-in safeguard mechanism ensures the safety of operator and machine.
• High efficient air clean filter system ensures high sanitary requirements
• Low overall machine noise
• Self-lubricating system imported from America provides continuous smooth operation

2) Technical Parameter

	QGF-3000	QGF-6000	QGF-12000	QGF-15000	QGF-18000	QGF-24000
Productivity	1500-4000 BPH	3000-8000 BPH	3000-12000 BPH	4000-18000 BPH	6000-18000 BPH	8000-24000 BPH
Rinsing Head	18	18	24	32	40	50
Liquid Filling Head	12	18	24	32	40	50
Capping Head	6	6	8	10	12	15
Bottle Volume	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml
Bottle Diameter	φ50-90 mm	φ50-90 mm	φ50-90 mm	φ50-90 mm	φ50-90 mm	φ50-90 mm
Bottle Height	150-310 mm	150-310 mm	150-310 mm	150-310 mm	150-310 mm	150-310 mm
Filling Tolerance	±2%	±2%	±2%	±2%	±2%	±2%
Cap Size	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps
Air Pressure	0.5 MPa	0.5 MPa	0.5 MPa	0.5 MPa	0.6 MPa	0.5 MPa
Air Consumption	500 L/min	500 L/min	500 L/min	500 L/min	500 L/min	500 L/min
Filling Water Consumption	1.5 m3/h	3 m3/h	6 m3/h	7.5 m3/h	9 m3/h	9 m3/h
Rinsing Water Consumption	0.5 m3/h	1 m3/h	2 m3/h	2.5 m3/h	3 m3/h	3 m3/h
Motor Power	3.5kW	3.5kW	4kW	7.5kW	7.5kW	7.5kW
Voltage	380V	380V	380V	380V	380V	380V
Dimension	(L×W×H) 2640×1520×2340mm	(L×W×H) 2816×1883×2340mm	(L×W×H) 3194×2054×2560mm	(L×W×H) 3937×2846×2560mm	(L×W×H) 4940×3755×3200mm	(L×W×H) 4940×3840×3200mm
Weight	2500kg	3000kg	5300kg	8000kg	12000kg	13000kg
Filling Principle	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling



 Rinsing-Filling-Capping 3 in 1 Water Filling Machine



Before sales:
the buyer must cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.

During build:
we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and send to buyer, the purpose is that the buyer?can inspect the machine but without travelling.

After sales:
We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the cost price of spare parts





Huasheng beverage machinery Co., Ltd. was established in 1994, It's a professional manufacturer of liquid food and beverage equipment. They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.They have 300+ users in and out of China, and now 30% order from regular customer. The products scope as below: PET bottle filling machine,Glass bottle filling machine,Capping machine,Bottle washing machine,Water treatment,Oil filling machine/piston filler,Other bottle filling machine,Labeling machine, wrap packing machine,bottle unscrambler,and some drinks production line auxiliary.
