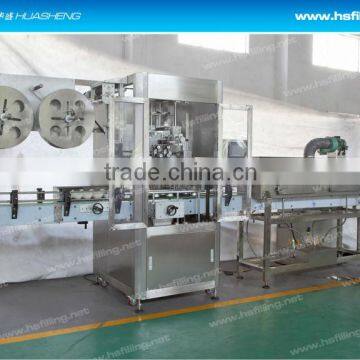

PET/glass Bottle Automatic Sleeve Labeling Machine

PET/glass Bottle Automatic Sleeve Labeling Machine thumbnail-1
PET/glass Bottle Automatic Sleeve Labeling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Medical, Other, Food, Beverage, Medical, labeling mahine
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Huasheng Beverage Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Beverage, Medical, Other, Food, Beverage, Medical, labeling mahine
Packaging Type Bottles
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Power 3.0kw
Place of Origin Jiangsu, China
Brand Name HS-filling
Model Number SLM-sleeve labeling machine
Dimension(L*W*H) 2100mm x 850mm x 2000mm
Weight 1800kg-sleeve labeling machine
Certification CE,ISO,SGS,GMC
After-sales Service Provided Engineers available to service machinery overseas

Specifications

PET/glass bottle automatic sleeve labeling machine
1.sleeve shrink labeling machine
2.speed:100-250b/min
3.shrink tunne
4.CE



PET/Glass Bottle Automatic Sleeve Labeling Machine





 1.Automatic sleeve labeling machine production capacity: 100-350b/min



 2.Automatic sleeve labeling machine bottle: 0.25-2L PET or glass bottle



 3.This sleeve labeling machine used in water bottle/juice bottle/beverage bottle filling line



4.Full set of sleeve labeling machine has three parts: sleeve labeling machine/label aplicator, shrink tunnel/shrink oven and steam generator



Features:
All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.
Adjustable cutter head: unique cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: more stable for label delivery.
Synchronous bottle divider: a more stable transmission for the bottle.
Bottom set label brush: more precision for casting label.
Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
Push-button control cabinet: a more humanized operation.
Independent feeding material shelf: the position of the material shelf is optional at will.

Electrical Appliance Configuration Specification
This automatic sleeve labeling machine adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.

Applicable Variety Types of Label
Thsi automatic sleeve labeling machine suitable Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.

SLM-150/250 Technical Parameters
Model SLM-150 SLM-250
Input Power 1.5KW 3.0KW
Input Voltage 3,380/220VAC 3,380/220VAC
Production Efficiengcy 150Bottle/min) 250Bottle/min)
Size of Host Machine L2100mm x W850mm x H2000mm L2100mm x W850mm x H2000mm
Applicable Diameter of Bottle Body Φ28mm-Φ125mm Φ28mm-Φ125mm
Applicable Length of Lable 30mm-250mm 30mm-250mm
Applicable Thickness of Label 0.03mm-0.13mm 0.03mm-0.13mm
Applicable Internal Diameter of Paper Tube (Free Adjustment) (Free Adjustment)
 ANY QUESTIONS ,PLS DO FEEL FREE TO LET ME KNOW





PET/glass bottle automatic sleeve labeling machine



PET/glass bottle automatic sleeve labeling machine





Huasheng beverage machinery Co., Ltd. was established in 1994, It's a professional manufacturer of liquid food and beverage equipment.

They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.



The products scope as below:

PET bottle filling machine,

Glass bottle filling machine,

Capping machine,

Bottle washing machine,

Water treatment,

Oil filling machine/piston filler,

Other bottle filling machine,

Labeling machine,

wrap packing machine,

bottle unscrambler,and some drinks production line auxiliary.



 Any further info for PET/Glass bottle sleeve labeling machine, pls contact us.
