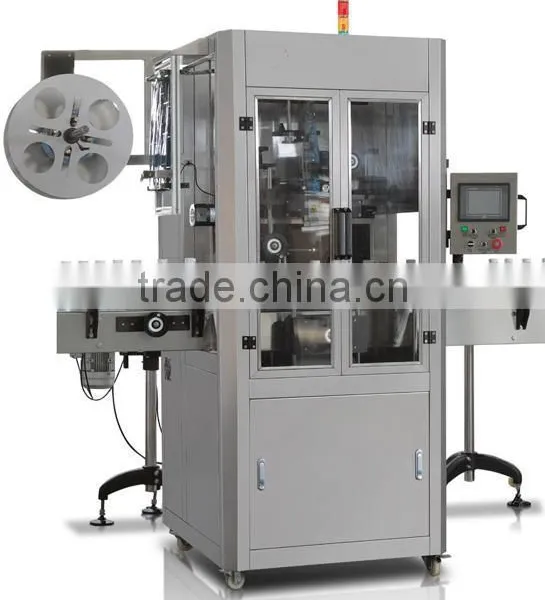

PVC shrink labeling machine

Specifications

PVC shrink labeling machine
1. PET/glass bottle
2. 150-450bpm
3. ISO, SGS, CE, GMC

PVC shrink labeling machine



Features:
All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.
Adjustable cutter head: unique cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: more stable for label delivery.
Synchronous bottle divider: a more stable transmission for the bottle.
Bottom set label brush: more precision for casting label.
Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
Push-button control cabinet: a more humanized operation.
Independent feeding material shelf: the position of the material shelf is optional at will.

Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.

Applicable Variety Types of Label
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.





SLM-150/250	Technical Parameters
Model	SLM-150	SLM-250
Input Power	1.5KW	3.0KW
Input Voltage	D3,380/220VAC	D3,380/220VAC
Production Efficiengcy	150(Bottle/min)	250(Bottle/min)
Size of Host Machine	L2100mm x W850mm x H2000mm	L2100mm x W850mm x H2000mm
Applicable Diameter of Bottle Body	D28mm-125mm	D28mm-125mm
Applicable Length of Lable	30mm-250mm	30mm-250mm
Applicable Thickness of Label	0.03mm-0.13mm	0.03mm-0.13mm
Applicable Internal Diameter of Paper Tube	(Free Adjustment)	(Free Adjustment)









Zhangjiagang Huasheng Beverage Machinery Co., Ltd. was established in 1992, we are a private enterprise, specializing in liquid food and beverage filling and packaging machinery development, manufacturing and sales.
In the past 20 years, we are committed to the domestic market sales and service, we mainly serve small and medium-scale factories, (2000-20000 bottles per hour production line)

We have 300+ users in China, including some well-known brand, the users grow with us, they are  not only our business partners but strong supporter of our further developping .From 2009, we began international sales and service, we hope to cooperate with more foreign companies in the future, we believe that the past 20 years of experience will enable us to do better, we are ready.
