Home > Products > Labeling Machine > PET/PP/Glass bottle labeling machine manufacturer

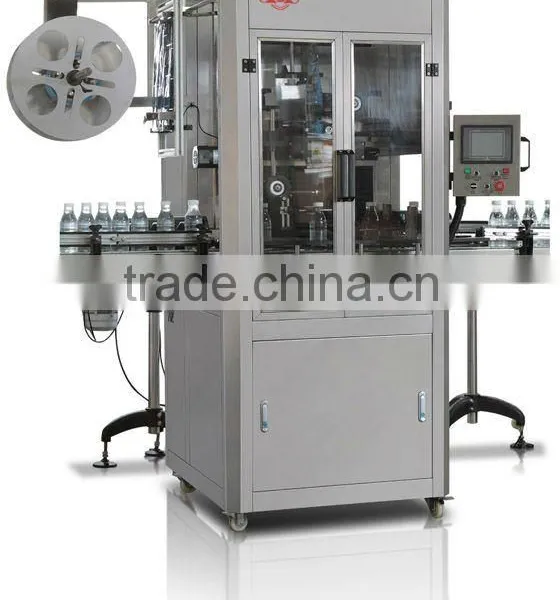

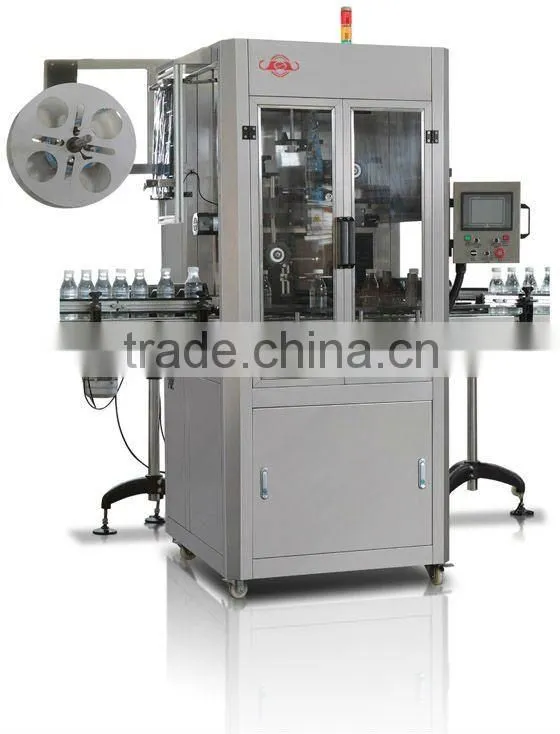

PET/PP/Glass bottle labeling machine manufacturer
- 50 Set / Sets per Month
- Shanghai Port
- T/T
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Food, Beverage, Medical, Chemical | Packaging Type: | Bottles |
Packaging Material: | Other, Film | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | Customized | Power: | 1.5KW | Place of Origin: | Jiangsu, China |
Brand Name: | HSfilling | Model Number: | SLM Series | Dimension(L*W*H): | 2100 x 850 x 2000mm |
Weight: | 1600KGS | Certification: | CE,ISO,SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. labeling machine manufacturer2. Capacity:150/250/350 bottles/min
3. Label Material: PE/PVC
4. Label Wrap Around Bottle Bo
SLM Series Automatic labeling machine manufacturer for kinds of bottles.
Features:
1.All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.
2.Adjustable cutter head: unique cyclotron cut-off, double sided cutting edge with a long service life.
4.Single positioning centre guide pillar: more stable for label delivery.
5.Synchronous bottle divider: a more stable transmission for the bottle.
6.Bottom set label brush: more precision for casting label.
7Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
8.Push-button control cabinet: a more humanized operation.
9.Independent feeding material shelf: the position of the material shelf is optional at will.
Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.
Applicable Variety Types of Label
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.
Main Technology
SLM-150/250 | Technical Parameters | |
Model | SLM-150 | SLM-250 |
Input Power | 1.5KW | 3.0KW |
Input Voltage | 3,380/220VAC | 3,380/220VAC |
Production Efficiengcy | 150(Bottle/min) | 250(Bottle/min) |
Size of Host Machine | L2100mm x W850mm x H2000mm | L2100mm x W850mm x H2000mm |
Applicable Diameter of Bottle Body | Φ28mm-Φ125mm | Φ28mm-Φ125mm |
Applicable Length of Lable | 30mm-250mm | 30mm-250mm |
Applicable Thickness of Label | 0.03mm-0.13mm | 0.03mm-0.13mm |
Applicable Internal Diameter of Paper Tube | (Free Adjustment) | (Free Adjustment) |
