Specifications
Labeling machine1.Automatic
2.High Quality
3.Competitive price

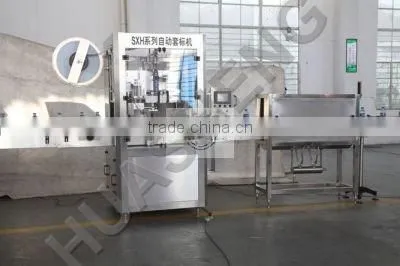

CE Labeling Machine
Machine Construction
Host part
750W Japan Panasonic ultra-small inertia servo motor, Japan Panasonic servo amplifier, Danfoss, Denmark , Japan Panasonic Motor, Japan Panasonic PLC system, Taiwan man-machine interface( in both English and Chinese operation interface), etc.
Machine part
Conveying mechanism: 200W AC motor, inverter speed .
The guide bottle institutions: two - coordinate adjustment anti-scratch crosspiece .
Points bottle institutions: Japan Panasonic motor, SCR Speed
Round bottle institutions: particularly suitable for high demand weeks paste; using three roller automatic positioning, can greatly reduce the due to conical uncertainties brought labeling error . Positioning function has been installed , fixed positioning labeling , etc.) .
Feature
the labeling head adjusted the 8 -dimensional space, labeling angle can be adjusted easy to paste a variety of difficult transparent label; the high elastic scraper and unpowered RABIN squeeze to ensure that no air bubbles generated ; the whole mechanical structure with reinforced rigid design simple, elegant , stable . .
Technical parameters
Production speed max |
70-90b/min |
Labeling accuracy |
± 1mm |
Label max width |
200mm (can be according to the require) |
Air source |
5kg |
| Labeling maximum length | 200mm |
Bottle diameter |
25-Φ110mm |
Label inner diameter |
76mm |
Label outer diameter max |
350mm |
Outline size |
200*800*1400mm |
Using power |
220V 50Hz 1500W |
Weight of machine |
160kg |
