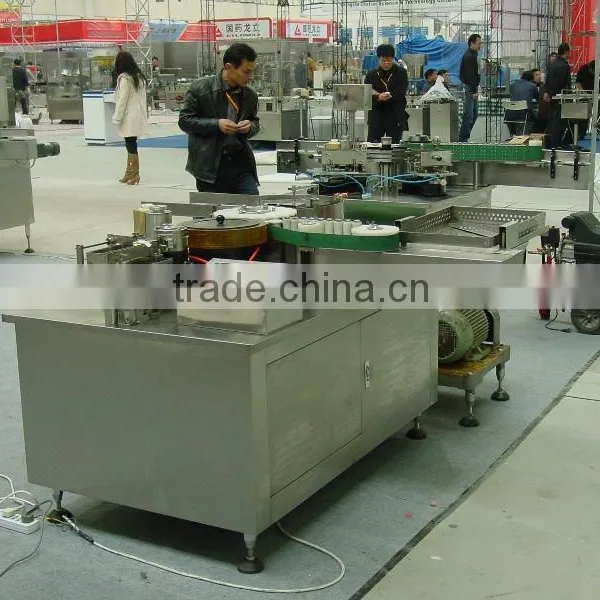

Full Automatic Hot gule labeling machine
- 80 Set / Sets per Month
- Shanghai
- T/T
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Food | Packaging Type: | Bottles |
Packaging Material: | Glass, Metal | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 2000w | Place of Origin: | Jiangsu, China |
Brand Name: | hsfilling | Model Number: | hs labeling | Dimension(L*W*H): | 2000*1600*1700(mm) |
Weight: | 200kg | Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Hot gule labeling machine1.Automatic
2.High Quality
3.Competitive price
CE Labeling Machine
Machine Construction
Host part
750W Japan Panasonic ultra-small inertia servo motor, Japan Panasonic servo amplifier, Danfoss, Denmark , Japan Panasonic Motor, Japan Panasonic PLC system, Taiwan man-machine interface( in both English and Chinese operation interface), etc.
Machine part
Conveying mechanism: 200W AC motor, inverter speed .
The guide bottle institutions: two - coordinate adjustment anti-scratch crosspiece .
Points bottle institutions: Japan Panasonic motor, SCR Speed
Round bottle institutions: particularly suitable for high demand weeks paste; using three roller automatic positioning, can greatly reduce the due to conical uncertainties brought labeling error . Positioning function has been installed , fixed positioning labeling , etc.) .
Feature
the labeling head adjusted the 8 -dimensional space, labeling angle can be adjusted easy to paste a variety of difficult transparent label; the high elastic scraper and unpowered RABIN squeeze to ensure that no air bubbles generated ; the whole mechanical structure with reinforced rigid design simple, elegant , stable . .
Technical parameters
Production speed max | 70-90b/min |
Labeling accuracy | ± 1mm |
Label max width | 200mm (can be according to the require) |
Air source | 5kg |
Labeling maximum length | 200mm |
Bottle diameter | 25-Φ110mm |
Label inner diameter | 76mm |
Label outer diameter max | 350mm |
Outline size | 200*800*1400mm |
Using power | 220V 50Hz 1500W |
Weight of machine | 160kg |
