Cctv Dvr System Security Camera Kit Camera Waterproof
US$ 217 - 227
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCAM
Model Number:
AKIT3018
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Selling Cctv Camera Ip66 Waterproof P2p Wifi ip Camera 2 MegapixelUS$ 120 - 150MOQ: 1 Piece -
1.3MP Wireless NVR Kit Security Camera Wireless 4CH Golden Mini Wifi NVR HD Security Camera Wifi NVR KitsUS$ 178 - 188MOQ: 1 Piece
-
H.264 NVR Kits CCTV Wireless Camera 1.3MP Network Camera IP 2.4ghz Mini USB Wireless Camera With ReceiverUS$ 188 - 198MOQ: 1 Piece
-
Security Camera Set Cctv Camera System With High QualityUS$ 178 - 188MOQ: 1 Set
-
CCTV Security System for 24 RJ45 Port Switch, 16 Port POE SwitchUS$ 180 - 185MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CCDCAM
Model Number
AKIT3018
Key Feature:
>720P AHD Camera (3.6mm Lens, 36pcs IR Leds with IR Distance 30m, 500m Video Transmission )
>720P AHD DVR (Play back 4CH 720P, support 1pcs HDD Up to 4TB Capacity )
>Free CMS, P2P Software
>View live video via DVR, CMS, Smartmeye or Web.
| AKIT3108 | ||
| AHD DVR | ||
| System | Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX operating system | |
| System resources | Pentaplex function: Live, recording, playback, backup& remote access | |
| Control mode | USB mouse, Network | |
| Video | Input | 8CH,AHD/Analog input BNC(1.0Vp-p, 75Ω) |
| Output | 1HDMI, 1 VGA | |
| Standard | PAL / NTSC | |
| Audio | Input | 4CH, RCA(200-2800mV,30KΩ) |
| Display | Display split | 1CH 720P / 4CH 960H |
| Resolution | 720P(1280*720), 960H, D1, CIF | |
| OSD | Camera title, time, video loss, camera block, | |
| motion detection, recording | ||
| Record | Video resolution | H.264 |
| Audio resolution | adpcm,G711 | |
| Image resolution | 720P(1280x720),960H(960x576,960x480), | |
| D1(704 X 576/704 X 480),HD1(704 X 288/704 X 240), | ||
| CIF(352 X 288/352 X 240) | ||
| Encoding speed | Main stream: CH1~4 720P/960H(1~25/30FPS) | |
| Sub stream: CIF(1~5FPS),QCIF(1~5FPS) | ||
| Image quality | 1~6 level (level 6 is the best),VBR effectively | |
| Record mode | Manual, schedule(always, motion detection, video lost, | |
| video blind, alarm), stop | ||
| Record sequence | Manual>Alarm>Motion detection>General | |
| Alarm | Triggering event | Record, Snapshot, Alarm, Email |
| Motion detection | Area: 192(16*12), Sensitivity: 1-6 level | |
| Video loss | Support | |
| Playback and backup | Playback channel | 4ch 720P/960H |
| Playback speed | 960H 100/120FPS ,D1 100/120FPS | |
| Search mode | Time/Date, Alarm, Motion detection Exact search(accurate to second) | |
| Playback function | Play, Pause, Stop, Fast play, Slow play, full screen, backup | |
| Back mode | Flash drive/USB HDD/CD-DVD RW/Network download | |
| Network | Interface | RJ-45 port(10/100M) |
| Network functions | TCP/IP,UDP,DHCP,DNS,IPFilter,PPPoE,DDNS,FTP,Email,UPNP,P2P | |
| Remote operation | Monitor, PTZ control, Playback, System setting, File download, Log information | |
| Hard disk | Interface management | 1 SATA ports, each port support max 4TB HDD standby technology ,HDD failure alarm |
| Auxiliary interface | USB Ports | 2 USB Ports: 1 for mouse control, 1 for backup |
| Environment | Power supply | DC 12V,3A |
| Environment | -10°C~+55°C/10~90%RH/86~106kpa | |

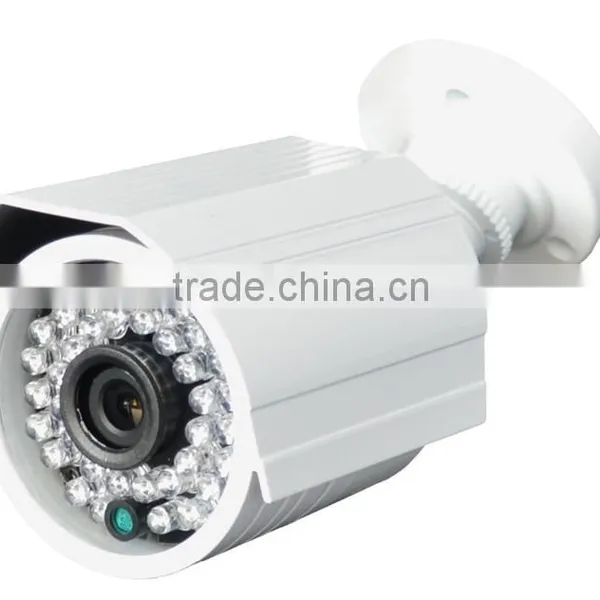

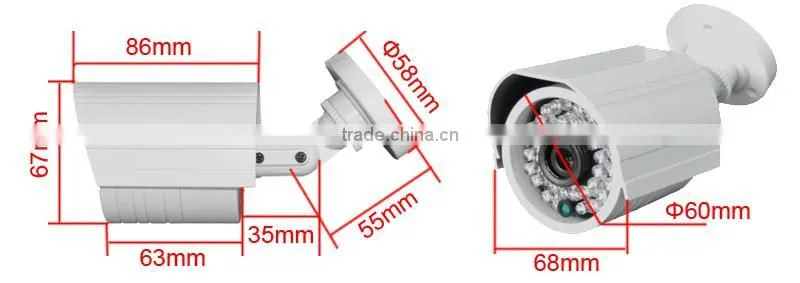

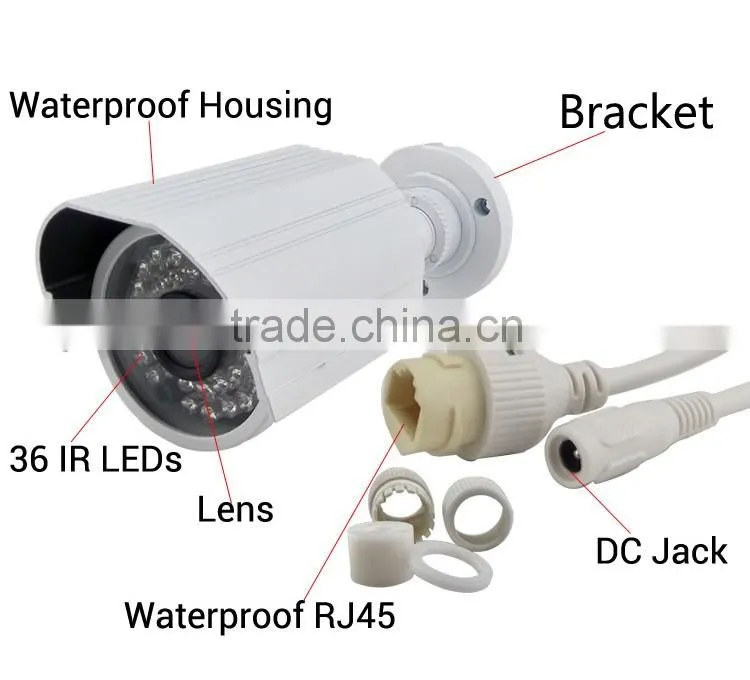

| 8*AHD Camera | ||
| Camera Type | 720P AHD camera 1.0 megapixel 1/4 CMOS | |
| Effective Pixels | PAL:1280x720@25fps NTSC:1280x720@30fps | |
| IR-LED | 36pcs IR led 30m IR Distance | |
| Day/Night | IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2 | |
| Electronic Shutter | 4/25-1/45,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Lens Mount | C/CS | |
| Output | 1CH AHD Video output | |
| Work environment | -10°C~60°C90%RH | |
| Power | DC 12V±10% | |
| Image | Auto BLC,Auto White Balance | |
| Max tansmission | common 75-3 lines can be up to 500 m | |

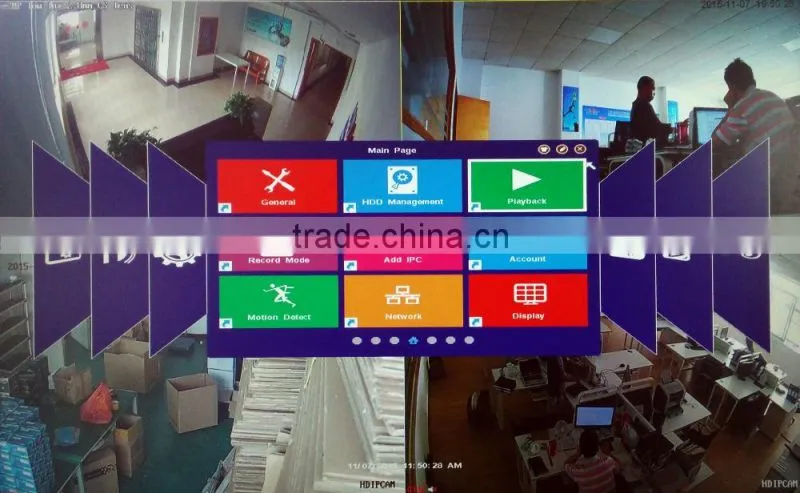

1. Use with AHD DVR
Main manual:

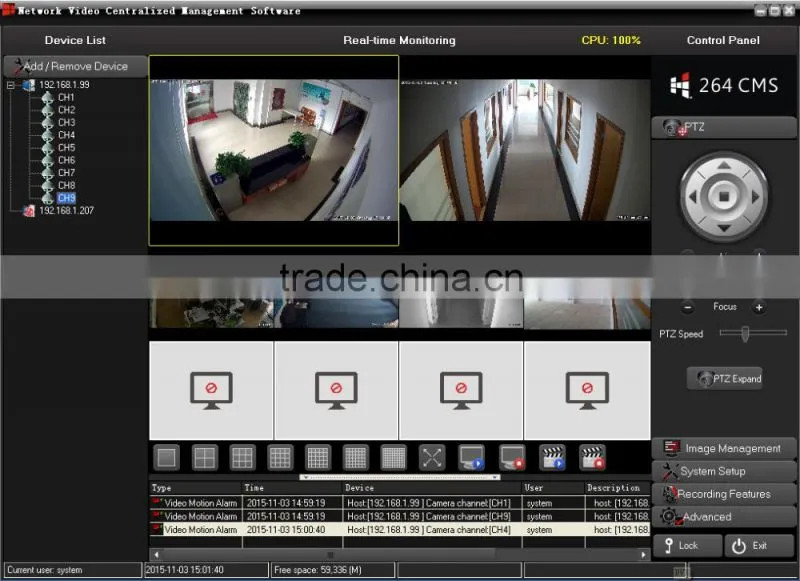

2. Use with CMS
View:

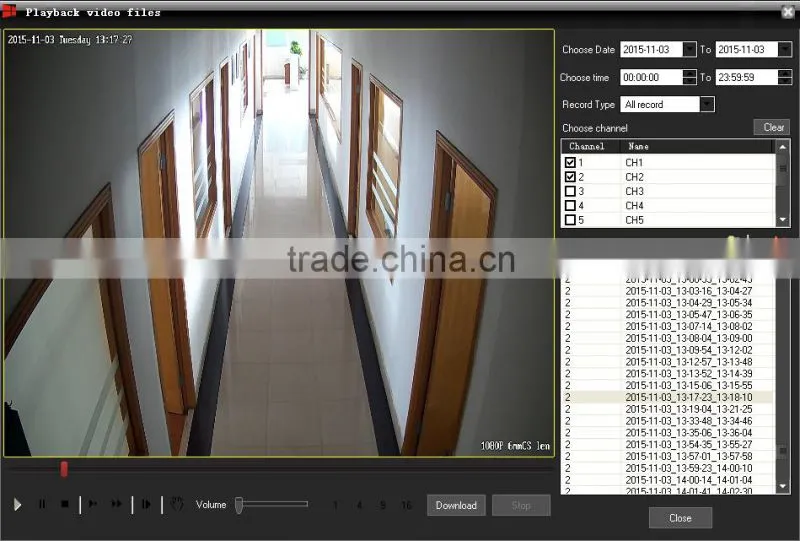

Remote playback:

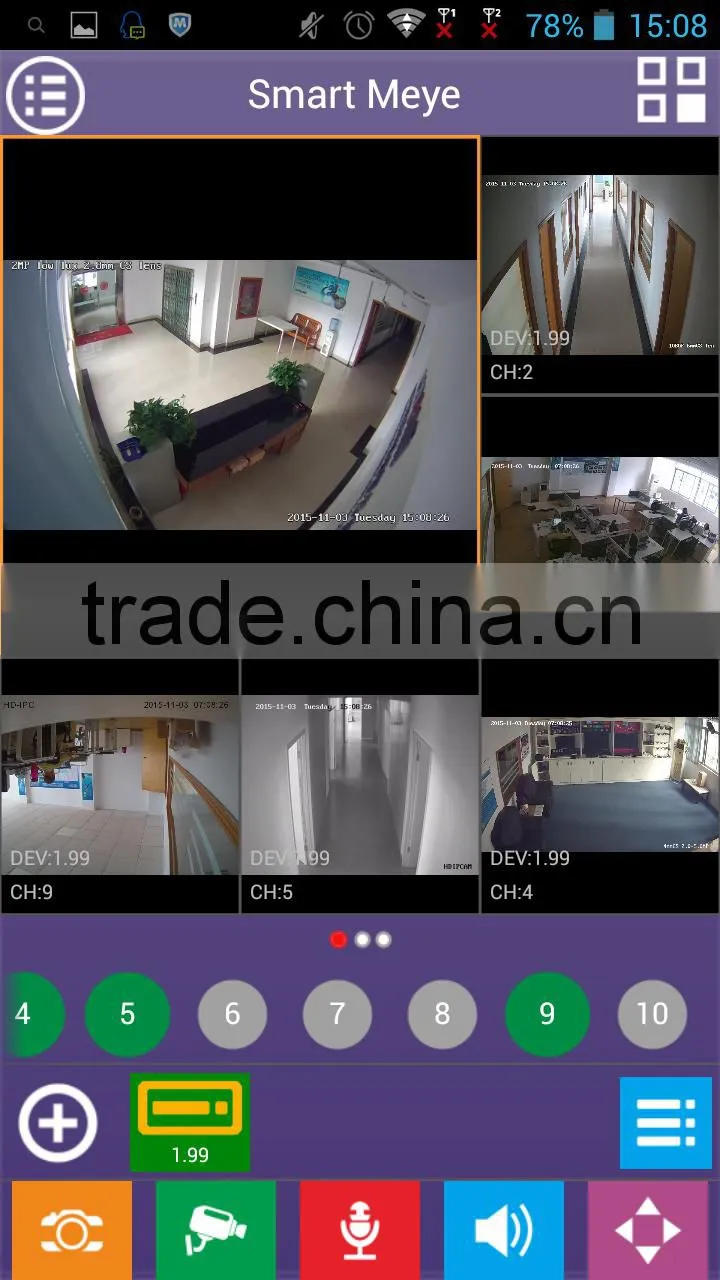

3. Use with Smartmeye(Smartphone)

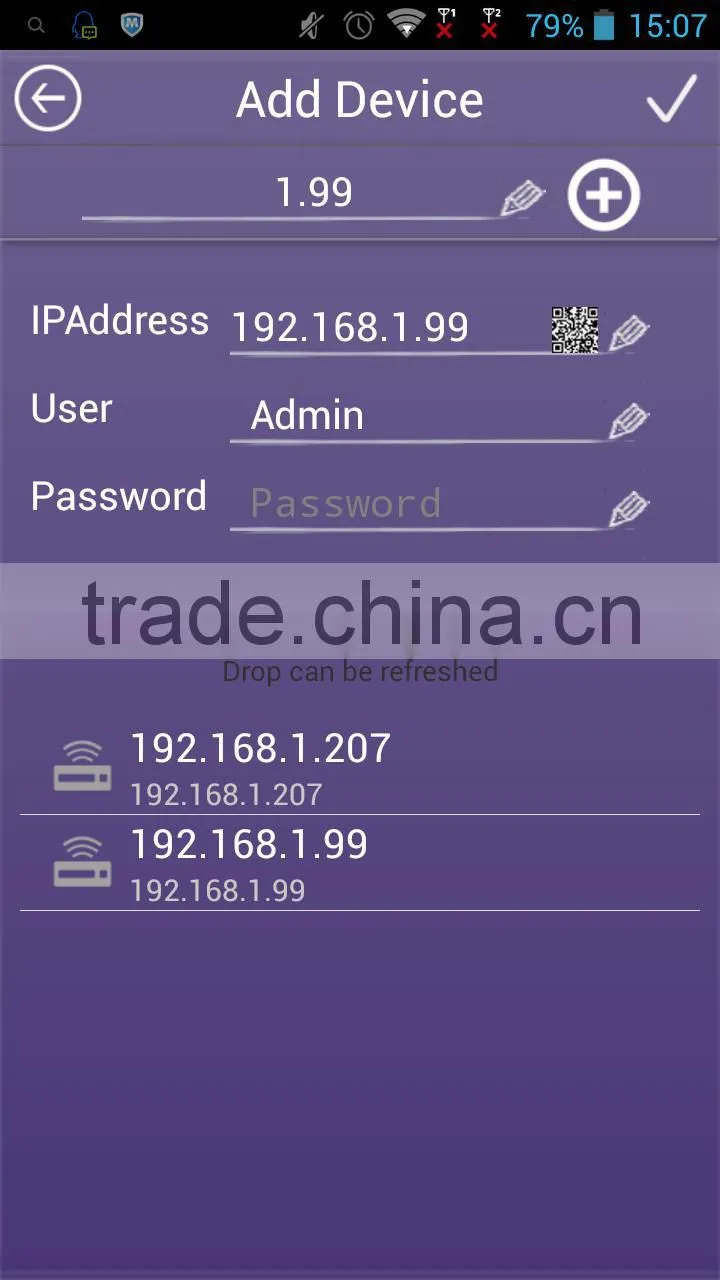

Step 1: Add Cameras
Step 2: View
4. Use with Web (Computer)

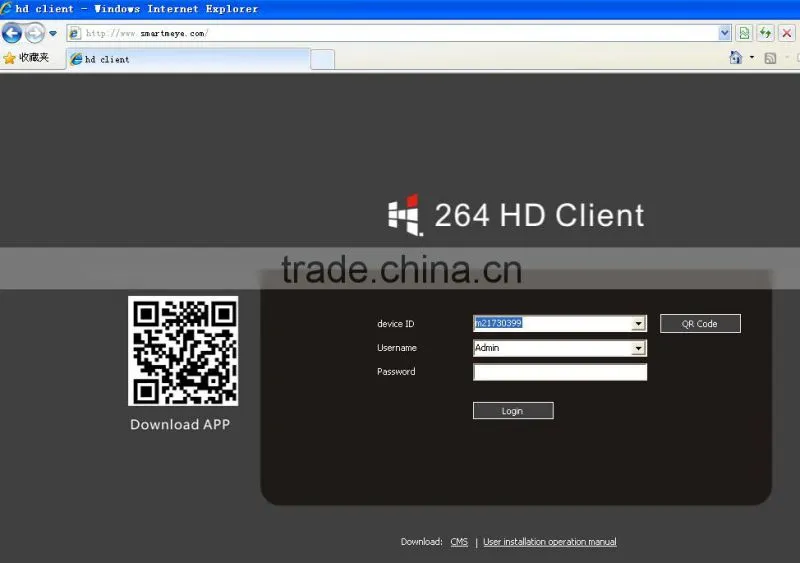

Step 1: Login

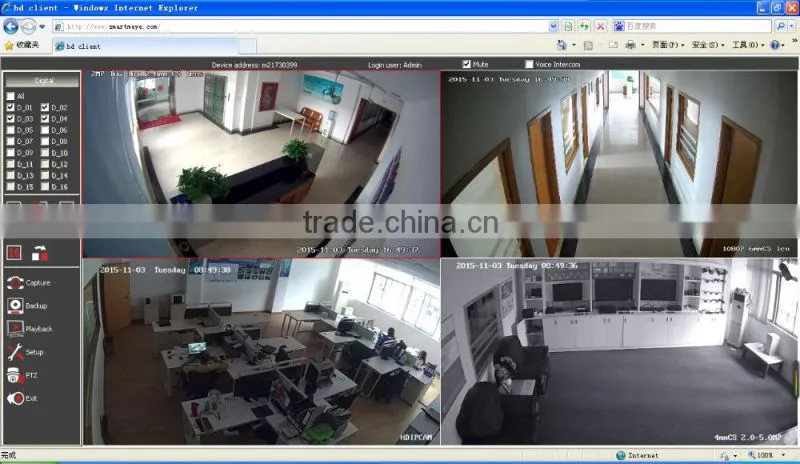

Step 2: View

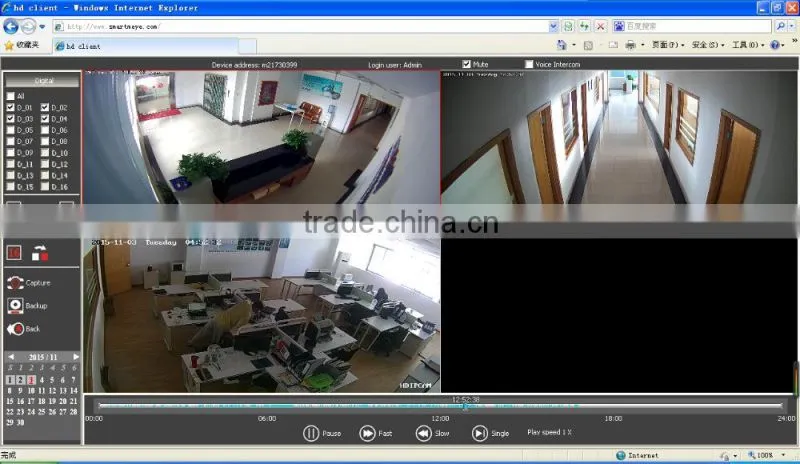

Step 4: Playback

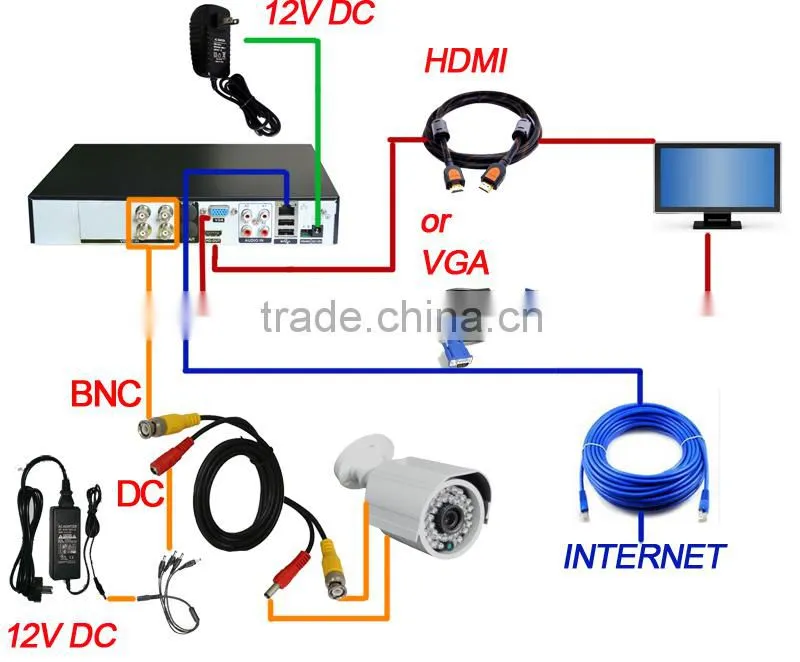

How to install?
Common

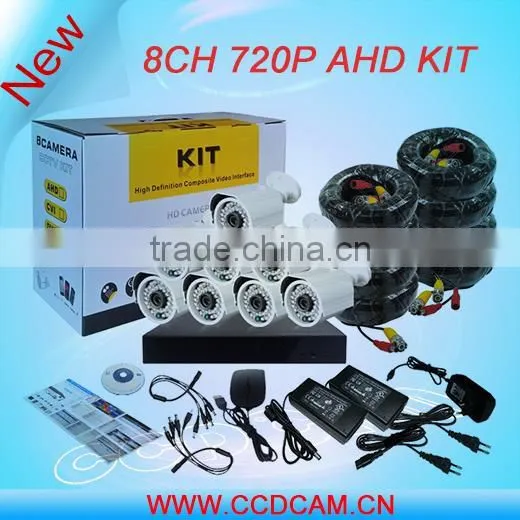

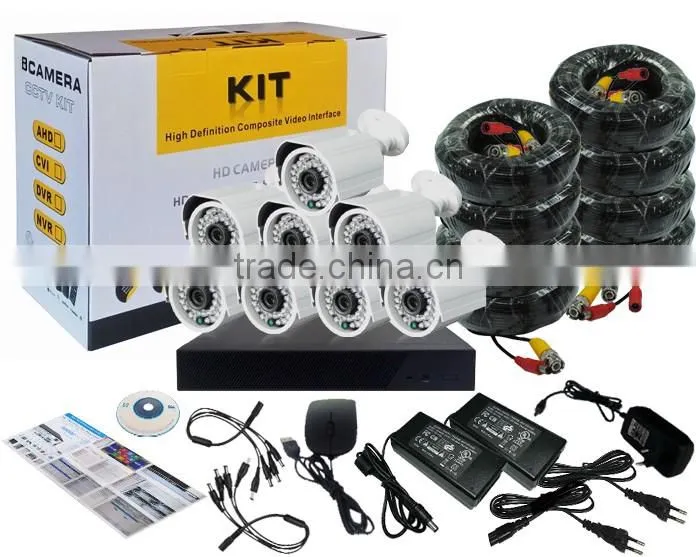

About Packing:
| 8CH AHD DVR | 1pcs |
| CD | 1pcs |
| Mouse | 1pcs |
| Quick strart guide | 1pcs |
| Power for DVR | 1pcs |
| 1.0MP AHD camera | 8pcs |
| 1 split 4 DC cable | 2pcs |
| Power for cameras | 2pcs |
| Cables (BNC+DC) | 8pcs |
Certificate:
