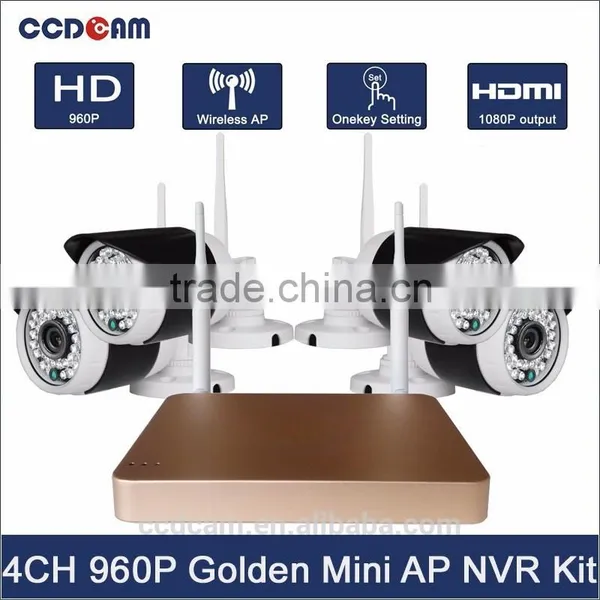

H.264 NVR Kits CCTV Wireless Camera 1.3MP Network Camera IP 2.4ghz Mini USB Wireless Camera With Receiver
US$ 188 - 198
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCAM
Model Number:
NKIT8134WG
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Security Camera Set Cctv Camera System With High QualityUS$ 178 - 188MOQ: 1 Set -
CCTV Security System for 24 RJ45 Port Switch, 16 Port POE SwitchUS$ 180 - 185MOQ: 1 Piece
-
CCTV 960P AHD Camera Surveillance AHD Board CameraUS$ 10 - 13MOQ: 1 Piece
-
HD 960P AHD Camera 1.3MP AHD Video Balun CCTV Camera SystemUS$ 10 - 13MOQ: 1 Piece
-
Nvr ip Camera 4mp ip Camera Outdoor ip CameraUS$ 65.00 - 65.00MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CCDCAM
Model Number
NKIT8134WG
Cameras features:
4* 960P WIFI Camera
1/3 inch 1 Megapixel CMOS sensor
High resolution : 1280*960

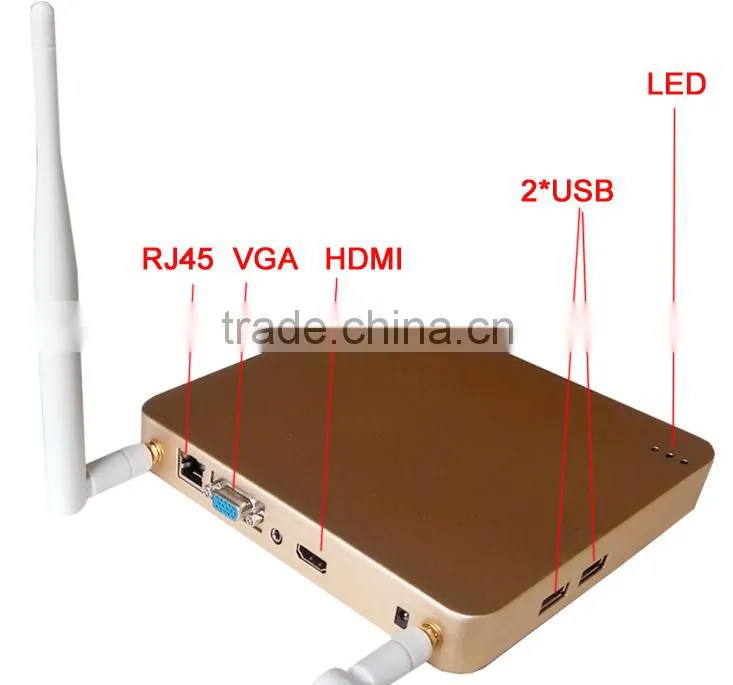

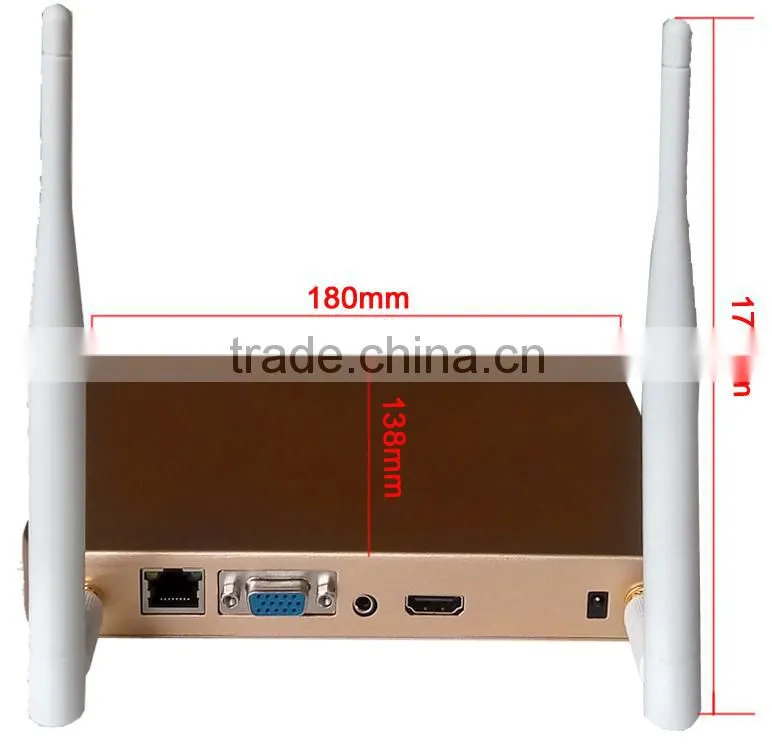

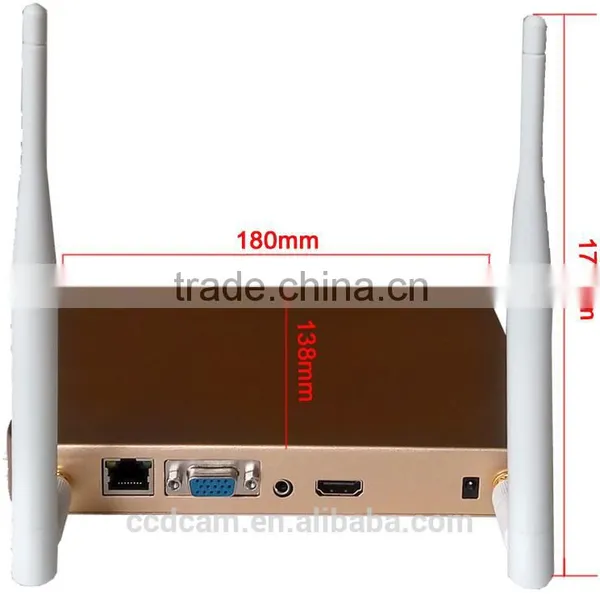

WIFI NVR Features:
Support embedded Linux OS
Wireless AP NVR, set up without WIFI router
Private protocol, install without setting
Support 1*2.5 inch HDD. max 4TB.
| NKIT8134WG | ||
| WIFI NVR | ||
| Support embedded Linux OS | ||
| Built-in Wireless AP,install without WIFI router | ||
| 2.4G All wireless Transfer video avoid from wiring problems | ||
| Support HDMI,VGA Sync 1080P video output | ||
| Support HD preview, all channels support Main stream | ||
| Support Zoom function of preview | ||
| Support event,playback,backup recording ,support picture playback and search | ||
| Support One-key setup and recording | ||
| System | ||
| Main processor | High performance embedded microprocessor | |
| Operating system | Embedded LINUX OS | |
| Video spec. | ||
| Video compression format | H.264 | |
| Display Image Resolution | 960P/720P 1~30FPS | |
| Playback Image Resolution | 960P/720P 1~30FPS | |
| Motion Detection | can setup 396(22×18)pcs motion detection area | |
| each channeland multi-level sensitivity(0-100 levels adjustable) | ||
| Recording Mode | ||
| Recording Mode | Manual Recording,Time Recording,Motion Recording | |
| Recording storage | HDD,Network | |
| Frame rate | 1~30 fps | |
| Playback | Max support 4ch 720P synchronously playback | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | ||
| Video Input | 4CH 960P IPC | |
| Video output | 1ch HDMI, 1ch VGA | |
| Other | ||
| Network |
2.4Ghz Wireless AP,10/100Mbps Ethernet port; WIFI Barrier free transport 100 Meters, |
|
| wall transfers 30 Meters | ||
| USB | 2 USB 2.0 ports | |
| HDD | support 1 SATA 2.5 inch HDD. (MAX 4TB) | |
| Power | DC12V 3A | |
| Power consumption | 16W-18W(not include HDD) | |

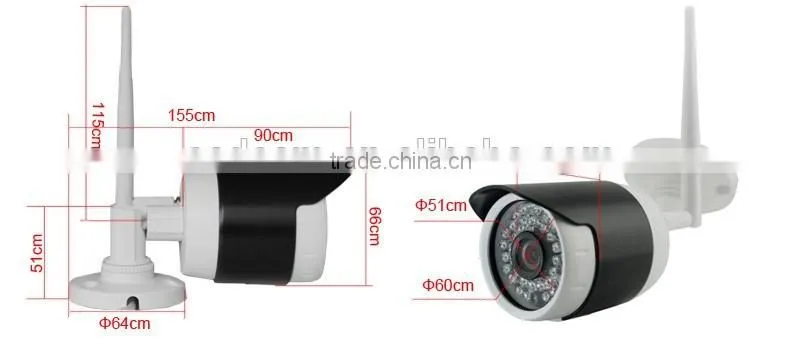

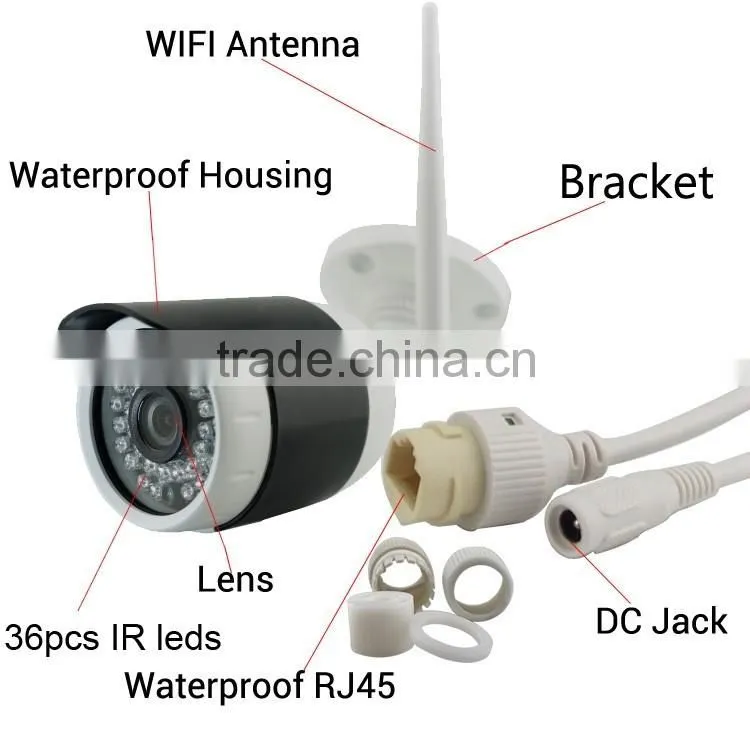

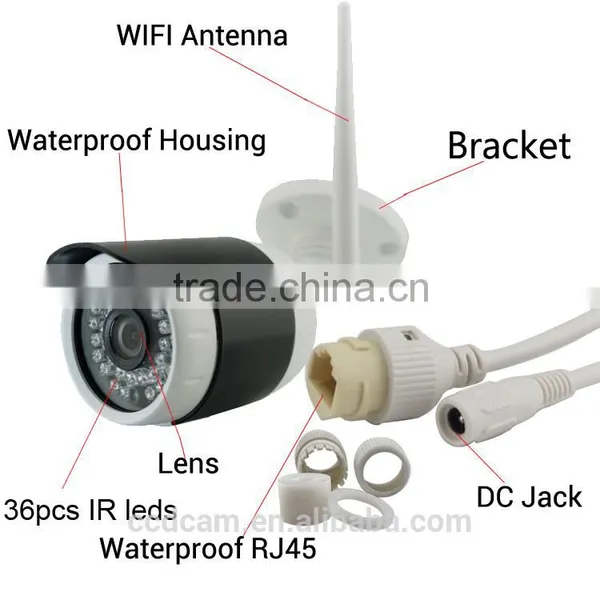

| 4*IP WIFI cameras | ||
| Camera Type | 960P IP Camera | |
| Camera | Image Sensor | 1/3 inch 1.3 Megapixel CMOS sensor |
| DSP | HI3518 DSP 32 dual-core , pure hardware compression | |
| IR-LED | 36 PCS IR LEDS | |
| Illuminate Distance | 30m IR distance | |
| Day/Night | IR-CUT filter | |
| Min.Illumination | Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2 | |
| Electronic Shutter | 1/50(1/60)s-1/100,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Digital Zoom | 10X Digital Zoom | |
| Video | Compression standard | H.264 |
| Compression technology | Dual-stream compression technology | |
| Video frames | Real-time PAL 25fps,NTSC 30fps 1-30fpsAdjustable | |
| output bit rate | 32Kbps~5000Kbps Adjustable | |
| Image | Resolution | Main Stream:1280×720(video resolution); |
| Sub Stream:640×360, 480×270,320×180; | ||
| Network | protocol | DHCP,TCP/IP,HTTP,UDP,DNS |
| Alarm | Support Motion Detection | |
| Privacy Mask | Support | |
| Vedio port | Video output | 1CH Video output,RJ45/WIFI,PAL/NTSC Optional |
| Network interface | RJ4510M/100M Ethernet port /WIFI 2.4GHz | |
| Other | Power supply | DC 12V |
| Waterproof Criterion | IP66 | |
| KITS | ||
| Pcaking list | Wireless AP NVR*1pcs; Power for NVR*1; 1.3MP WIFI camera*4pcs; | |
| Power for camera*4pcs; CD*1pcs; mouse*1pcs | ||
| Work environment | -10℃~60℃90%RH | |
| Package Size | ||
| Net Weight | ||

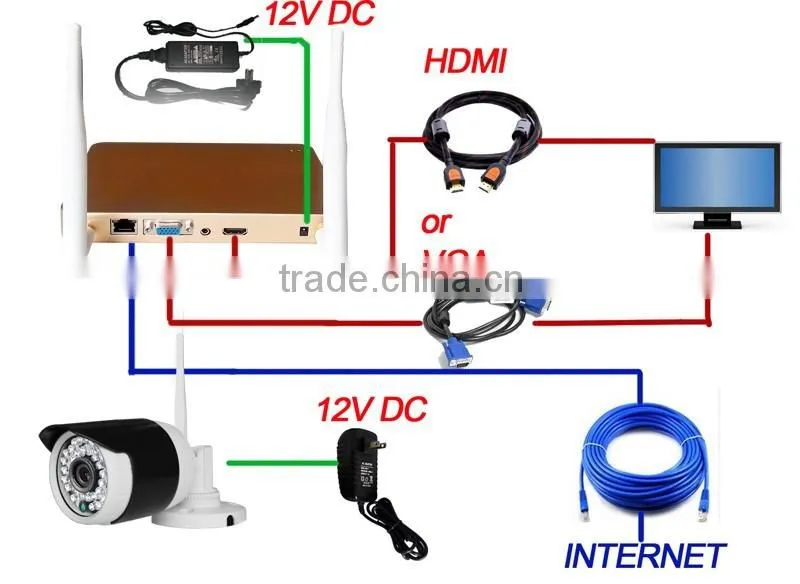

Installation

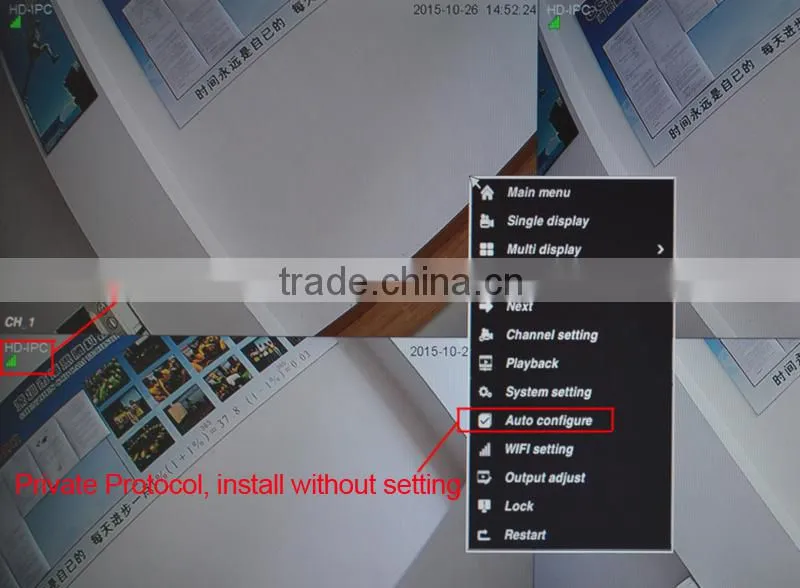

One-key Setting

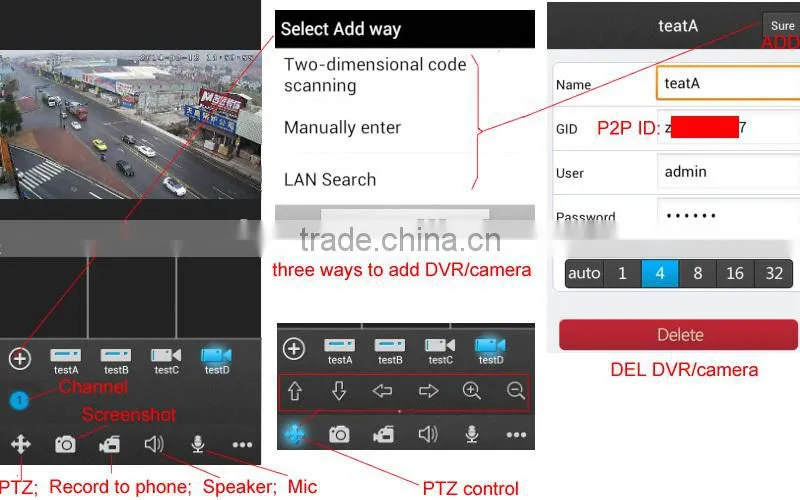

Phone Client

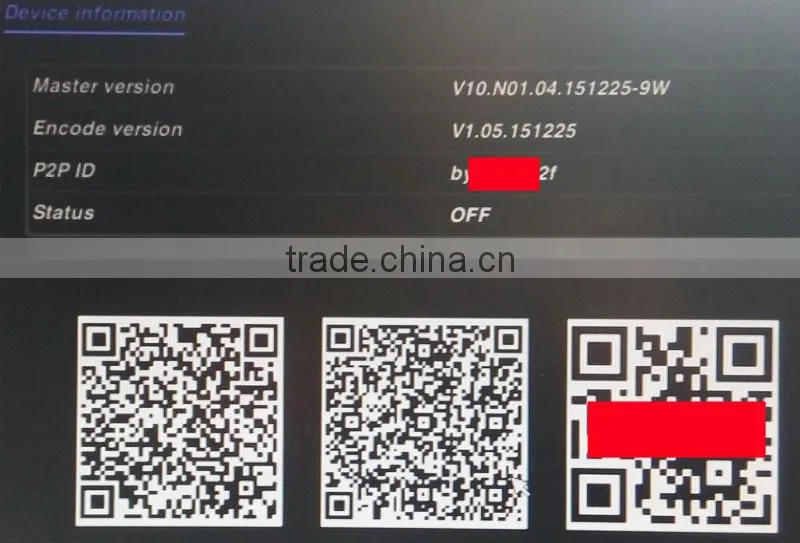

P2P

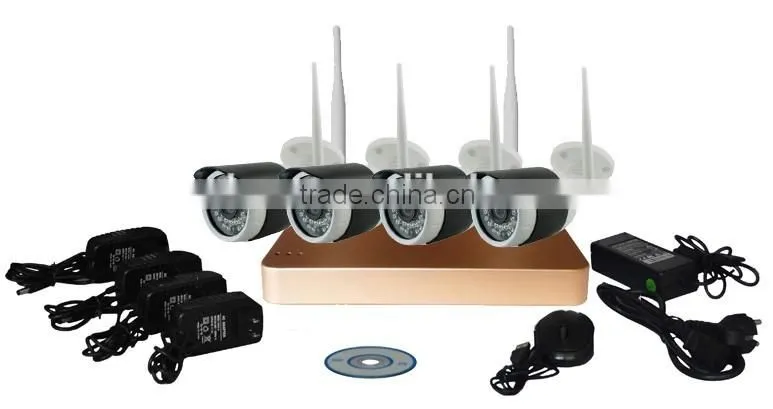

Packing List
| 4CH Mini Golden Wireless AP NVR | 1pcs |
| CD | 1pcs |
| Mouse | 1pcs |
| Power for DVR | 1pcs |
| 1.3MP WIFI camera | 4pcs |
| Power for cameras | 4pcs |
