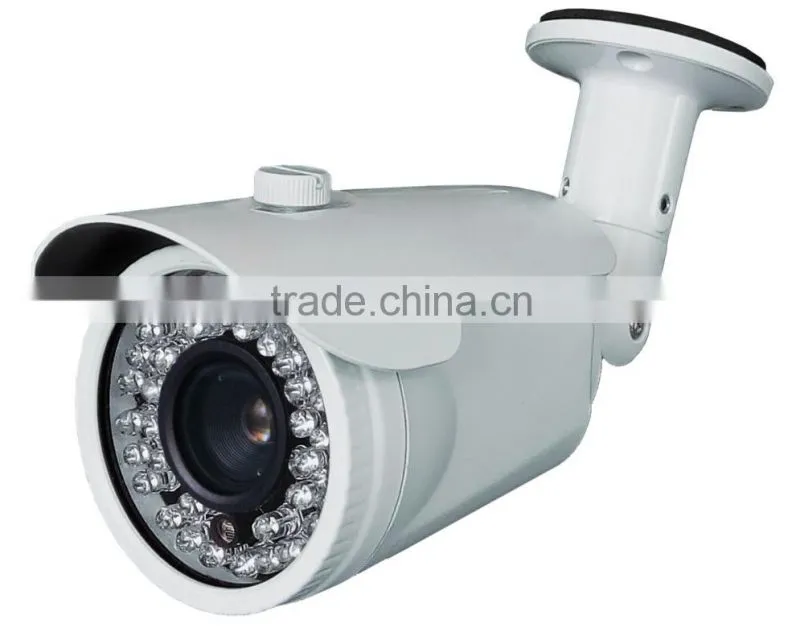

September Promotion Full hd 3mp ip Camera Real Time Wdr Security Outdoor ir Bullet Camera

Name: September Promotion Full hd 3mp ip Camera Real Time Wdr Security Outdoor ir Bullet Camera
Brand: CCDCAM
SKU: 119810583

US$ 60 - 65 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCDCAM

Model Number:

EC-IW6303

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCDCAM

Model Number EC-IW6303

Type Digital Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

September Promotion full hd 3mp ip camera real time wdr security outdoor ir bullet camera

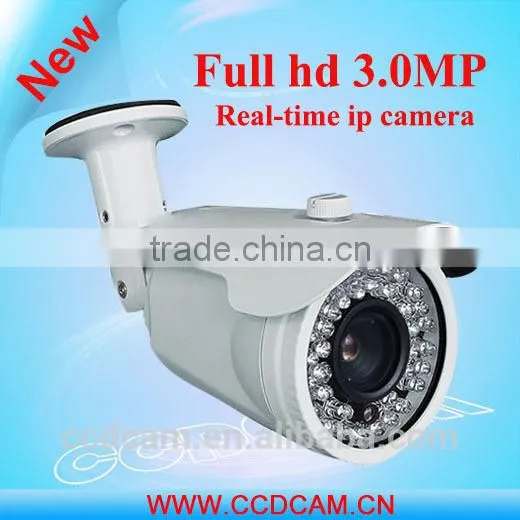

3MP Real-time WDR IP Camera

>6mm 3mp fixed CS lens
>42pcs IR LEDs, IR Range 30m
>Water resistance IP66

>Low Bitrate H.264, 3D-DNR

>Audio and POE for optiona

>Resolution 3MP(2304x1296), 30fps

4MP(2560x1440), 20fps
2MP(1920x1080), 30fps

Model		EC-IW6303
Camera Type		3.0MP real-time IP Camera
Camera	Image Sensor	1/3" CMOS OV4689 S2L 600MHz/128M DDR3
	Effective Pixels	2560(H)x1440(V)
	Day/Night	IR-CUT filter
	Min.Illumination	Color 0.05Lux/F1.2 , B/W 0.01 Lux/F1.2
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	6mm HD Fixed Lens
	Lens Mount	M12/C/CS Mount
	IR-LED	42pcs 5 IR LED
	Illuminate Distance	40m IR distance
Compression	Compression Standard	H.264 Main Profile/High Profile 5.1
	Video Frames	Real-time PAL/NTSC 3MP@1~25FPS 4MP@1~20FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	HDR	only in 2MP case ,HDR up to 100dB
	Quality	3D-DNR,BLC,AWB,auto ISO
	Resolution	Main Stream: 2560×1440 20fps(4MP), 2304×1296 25fps(3MP),1920×1080(2MP) 30fps
	Resolution	Sub Stream:,640×360,352×288,320×180(1-30fps)
Network	Parameter Settings	WEB configure and OSD supported, Real time recording, Transmission and playback, Download;Motion detection
	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream, Heartbeat, Password protection
	Protocol	HTTP/Onvif/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/P2P
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording, Sensor trigger alarm functions
Interface	Video Output	RJ45
Interface	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
Other	Work Environment	-10°C- +60°C;≤95%
	Waterproof Criterion	IP66
	Power Supply	DC 12V
	Package Size	20x12x10cm
	Net Weight	0.5kg
If you need Audio, POE functions, please consult with us.
