Cctv 2mp ip Camera Board

Cctv 2mp ip Camera Board photo-1
Cctv 2mp ip Camera Board photo-2
Cctv 2mp ip Camera Board photo-3
Cctv 2mp ip Camera Board photo-4
US$ 16.9 - 17.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCAM
Model Number:
IPB200L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ HK
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name CCDCAM
Model Number IPB200L
Type IP Camera
Style Other, camera main board
Sensor CMOS
Technology NetWork
Special Features Other, 2 Megapixel


cctv 2mp surveillance camera board

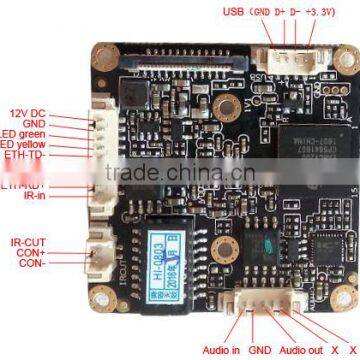

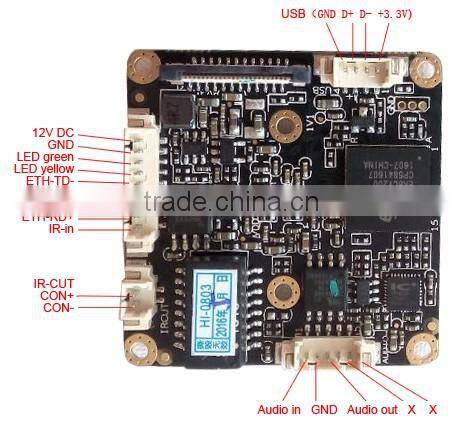

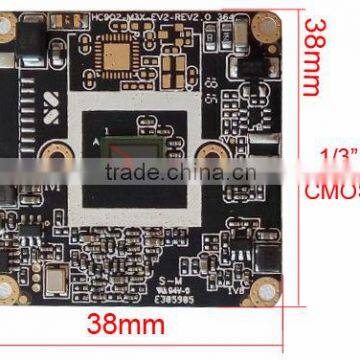

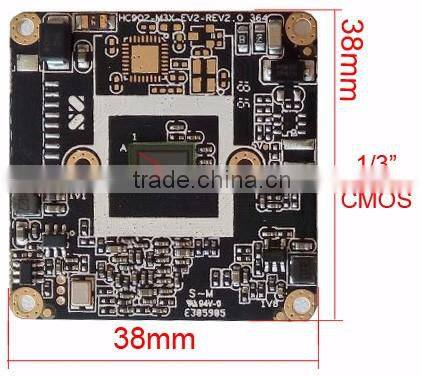

* 38*38 single board

* 10/100m RJ45 interface

* two-way audio interface

* USB WIFI interface(need firmware support)

* HI3516CV200  H.264 processor

* support H.264/MJPEG output

* 2MP(1920*1080) @15fps

* 1.3MP(1280*960)@25fps



Camera module board Specification

Model IPB200L
Module Type 2MP IP camera Module
Module Image Sensor 1/3 inch 2.0MP CMOS 0803
Effective Pixels 1920(H)x1080(V)
DSP Hisilicon 3518EV200
Day/Night IR-cut
Min.Illumination Color 0.2Lux/F1.2; B/W 0.05Lux/F1.2
Electronic Shutter 1s-1/100,000s
Lens 6mm CS Lens
Lens Mount CS Mount
Compression Compression standard H.264 / MJPEG
Video frames Real-time 1-25fps Adjustable
Video stream output Support adjustable stream 0.1M ~ 10Mpbs
Image Quality AWB, AGC, BLC,HDR up to 80dB
Resolution Main Stream:  Real-time,1920×1080@15fps; 1280×960@25fps
Sub Stream:640×360,352×288,320×180(0~25fps)
Network Parameter settings WEB configure and OSD supported,
Transmission ;Motion detection
Protocol Onvif/PPPOE/DHCP/DDNS/P2P/HTTP
Intelligent Alarm Support Motion Detection, Linkage Alarm, Linkage recording,
Sensor trigger alarm functions
Privacy Mask Support 4 area can be set
Basic Anti-flicker, Dual stream,  Password protection
Interface Video output RJ45
Power DC jack :  12V
Network interface RJ45 10M/100 MEthernet port
Audio G.711   1ch input + 1ch output
Other Work environment -10℃~60℃90%RH
If you need POE module please consult with us.
