Specifications

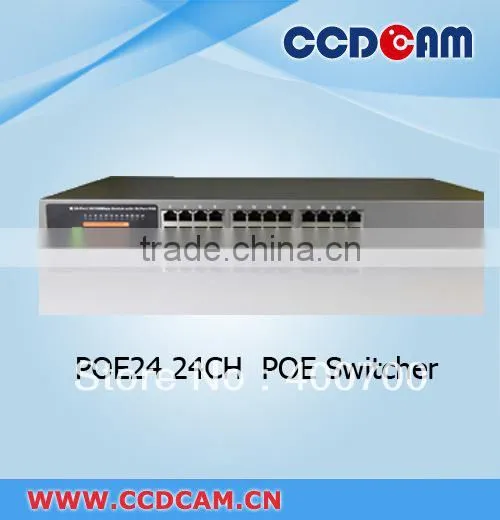

home security surveillance camera24 RJ45 Port Switch, 16-port PoE support,
IEEE 802.3af/at,10/100 Mbps,250W
home security surveillance camera
24 RJ45 Port Switch, 16-port PoE support,
•Supports 10/100 Base-T applications
•complies to IEEE 802.3af PoE standard and is backward
•Internal power supply
•Save up to 83% power with Green Technology
Specification
Pass Through Data Rates : PSE2416:24-Port 10/100 Mbps
LED : Power, 10/100, PoE
Power over Ethernet Output
Pin Assignment and Polarity: 1/2 (+), 3/6 (–)
Output Power Voltage: 52 Vdc
User Port Power: > 15.4Watts /350ma
Total Power: PSE2416/250W,
Input Power AC Input Voltage: 100 to 240 Vac
Requirements AC Input Current: 2A @ 100-240 Vac
AC Frequency: 50 to 60 Hz
Dimensions (W x D x H): 441 mm x 250 mm x 44mm
Weight : 4Kg
Indicators: System Indicator: AC Power (Green)
User Indicator: Channel Power
Connectors: Shielded RJ-45, EIA 568A and 568B
Environmental Conditions :
Operating Ambient Temperature: -10 to 45oC
Reliability MTBF: 296,000 hrs. @25oC
Thermal Rating 27 BTU/Hr (@240VAC)
Warranty 1-year
Regulatory IEEE 802.3af,
Compliance RoHS Compliant , CE
Safety Approvals EN 60950:2006
