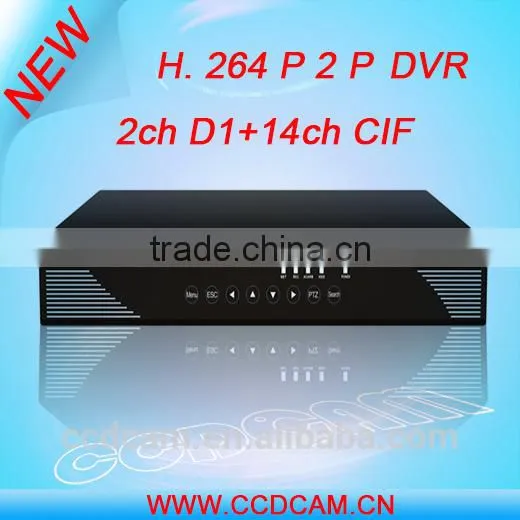

High focus H.264 Stand Alone 16 Channel DVRs Player /Hidden Clock Camera DVR

System

Main processor

High performance embedded microprocessor

Operating system

Embedded LINUX operating system

Language

English, Simplified Chinese , Traditional Chinese , Brazilian , Russian, Portuguese, Spanish , Italian , Korean , French , Czech , Hebrew , German , Finnish , Bulgarian , Swedish , Romanian , Greek, Etc.

System resources

Pentaplex function: Live, recording, playback, backup& remote access

Control mode

Front panel, USB mouse, Network, IR remote control

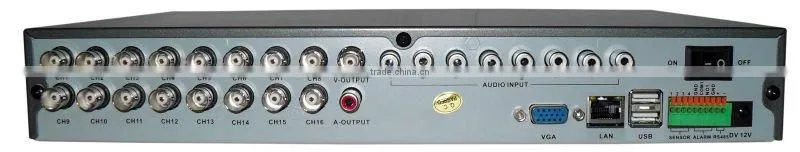

Video

Input

16CH, BNC(1.0Vp-p, 75Ω)

Standard

PAL / NTSC

Output

1 TV, BNC(1.0V p-p, 75Ω), 1 VGA

Audio

Input

8CH, RCA(200-2800mV,30KΩ)

Output

1CH, RCA(200-3000mV,5KΩ)

Display

Display split

1 / 4 / 9 / 16

Resolution

1440*900, 1360*768, 1280*1024, 1024*768, 800*600

Tour display

Support

OSD

Camera title, time, video loss, camera block, motion detection, recording

Record

Video/Audio compression

H.264/G711

Image resolution

D1(704 * 576/704 * 480), HD1(704 * 288/704 * 240), CIF(352 * 288/352 * 240)

Encoding speed

Main stream: CH1~4 D1(1~5FPS),CH5~16 CIF(1~25/30FPS)

Extra stream: CIF(1~5FPS),QCIF(1~5fps)

Image quality

1~6 level (level 6 is the best),VBR effectively

Record mode

Manual, schedule(always, motion detection, video lost, video blind, alarm), stop

Record sequence

Manual>Alarm>Motion detection>General

Alarm

Triggering event

Record, Snapshot, Alarm, Email

Motion detection

Area: 396(22 * 18), Sensitivity: 1-6 level

Video loss

Support

Alarm input

4CH

Alarm output

2CH

Playback and backup

Playback channel

1/4/9/16

Playback speed

CIF 380/440FPS

Search mode

Time/Date, Alarm, Motion detection & Exact search(accurate to second)

Playback function

Play, Pause, Stop, Fast play, Slow play, Full screen, Backup

Back mode

Flash drive/USB HDD/Network download

Network

Interface

RJ-45 port(10/100M)

Network functions

TCP/IP,UDP,DHCP,DNS,IPFilter,PPPOE,DDNS,FTP,Email,UPNP,Alarm Server,ARSP

Remote operation

Monitor, PTZ control, Playback, System setting, File download, Log information

Hard disk

Interface

2 SATA Ports, each port support max 2TB HDD or 1 DVD-RW

management

Hard disk standby technology, hard disk failure alarm

Auxiliary interface

USB Ports

2 USB Ports: 1 for mouse control, 1 for backup

RS485

PTZ Control

Environment

Power supply

DC 12V, 5A

Environment

-10°C ~+55°C /10~90%RH/86~106kpa

Dimension

1U, 335mm * 265mm * 55mm(W * D * H)

Weight

2.12KG(without HDD)
