Full d1 real time network DVR with HDMI function /cctv 8ch usb dvr cctv video
8CH D1 and real time on display, recording and playback at the same time,D1 at 200/240fps
* HDMI function, 720P and 1080P can switch automatic
* 8CH audio input, and 4CH alarm input
*Powerful network function, with 1000M adaptive network adapter, 10 users can watch online,
CMS center can operate 255pcs DVR
* Support Google, Firefox, Mac etc browser, suppot Windows,mobile,Iphone,Blackberry,Symbian,
Andriod system and 3G phone viewing
*1000M adaptive network adapter,support 10 users online, CMS operate 255pcs DVR
*Google, Firefox, Mac etc browser, suppot Windows,mobile,Iphone,Blackberry,Symbian,
Andriod system and 3G phone viewing
| Model | DVR6808L | |
| System | Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX operating system | |
| Language | English, Simplified Chinese , Traditional Chinese , Brazilian , Russian, Portuguese, Spanish , Italian , Korean , French , Czech , Hebrew , German , Finnish , Bulgarian , Swedish , Romanian , Greek, Etc. | |
| System resources | Pentaplex function: Live, recording, playback, backup& remote access | |
| Control mode | Front panel, USB mouse, Network, IR remote control | |

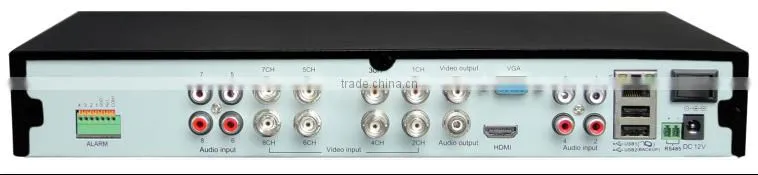

| Video | Input | 8CH, BNC(1.0Vp-p, 75Ω) |
| Output | 1HDMI, 1TV, BNC(1.0V p-p, 75Ω), 1 VGA | |
| Standard | PAL / NTSC | |
| Video Loop | No | |
| Audio | Input | 8CH, RCA(200-2800mV,30KΩ) |
| Output | 1CH, RCA(200-3000mV,5KΩ) | |
| Display | Display split | 1/4/8 |
| Resolution | 1920*1080, 1280*720,1440*900,1280*1024, 1024*768, 800*600 | |
| Tour display | Support | |
| OSD | Camera title, time, video loss, camera block, motion detection, recording | |
| Record | Video/Audio compression | H.264/G711 |
| Image resolution | D1(704 X 576/704 X 480), HD1(704 X 288/704 X 240), CIF(352 X 288/352 X 240) |
|
| Encoding speed | Main stream: CH1~8 D1(1~25/30FPS) | |
| Sub stream: CIF(1~25/30FPS),QCIF(1~25/30FPS) | ||
| Image quality | 1~6 level (level 6 is the best),VBR effectively | |
| Record mode | Manual, schedule(always, motion detection, video lost, video blind, alarm), stop | |
| Record sequence | Manual>Alarm>Motion detection>General | |
| Alarm | Triggering event | Record, Snapshot, Alarm, Email |
| Motion detection | Area: 396(22 * 18), Sensitivity: 1-6 level | |
| Video loss | Support | |
| Alarm input | 4CH | |
| Alarm output | 1CH | |
| Playback and backup | Playback channel | 1/4/8 |
| Playback speed | D1 100/120FPS ,CIF 200/240FPS | |
| Search mode | Time/Date, Alarm, Motion detection Exact search(accurate to second) | |
| Playback function | Play, Pause, Stop, Fast play, Slow play, full screen, backup | |
| Back mode | Flash drive/USB HDD/Network download | |
| Network | Interface | RJ-45 port(10/100M) |
| Network functions | TCP/IP,UDP,DHCP,DNS, IPFilter, PPPoE, DDNS,FTP,Email, UPNP,Alarm Server,ARSP, P2P, 3G,WIFI | |
| Remote operation | Monitor, PTZ control, Playback, System setting, File download, Log information | |
| Hard disk | Interface | 2 SATA ports, each port support max 2TB |
| management | HDD standby technology, HDD failure alarm | |
| Auxiliary interface | USB Ports | 2 USB Ports: 1 for mouse control, 1 for backup |
| RS485 | PTZ Control | |
| Environment | Power supply | DC 12V,4A |
| Environment | -10℃ ~+55℃ /10~90%RH/86~106kpa | |
| Dimension | 1U,335mm X 265mm X 55mm(L X W X H) | |
| Weight | 1.67KG (without HDD) | |
Packaging & Shipping:
Company Information:
Application :
Carpark,hotel,factory,station,supermaket,bank,office, household ............
where do you want to apply for ?
just an inquiry
we will design a solution for you soon~
Our advantages:
1. Good quality products and low factory direct price
2. Free technical support and professional advice all the time
3. Best sales team, timely communication and after-sale service
4. 24-hours aging test
5. Two years warranty period, CE/FCC/Rohs passed
6. High quality ,fashion designs ,reasonable and competitive price ,fast lead time .
7. OEM/ODM service
1)customized camera housing
2)print logo on the camera
3)Any your idea on camera we can help you design and put it into production .
8.Fast delivery
Samples order in stock ,and 3-7 days for bulk production
