Full HD 1080P Realtime Fixed lens wireless waterproof ip camera

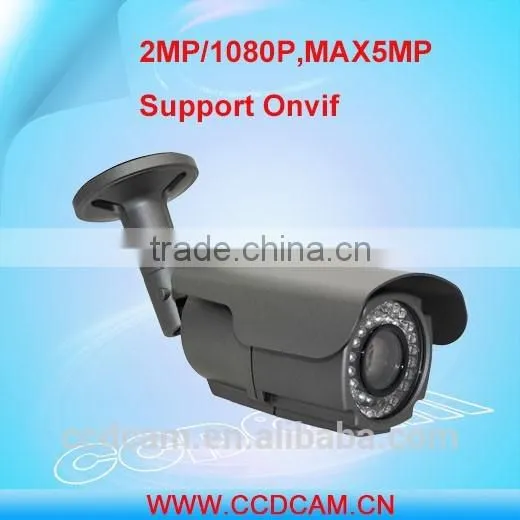

IR Waterproof IP Camera
H.264 Dual-stream encoding, ONVIF
Multiple network monitoring: Web viewer, CMS@DMSS
Day/Night(ICR), AWB, AGC, BLC
6mm 3Megapixel Lens
5x42pcs IR Led, IR range:30m
Water resistance: IP66
| Model | EC-IP5811 | EC-IP5311 | |
| Camera Type | 1080P HD IP camera | 720P HD IP camera | |
| Camera | Image Sensor | 1/2.5 inch 5 Megapixel progressive CMOS sensor | |
| DSP | TI DSP 32 dual-core , pure hardware compression | ||
| IR-LED | 42pcs LED Lights | ||
| Illuminate Distance | 30m-40m | ||
| Day/Night | IR-CUT filter | ||
| Min.Illumination | Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2 | ||
| Electronic Shutter | 1/50(1/60)s-1/100,000s | ||
| Lens | Standard 8mm Megapixel Lens (8mm,12mm,16mm,25mm) | ||
| Lens Mount | CS Mount | ||
| Digital Zoom | 7X Digital Zoom | ||
| Video | Compression standard | H.264/M-JPEG | |
| Compression technology | Dual-stream compression technology | ||
| Video frames | Real-time PAL 25fps,NTSC 30fps 1-30fpsAdjustable | ||
| output bit rate | 32Kbps~8000Kbps Adjustable | ||
| Audio coding standard | AAC Codec standard | ||
| Image | Resolution |
Main Stream: 2592×1920 10fps(500MP),2048×1536 17fps(300MP),1920×1080 25fps(200MP), 1280×960,1024×768 ,1280×720 Real-time Sub Stream:320×240@30F,352×192,320×192, 288×192,256×192; |
Main Stream: 2592×1920 8fps(500MP),2048×1536 14fps(300MP),1920×1080 20fps(200MP), 1280×960,1024×768 ,1280×720 30fps Real-time ,352×192,320×192,288×192, 256×192; |
| parameter settings | Brightness, contrast, chroma saturation,Image Quality Level | ||
| Network | protocol | RTSP ,FTP,PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,UPNP,SMTP,SIP,DDNS,DNS | |
| Alarm |
Support Motion Detection, Linkage Alarm, Linkage recording, sensor trigger alarm functions |
||
| Privacy Mask | Support | ||
| WIFI | Support WIFI 802.11bgn,WCMA 3G wireless networks | ||
| Interface | Audio Input | 1CH input,Support the pickup input | |
| Audio output | 1CH output,Support the headset or amplifier | ||
| USB Interface | U disk storage | ||
| Video output | 1CH Video output,Support CVBS standard,PAL/NTSC Optional | ||
| Network interface | RJ45 10M/100M Ethernet port | ||
| Other | Work environment | -10°C~60°C 90%RH | |
| Power supply | DC 12V/3.0A,Optional POE Remote power supply | ||
| Waterproof Criterion | IP66 | ||
| Package Size | 25X21X11CM | ||
| Gross weight | 0.6KG | ||
|
Note :two-way voice , audio , USB storage , WIFI , 3G , alarm input of POE remote power supply is optional feature , the standard does not support | |||
Application :
Carpark,hotel,factory,station,supermaket,bank,office, household ............
where do you want to apply for ?
just an inquiry
we will design a solution for you soon~
