digital crane scale

Specifications

crane scale,electric digital scale
1. LED display
2. wireless transmission available
3. accuracy classes OIML

CRANE SCALE, ELECTRONIC DIGITIAL SCALE



High strength aluminum alloyed housing
Special design for high temperature casting industry (<1600°C)
Super-bright LED display (height:30mm)
Revisable acceleration of gravity
Three-dot linear calibration
Automatic zero tracking
Automatic battery voltage checking
Automatic standby and power-saving mode in 5mins without use
Automatic shut-off in 1.5 hours without use
Automatic data saving when power-off
Effective infrared remote control distance >10m
Sealed and maintenance-free rechargeable 6V/10Ah battery
Accuracy Class                    OIML III
Tarring Range                      100% scale capacity
Display Steady Time             5-10 seconds

 Ultimate Safety Factor           5
Maximum Safety Overload     125% scale capacity
Minimum safety distance between the crane scale and the surface of hot  steel liquid : 1000°C/1.5m,1200°C/1.6m,1400°C/1.8m,1600°C/2.0m

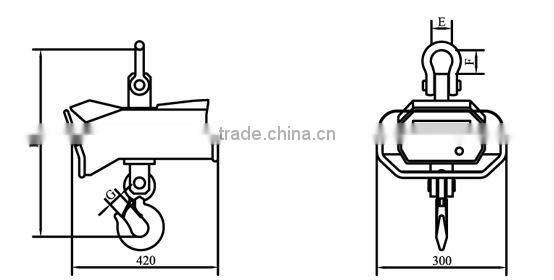

Model	Capacity	Graduation	Number	Net Weight	Dimension (mm)
	(kg)	(kg)		(kg)	H	E	F	G
ZHCS-I-1T	1000	0.5	2000	26	465	56	65	25
ZHCS-I-2T	2000	1	2000	30	490	56	65	32
ZHCS-I-3T	3000	1	3000	36	570	72	90	36
ZHCS-I-5T	5000	2	2500	42	640	90	110	50
ZHCS-I-10T	10000	5	2000	77	920	140	230	60
ZHCS-I-15T	15000	5	3000	85	980	140	230	70
