Home > Products > ELECTRIC CHAIN HOIST > SG type electric chain hoist

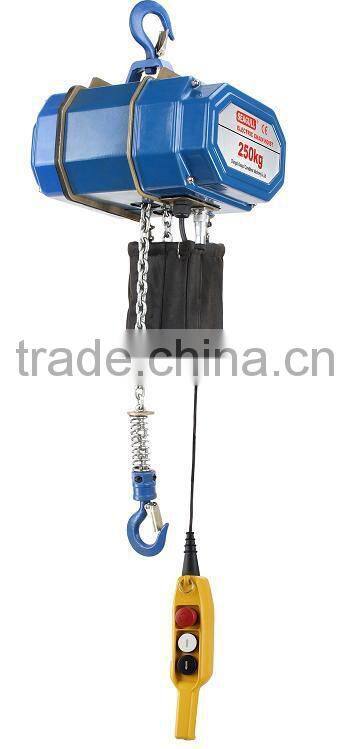

SG type electric chain hoist
USD $150 - $300
/ Piece
5 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- Ningbo China
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SEA EAGLE | |
| Model Number | SG TYPE | Usage | Construction Hoist | |
| Power Source | Electric | Sling Type | Chain | |
| Maximum Lifting Weight | 0.25T~5T | Maximum Lifting Height | 3M,6M | |
| Lift Speed | 7 M/MIN | Certification | CE GS |
Product Description
Specifications
1. unique overloading safety protection setting2. all tested to 125% safe working load
Its unique overloading safety protection setting and electrcal machine hot protection setting make sure of the higher reliability of this product.
All units has been tested to 125% safe working load.
| Item No. | Rated load | lift | Lifting Speed | Hoist Motor 3-phase | Load chain | Test Load (ton) | |||||
| (m/min) | Output(kw) | Ins Class | %ED | Dia | No.of falls | ||||||
| ton | m | 50Hz | 60Hz | 50Hz | 60Hz | mm | |||||
| ZHEH-SG-0.5T | 0.5 | 3 | 6.3/2.1 | 7.4/2.5 | 0.8/0.25 | 1/0.33 | F | 40 | 7.1x21 | 1 | 0.625 |
| 6 | |||||||||||
| ZHEH-SG-1T | 1 | 3 | 6.3/2.1 | 7.4/2.5 | 1.6/0.54 | 1.8/0.6 | 1 | 1.25 | |||
| 6 | |||||||||||
| ZHEH-SG-2T | 2 | 3 | 3.2/1 | 3.7/1.2 | 2 | 2.5 | |||||
| 6 | |||||||||||
| ZHEH-SG-3T | 3 | 3 | 2.1/0.7 | 2.5/0.8 | 3 | 3.75 | |||||
| 6 | |||||||||||
| ZHEH-SG-5T | 5 | 3 | 1.26/0.4 | 1.48/0.5 | 5 | 6.25 | |||||
| 6 | |||||||||||
| Item No. | Rated load | lift | Lifting Speed | Hoist Motor 1-phase | Load chain | Test Load (ton) | |||||
| (m/min) | Output(kw) | Ins Class | %ED | Dia | No.of falls | ||||||
| ton | m | 50Hz | 60Hz | 50Hz | 60Hz | mm | |||||
| ZHEH-SG-0.25T-1 | 0.25 | 3 | 7 | 8.4 | 0.6 | 0.6 | F | 20 | 5x15 | 1 | 0.312 |
| 6 | |||||||||||
| ZHEH-SG-0.5T-1 | 0.5 | 3 | 5 | 6.3 | 0.8 | 1 | 40 | 7.1x21 | 1 | 0.625 | |
| 6 | |||||||||||
| ZHEH-SG-1T-1 | 1 | 3 | 5 | 6.3 | 1.2 | 1.4 | 1 | 1.25 | |||
| 6 | |||||||||||
| ZHEH-SG-2T-1 | 2 | 3 | 2.5 | 3.2 | 2 | 2.5 | |||||
| 6 | |||||||||||
| ZHEH-SG-3T-1 | 3 | 3 | 1.7 | 2 | 3 | 3.75 | |||||
| 6 | |||||||||||
| ZHEH-SG-5T-1 | 5 | 3 | 1 | 1.26 | 5 | 6.25 | |||||
| 6 | |||||||||||
