Help Center4 Channals 720P Security Camera Outdoor IR Night Vision Security Camera System
Related Products
-
4 Channals 720P Mini Camera P2P Onvif Digital CameraUS$ 96.00 - 96.00MOQ: 1 Piece -
4CH 960P Cctv Camera System Night Vision Infrared Camera DigitalUS$ 96.00 - 96.00MOQ: 1 Piece
-
Megapixel Security Camera Outdoor Night Vision Infrared Infrared CameraUS$ 96.00 - 96.00MOQ: 1 Piece
-
4CH 960P Ahd Kit IR Night Vision Camera SecurityUS$ 96.00 - 96.00MOQ: 1 Piece
-
4MP H.265 IP Camera Outdoor Night Vision Infrared 1080P Full hd CameraUS$ 62.00 - 62.00MOQ: 1 Piece
Cameras features:
4* 960P AHD Camera
1/3 inch 1.3 Megapixel CMOS sensor
High resolution : 1280*960

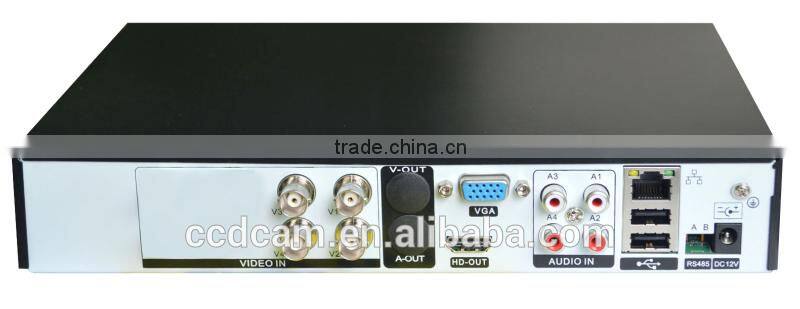

AHD DVR Features:
Support embedded Linux OS
4CH 960P Simultaneous playback
Support 4TB HDD, all channels support Main stream
| AKIT3134 | ||

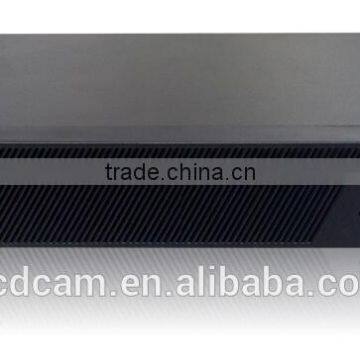

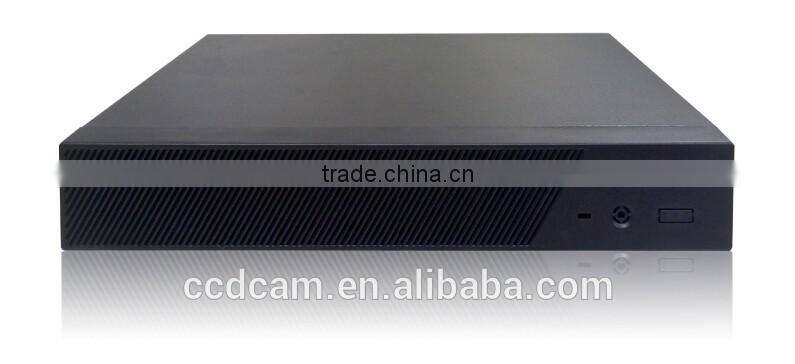

| AHD DVR | ||
| System | Main processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX operating system | |
| System resources |
Pentaplex function: Live, recording, playback, backup& remote access |
|
| Control mode | USB mouse, Network | |

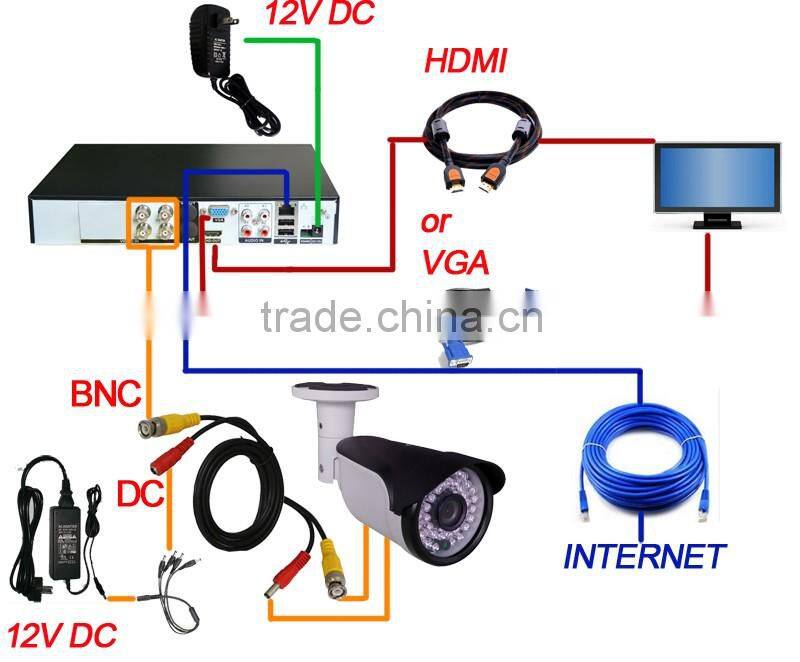

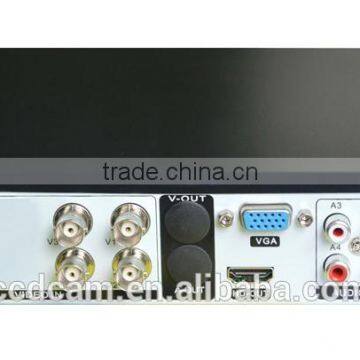

| Video | Input | 4CH,AHD/Analog input BNC(1.0Vp-p, 75Ω) |
| Output | 1HDMI, 1 VGA | |
| Standard | PAL / NTSC | |
| Audio | Input | 4CH, RCA(200-2800mV,30KΩ) |
| Display | Display split | 1CH 720P / 4CH 960H |
| Resolution |
1080P(1920*1080), 1080H(960*1080) , 720P(1280*720), 960H, D1, CIF |
|
| OSD | Camera title, time, video loss, camera block, | |
| motion detection, recording | ||
| Record | Video resolution | H.264 |
| Audio resolution | adpcm,G711 | |
| Image resolution |
1080P(1920*1080), 1080H(960*1080) ,720P(1280x720) 960H(960x576,960x480),D1 |
|
| Encoding speed |
Main stream: A :1080H/720P@16FPS , 960H/D1@25FPS IP:1080P/960P/720P@1~25FPS |
|
| Sub stream: CIF(1~5FPS),QCIF(1~5FPS) | ||
| Image quality | 1~6 level (level 6 is the best),VBR effectively | |
| Record mode | Manual,always, motion detection, alarm | |
| Record sequence | Manual>Alarm>Motion detection>General | |
| Alarm | Triggering event | Record, Snapshot, Alarm, Email |
| Motion detection | Area: 192(16*12), Sensitivity: 1-6 level | |
| Video loss | Support | |
| Playback and backup | Playback channel | 1ch 1080P , 4ch 1080H/720P/960H |
| Playback speed | 960H 100/120FPS ,720P 100/120FPS | |
| Search mode | Time/Date, Alarm, Motion detection Exact search(accurate to second) | |
| Playback function | Play, Pause, Stop, Fast play, Slow play, full screen, backup | |
| Back mode | Flash drive/USB HDD/CD-DVD RW/Network download | |
| Network | Interface | RJ-45 port(10/100M) |
| Network functions | TCP/IP,UDP,DHCP,DNS,IPFilter,DDNS,FTP,Email,UPNP,P2P | |
| Remote operation |
Monitor, PTZ control, Playback, System setting, File download, Log information |
|
| Hard disk | Interface management | 1 SATA ports, each port support max 4TB HDD. |
| Auxiliary interface | USB Ports | 2 USB Ports: 1 for mouse control, 1 for backup |
| Environment | Power supply | DC 12V |

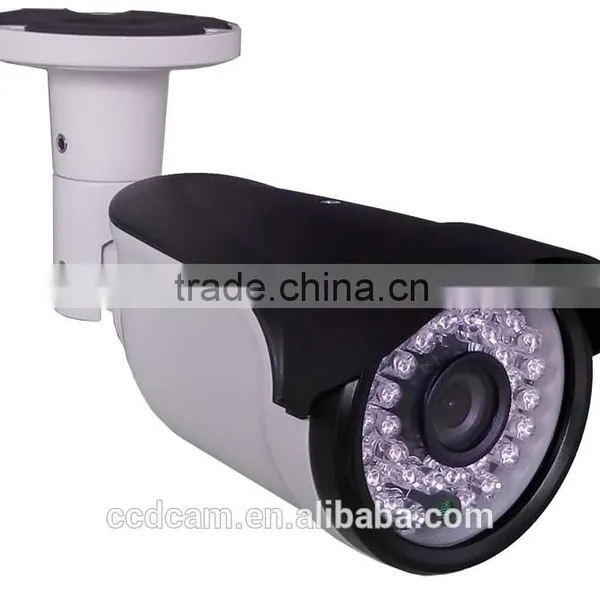

| 4*AHD Camera | ||

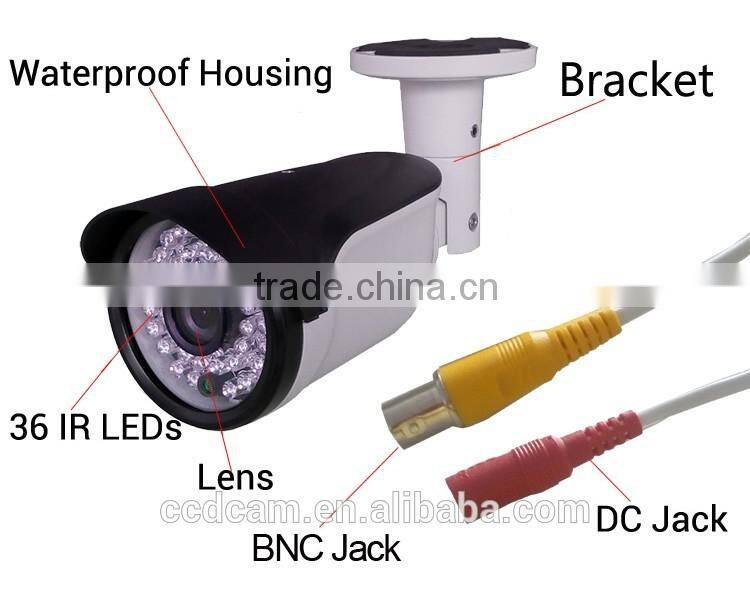

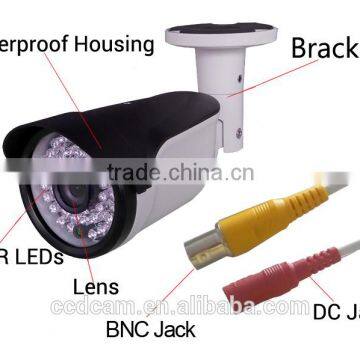

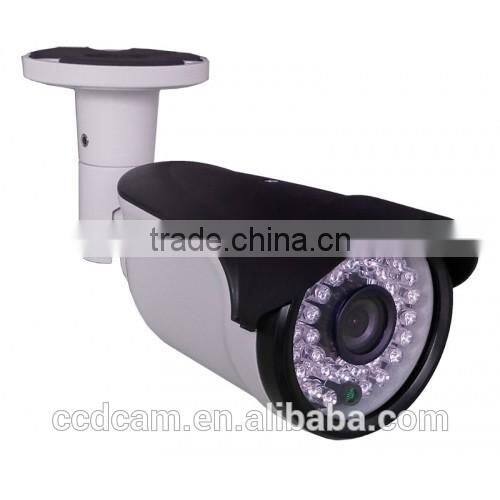

| Camera Type | 960P AHD camera 1.3 megapixel 1/3 CMOS | |
| Effective Pixels | PAL:1280x960@25fps NTSC:1280x960@30fps | |
| IR-LED | 36pcs IR led 30m IR Distance | |
| Day/Night | IR-CUT filter Color 1.0Lux/F1.2,B/W 0.1Lux/F1.2 | |
| Electronic Shutter | 4/25-1/45,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Lens Mount | C/CS | |
| Output | 1CH AHD Video output | |
| Waterproof Criterion | IP66 | |
| Power | DC 12V | |
| Image | Auto BLC,Auto White Balance | |
| Max tansmission | common 75-3 lines can be up to 500 m | |
| Kits | ||

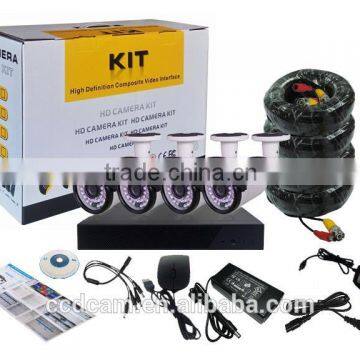

| Pcaking list |

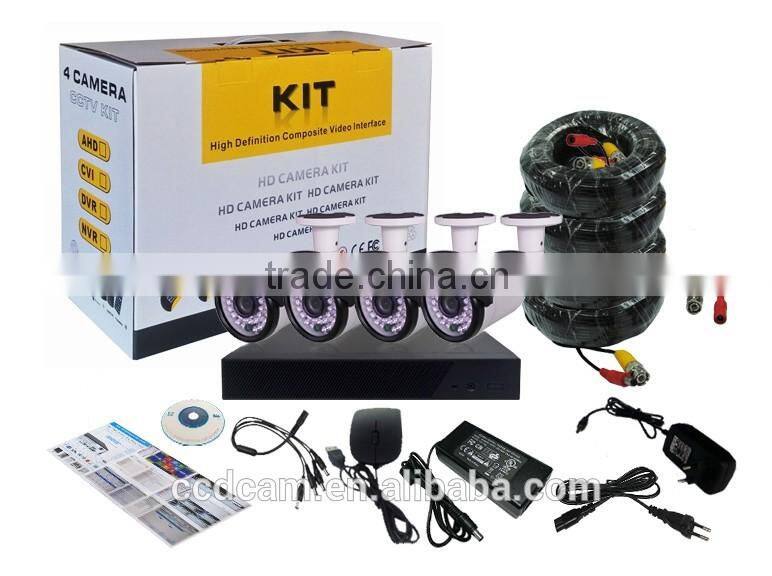

1*AHD DVR; 4*1.3MP AHD cameras;4*20M (BNC+DC) cables; 1*quick start guide; 1*mouse; 1*CD; 1*power for DVR; 1*power for cameras; 1* one split four DC cable |
|
| Work environment | -10℃~60℃90%RH | |
A(TVI/AHD/Analog) 1080H/720P/960H/D1
IPC(IP camera) 1080P/960P/720P
A+IPC=4CH
P2P WEB:
App named: Eseecloud ,support Android and iPhone/iPad
1. Good quality products and low factory direct price
2. Free technical support and professional advice,timely communication and after-sale service
3. 24-hours aging test,two years warranty period, CE/FCC/Rohs passed
4. OEM/ODM service
1)customized camera housing
2)print logo on the camera
3)Any your idea on camera we can help you design and put it into production .
5.Fast delivery , 3-7 days for production
6.Accept paypal, tt, western union payment.
7. Delivery by DHL, EMS, Fedex, air, sea etc.
Cetificate
