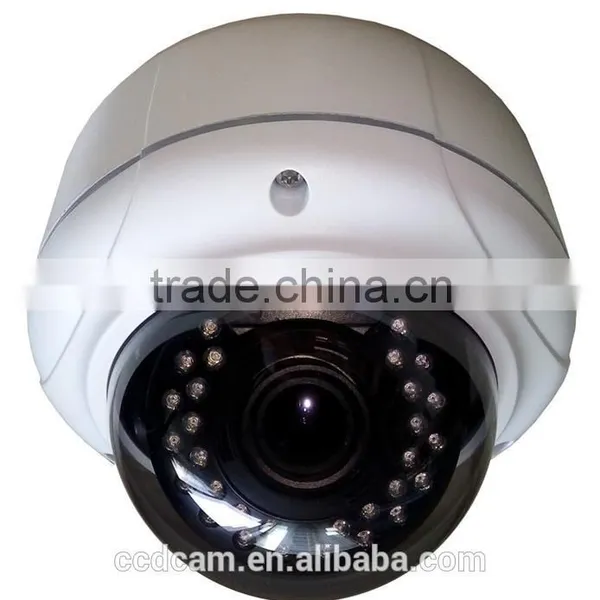

4MP H.265 IP Camera Outdoor night vision infrared 1080P full hd camera

Name: 4MP H.265 IP Camera Outdoor night vision infrared 1080P full hd camera
Brand: CCDCAM
Availability: InStock

FOB Price

US$ 62.00 - 62.00 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CCDCAM
Model Number	EC-IV7423P	Type	IP Camera
Style	Bullet Camera	Sensor	CMOS
Technology	NetWork	Special Features	Vandal-proof

Product Description

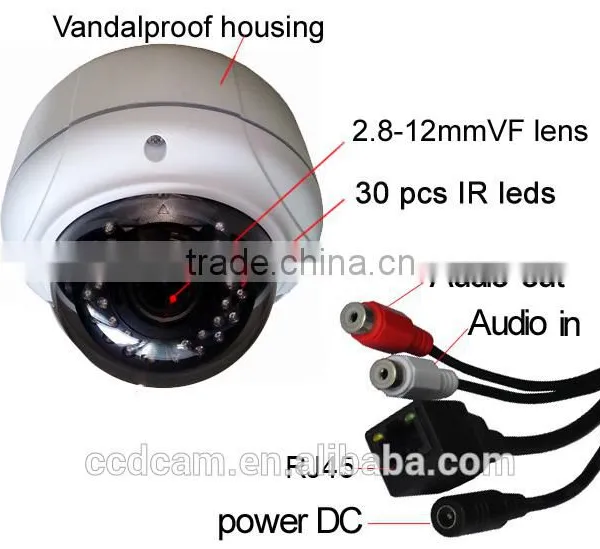

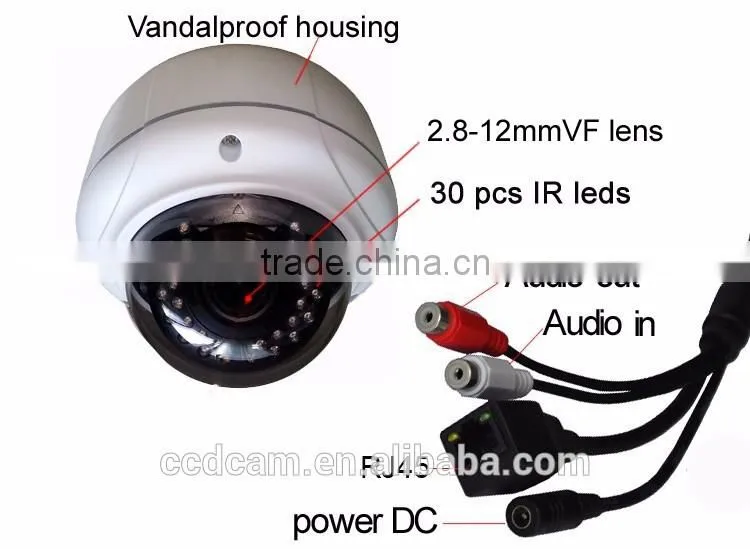

Cameras features:

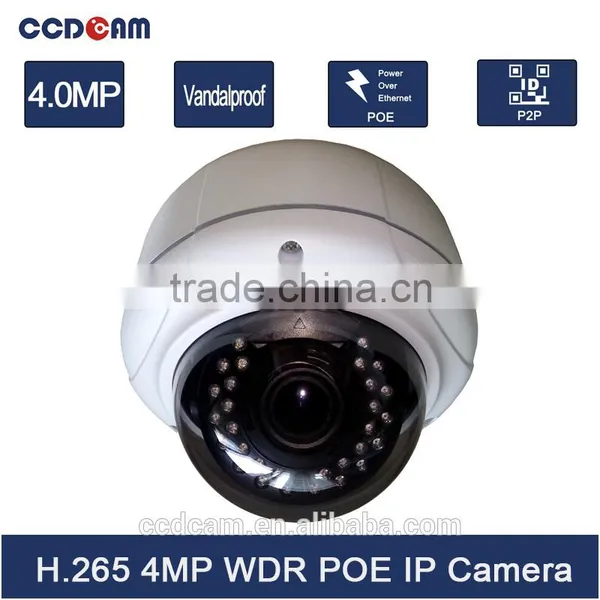

4 MP Vandalproof DWDR IP Camera with POE

1/3 inch 4 Megapixel OV4689 CMOS sensor+ H3516D DSP

High resolution : 4MP 2592*1520*22fps

3MP 2304*1296*25fps

2MP 1920*1080*25fps

1MP 1280*720 *25fps

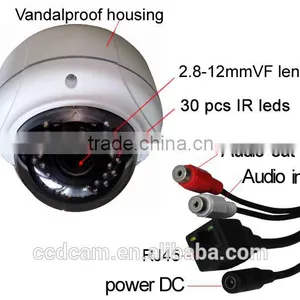

2.8-12mm VF lens

30pcs Φ5 leds,IR range 25M

Support H.265 / h.264 / MJPEG output

Model		EC-IV7423P
Camera Type		4.0MP real-time DWDR IP Camera
Camera	Image Sensor	1/3" CMOS OV4689 + HI3516D
	Effective Pixels	2592(H)x1520(V)
	Day/Night	IR-CUT filter
	Min.Illumination	Color 0.05Lux/F1.2 , B/W 0.01 Lux/F1.2
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	2.8-12mm Fixed Lens
	Lens Mount	CS/M12 Mount
	IR-LED	30pcs 5 IR LED
	Illuminate Distance	25m IR distance
Compression	Compression Standard	H.265/ H.264 Main Profile/ MJPEG
	Video Frames	Real-time PAL/NTSC 2MP/3MP/4MP@1~30FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	Quality	3D-DNR,BLC,AWB,auto ISO
	Resolution	Main Stream:
		2592×1520 22fps(4MP),2304×1296(3MP) 25fps
		1920×1080 25fps(2MP),1280×720(1MP) 25fps
		Sub Stream:640×360,720×480(1-25fps)
Network	Parameter Settings	WEB configure and OSD supported, Real time recording,
	Parameter Settings	Transmission and playback, Download;Motion detection
	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream, Heartbeat, Password protection
	Protocol	HTTP/Onvif/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/P2P
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording,
	Alarm	Sensor trigger alarm functions
Interface	Video Output	RJ45
Interface	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
Audio interface	Audio encord	G.711
	Audio input	1ch
	Audio output	1ch
Other	Work Environment	-10°C- +60°C;≤95%
	Waterproof Criterion	IP66
	Power Supply	DC 12V / POE IEEE802.3at/af

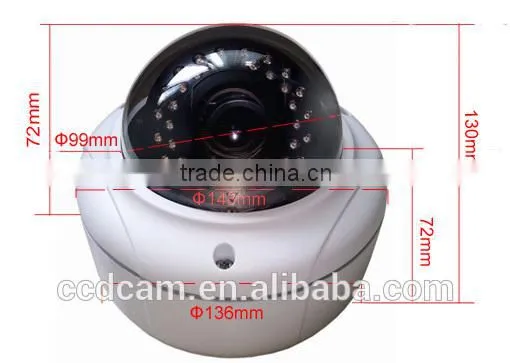

	Package Size	15x15x14cm
	Net Weight	1.2kg

H.265 IP Camera

Packing

Lens

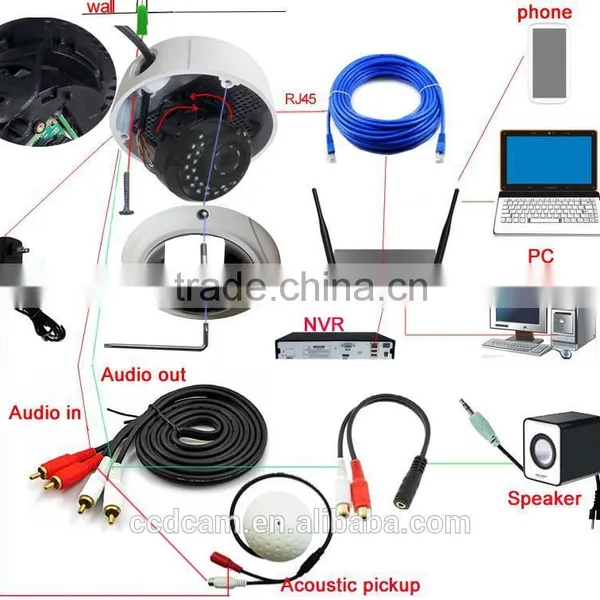

Application

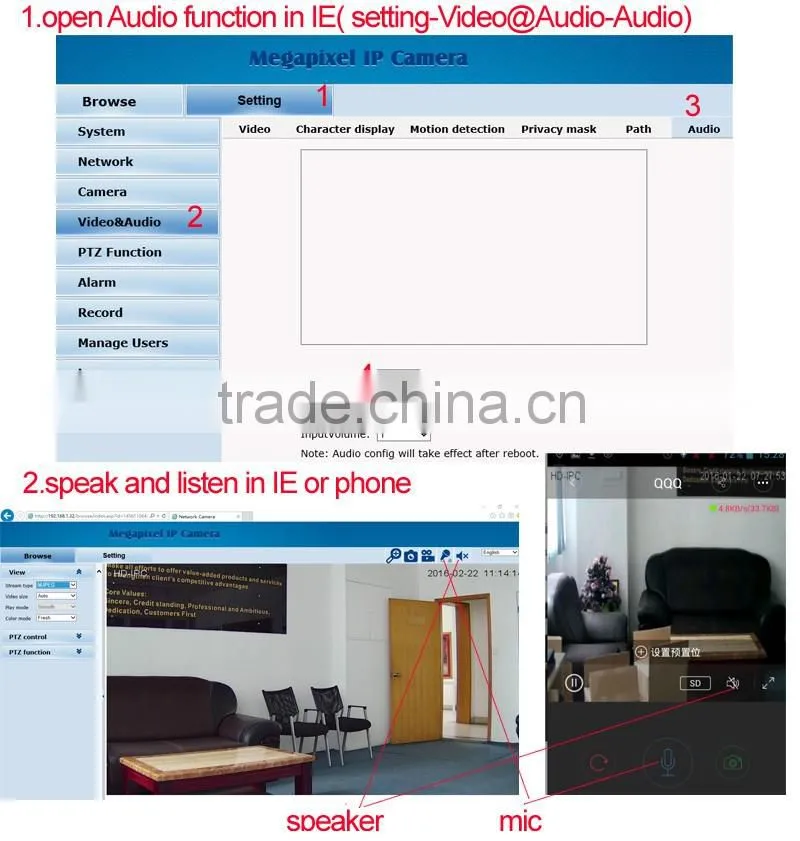

Two-Way Audio

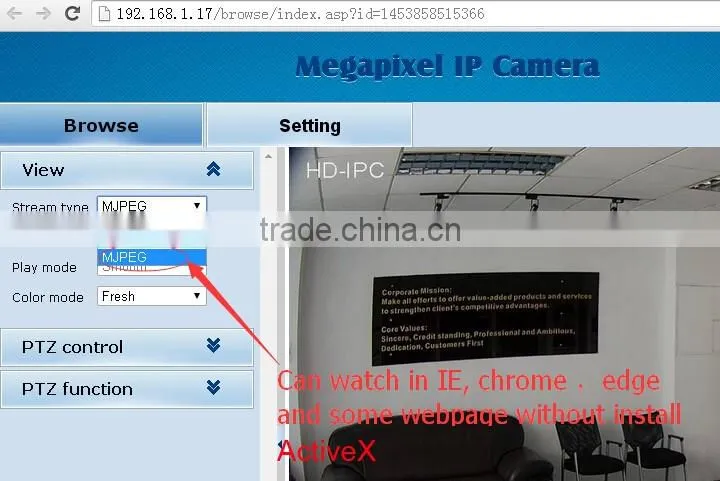

MJPEG

H.265

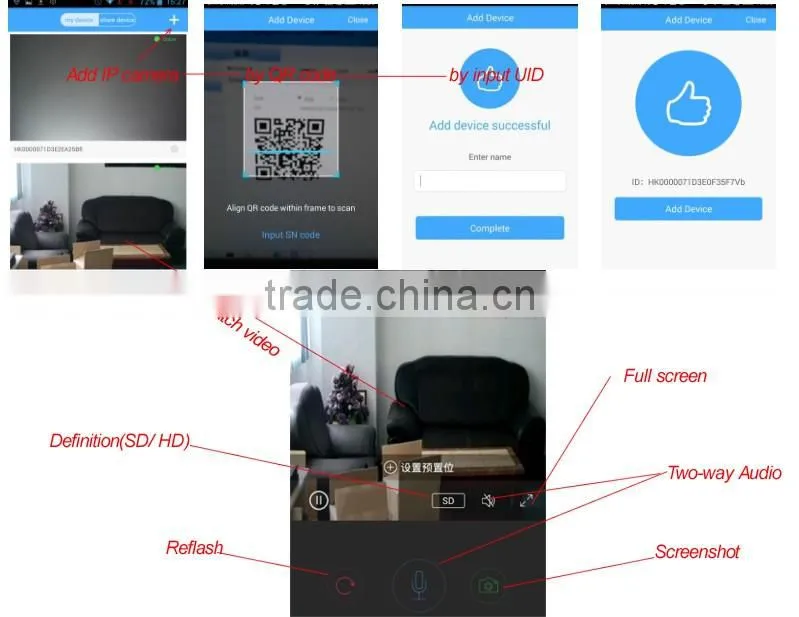

Phone Client

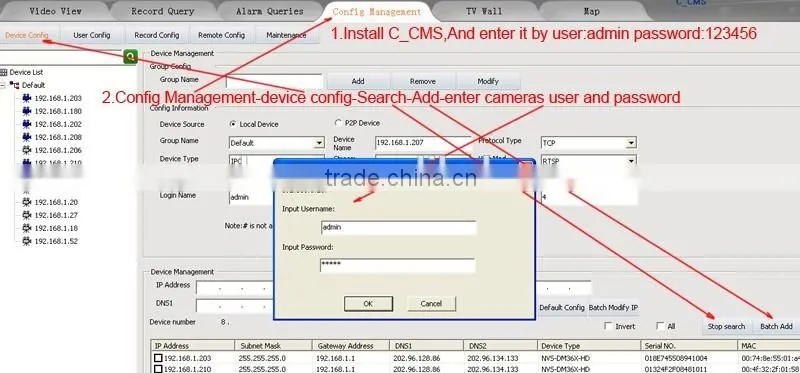

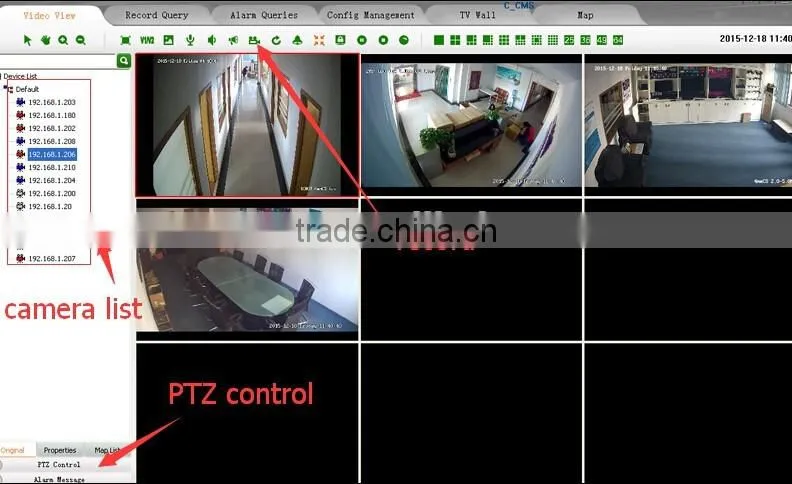

Free CMS

About Factory

Exhibition

Our Company

How to contact us:

1. send inquiry to me

2. add my skype: ccdcamp

3. add my whatsapp:+8613682455592
