Product Details
Condition: | New | Product Type: | Other, PU Foam Machine | Place of Origin: | Hebei, China |
Brand Name: | Golden Deer | Model Number: | HBGX-PU Foaming Machine | Voltage: | 380V |
Power(W): | 60KW | Dimension(L*W*H): | Optional according to types | Weight: | 1500KG |
Certification: | CE, Other, CE, ISO9001 | Warranty: | 1 year warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
ISO9001& CE & BV27 years' trusted plant
Lifetime Service
Polyurethane High Pressure Spray Machine
We are the largest and most experienced machinery trusted manufacturer in China .
With powerful R&D team,we have been in PU/Polyurethane Continuous Insulated Panel Production Line since 1987. More Details, CONTACT NOW !
Mob:0086-13832148917 , skyp: hbgxmachinery07 , wechat: s2729355624
Polyurethane Insulation Painting Machine/PU Painting Machine/Polyurethane High Pressure Spray Equipment
1.This machine is used for continuous foaming for 2-15cm thickness panel, for example:PU insulation panel,PU sandwich panel.
2.The main components of the machine are imported original components,overall appearance, compact structure,easy maintenance,modular design approach.Our professional designers can meet any of your requirements.
3.The machine based on polyether polyol and polyisocyanate Mdi in the blowing agent, catalyst, emulsifiers and a variety of chemical additives present, after the foaming reaction and obtain foam.
Foaming agent:two-components, four components, six-components optional as buyer's inquiry .
PU Foaming Machine Technical Parameter:
Output | Mdi:240-1200kg/g |
Polyol:200-1000kg/h | |
Working Pressure | 100-150bar |
Power | 60KW |
Power Supply | 3*380V/50HZ |
Control Voltage | AC220V/24V |
Componets of the machine:
1.Storage Components:
Double insulation stainless steel tanks.
Electrical resistance heater and cooling water solenoid valves for temperature conditioning
Chiller for optional
2.Metering Unit
High precision axial piston pump,Variable output, robust manual adjustment via handwheel with integral precision measuring scale
Magnetic coupling ensures no material leakage
Digital pressure gauge for controlling pressure
3.Mixing Head
Auniform foam mixture distribution on the continuously moving facing
High pressure impingement style mixing,
Self-cleaning design
4.Electrical control system
Electric wiring and connections for each equipment part of the high pressure foam dispensing machine.
Electric control cabinet complete with electric power part
PLC,electric controls and devices for high pressure foaming machine
Alarm function with acoustic warning.
PU Foaming Machine Working Process Draft:
Application of the machine:

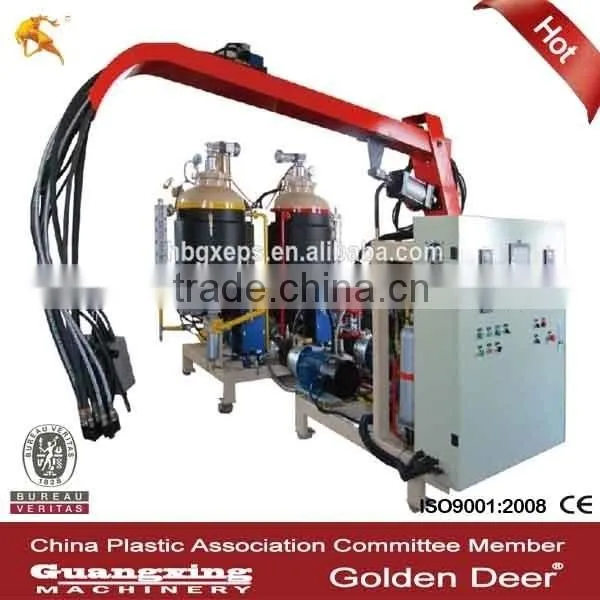

Appearance of the PU Foaming Machine :
In wooden case, plastic paper or wrapped with film, etc.
Within 30-35 days after receiving advance payment or L/C.
Professional R&D Team:
Specializes in desiging,manufacturing and supplying custom engineered.
Our designers can meet any of your requirements.
Professional after-sale service.
1 Year warranty.
Lifetime Technical Service.
114th,115th Canton Fair.
Certification
Glimpse of the Plant
1 Equipment should be kept clean and tidy countertops.
2 Strengthen the machinery and equipment maintenance work .
If you interest our product , pls contact me for more details :
Mob:0086-13832148917 , skyp: hbgxmachinery07 (gmail) , wechat: s2729355624
