Widely Used Polyurethane Insulation Foam Machine

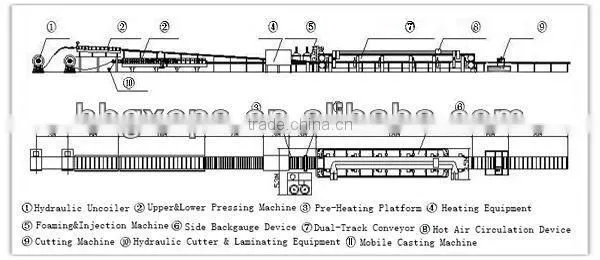

The whole line mainly include:
- Decoiler System,
- High Pressure PU Foaming Machine,
- Double Belt Conveyor,
- Automatic Cutting System,
Our machine can meet your demands with various soft surface: non-woven fabrics,aluminum foil, glass fiber mat, kraft paper,etc.
Advantages:
1.The equipment is accurate and durable.
2.The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the piece has a smooth surface.
3.The side block and adhesive tape recirculation device can guarantee the sealing of the piece and its demoulding.
4.The double-crawler laminating system is of pressure proof, and can achieve a continuously automatic production and limit the foaming material within the mould, ensuring a stable feature in product size.
5.The following conveying and cutting systems can work simultaneously to produce plates of any length.
Technical Parameters:
ITEM |
UNIT |
PARAMETER |
Effective length of laminating machine |
mm |
18000--36000 |
Effective width of laminating machine |
mm |
1200 |
Effective height of laminating machine |
mm |
20--100 |
Laminating machine temperature control range |
°C |
≤80 |
Foaming casting machine flow |
Kg/min |
6--25 |
Anti-pressure capability of laminating machine (25°C) |
Mpa |
3 |
Anti-pressure capability of laminating machine (70°C) |
Mpa |
2.8 |
Suitable production thickness |
mm |
20--100 |
Capacity |
m³/24h |
200 |
Dimension L*W*H |
Mm |
(40000--60000)*3000*4000 |
Installed power |
KVA |
45 |
Total weight |
Tons |
40--72 |

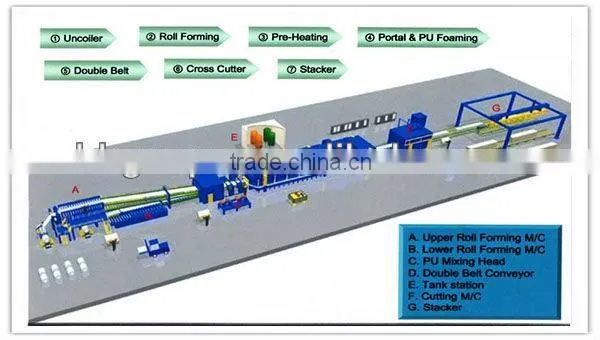

Working flow:

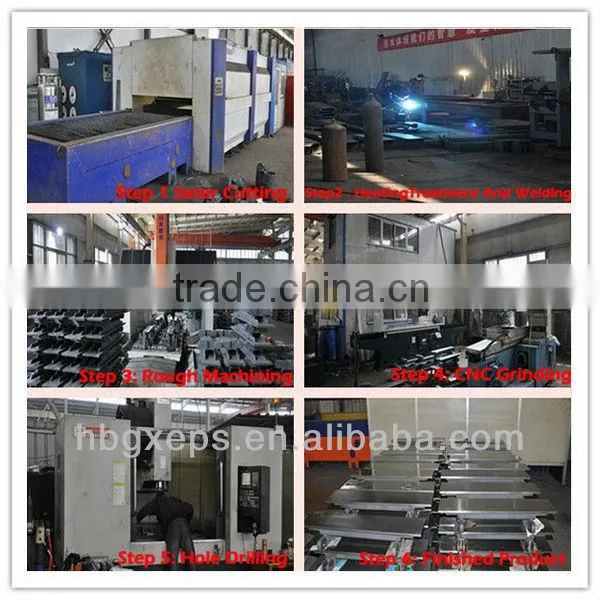

Processing of the machine in plant
----------------------------------------------------------------------------------
Chain plate processing:
The heating treatment bring the chain plate a high strength, non-deformation and high resistance to the expansive force from high-density products.
Laser cutting and hole drilling processing provides the precise standard of the spare parts.

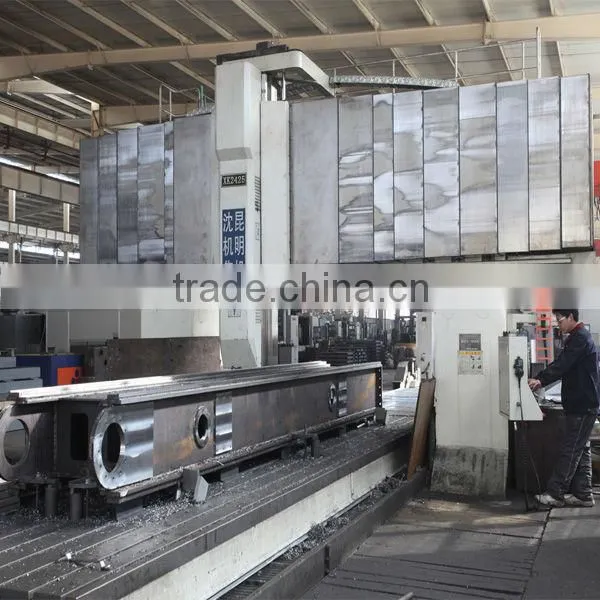

Frame Processing:
CNC grinder guarantees the smooth surface of the frame.
Assembling:
Product samples of the machine:

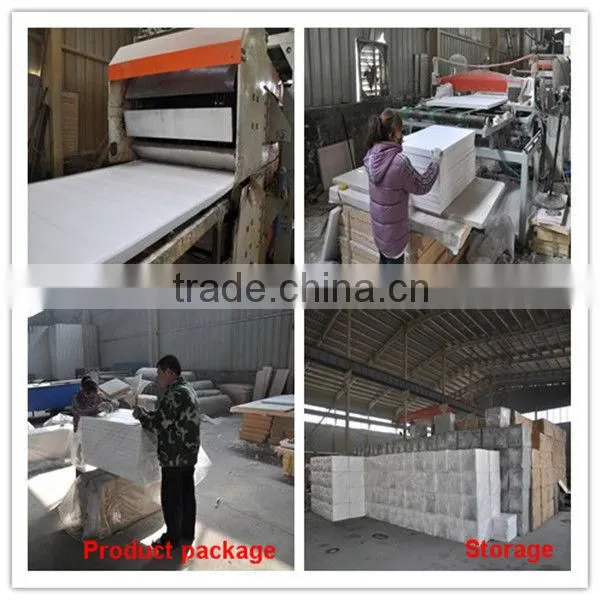

Final products samples and applications:

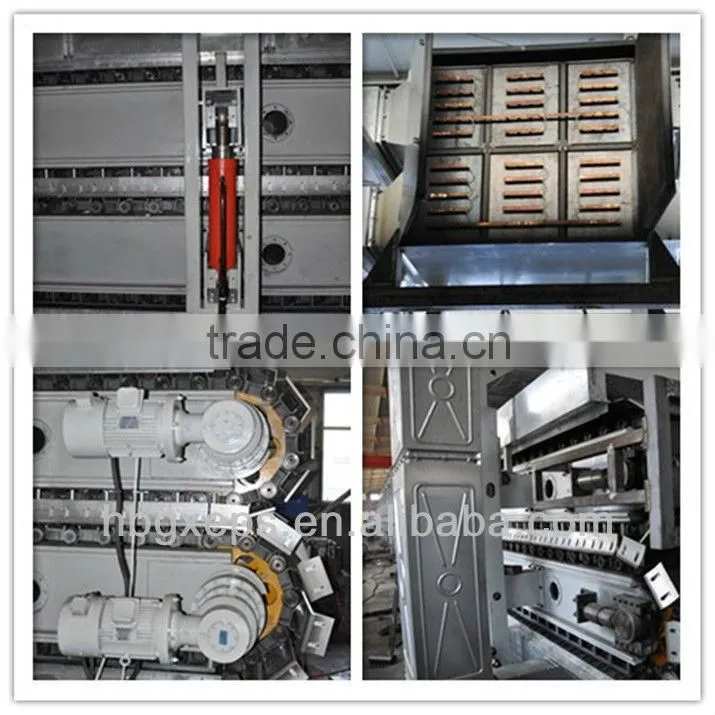

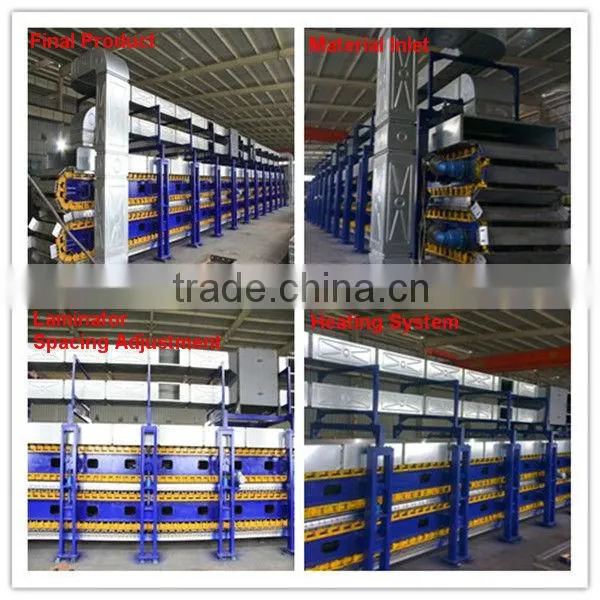

Appearance of the machine:
Seaworthy packaging
Turn-key projects service
27 years' designing, manufacturing and supplying custom engineered experience
Professional R&D Team
114th China Import And Export Fair(Canton Fair) ly21
115th China Import And Export Fair(Canton Fair) 7.1 C39
Member of China Foam Association
Certification

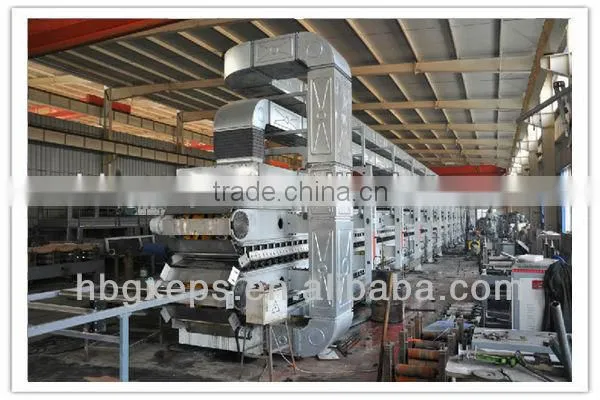

Plant overview:
1 This line is a continuous production line.
2 It used to make rigid polyurethane(short as PU) for building insulation.
3 1 Year warranty
4 Outstanding technical&after-sale services, lifetime technical support
Please be free to contact with us if you are interested.
