Specifications
1. Machine for Polyurethane Foam Pipe Insulation2. ISO9001 & CE
3. Lifetime Tech Support
4. 20 years' Manufacturing Experien
Russia Market Machine for Polyurethane Foam Pipe Insulation
Product Introduction
1 The equipment is accurate and durable.
2 The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the piece has a smooth surface.
3 The side block and adhesive tape recirculation device can guarantee the sealing of the piece and its demoulding.
4 The double-crawler laminating system is of pressure proof, and can achieve a continuously automatic production and limit the foaming material within the mould, ensuring a stable feature in product size.
5 The following conveying and cutting systems can work simultaneously to produce plates of any length.
Products specification:
ITEM |
UNIT |
PARAMETER |
Effective length of laminating machine |
mm |
18000--36000 |
Effective width of laminating machine |
mm |
1200 |
|
Effective height of laminating machine
|
mm |
20--100 |
Laminating machine temperature control range |
°C |
≤80 |
Foaming casting machine flow |
Kg/min |
6--25 |
|
Anti-pressure capability of laminating machine (25°C) |
Mpa |
3 |
|
Anti-pressure capability of laminating machine (70°C)
|
Mpa |
2.8 |
Suitable production thickness |
mm |
20--100 |
Capacity |
m³/24h |
200 |
Dimension L*W*H |
Mm |
(40000--60000)*3000*4000 |
Installed power |
KVA |
45 |
Total weight |
Tons |
40--72 |

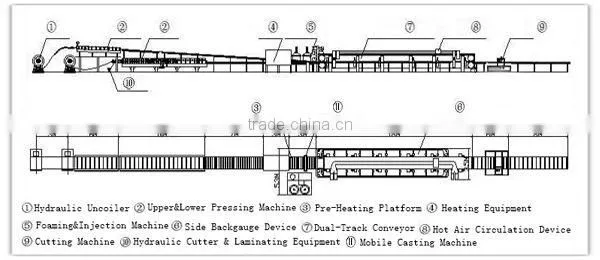

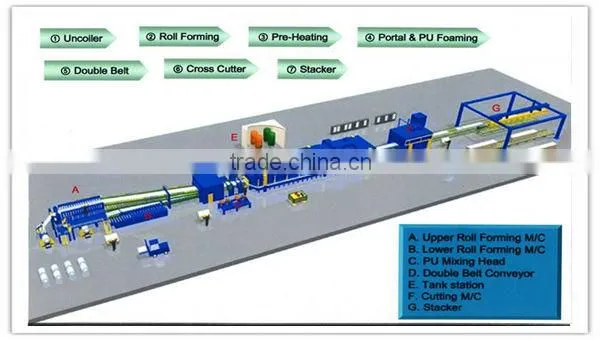

PU Board Production Line (Work Flow)
Production Procedure
Overview

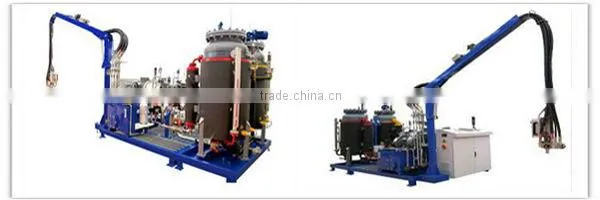

PU Foaming Machine

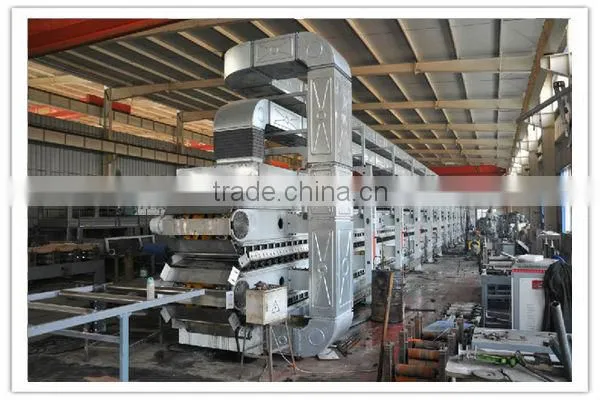

Main Heating Machine

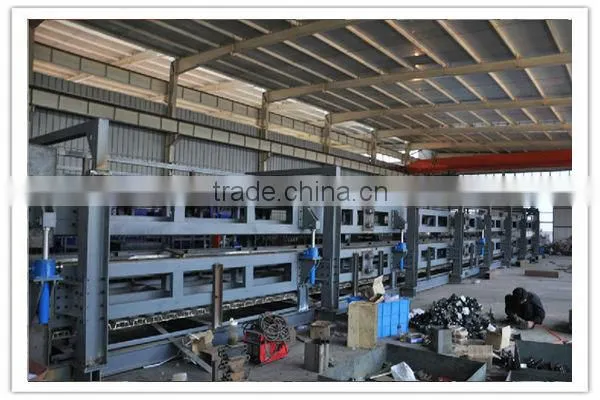

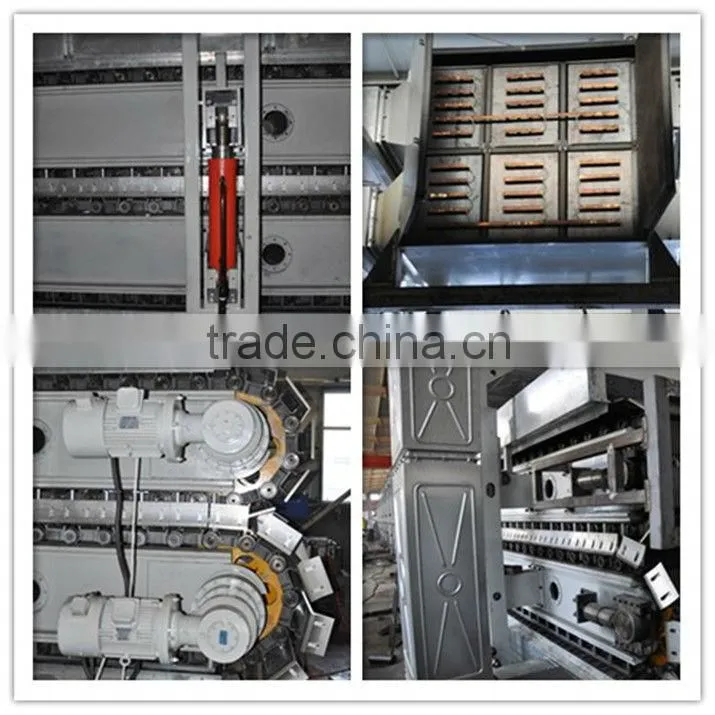

Main Parts

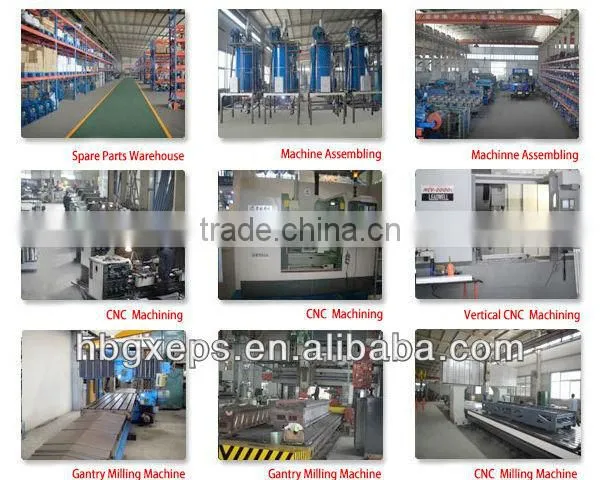

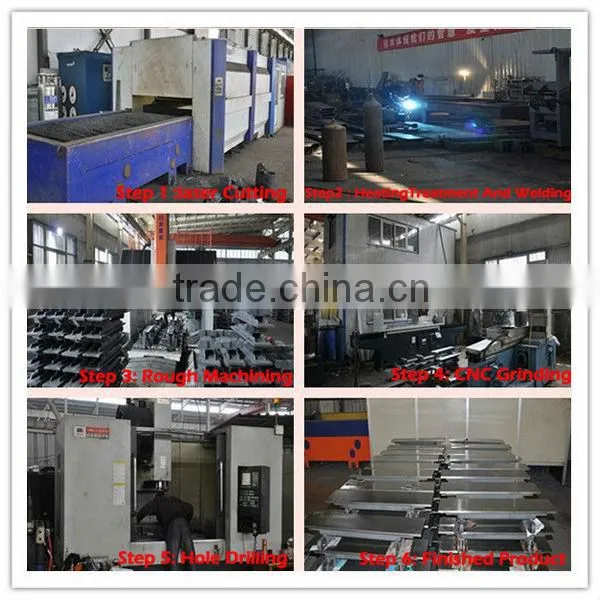

Manufacture Plant

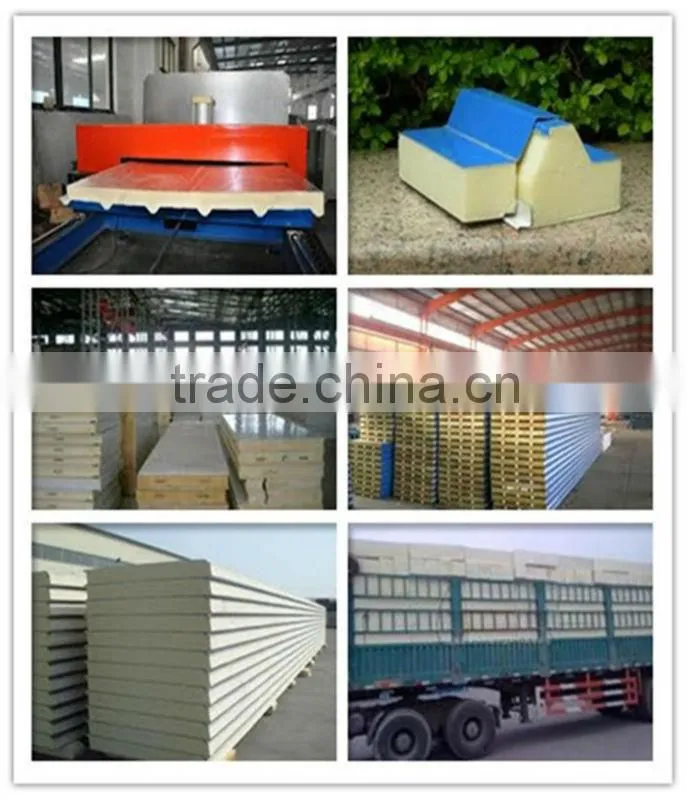

Products and Transportation

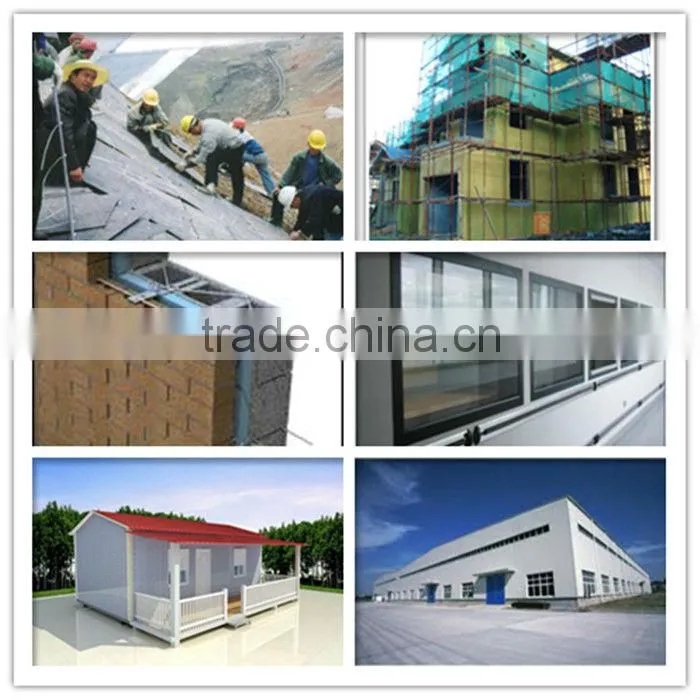

Application
Machine for Polyurethane Foam Pipe Insulation
Certification

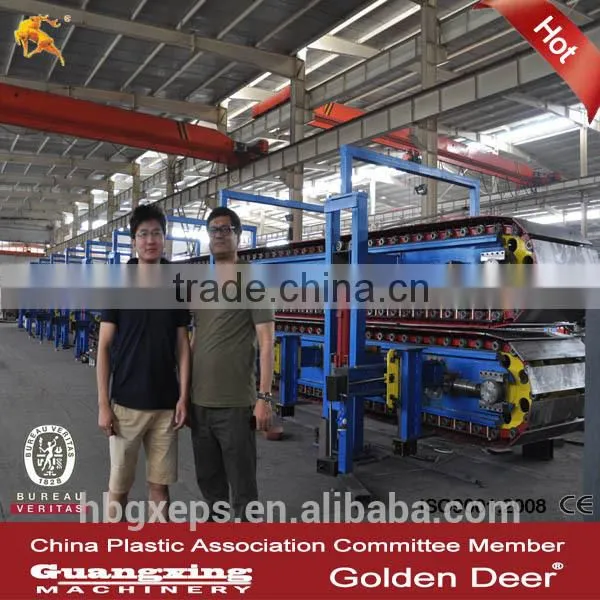

Glimpse of Plant
Any Questions Please feel free Contact with us! Look forward To Your Email.
