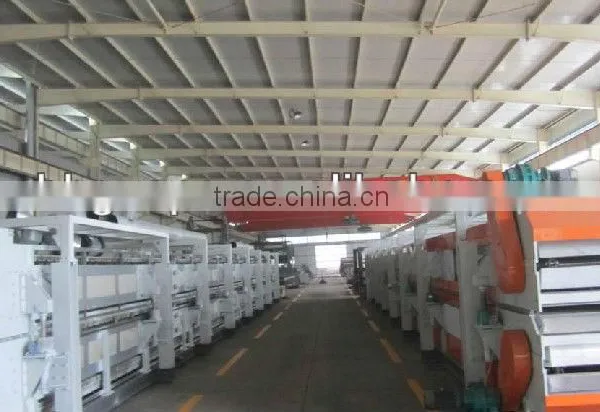

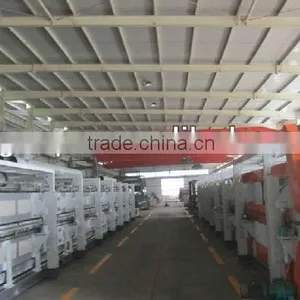

Help CenterCrawler Type Poyurethane Foam Board Automatic Production Line
Related Products
-
Phenolic Form Production MachineUS$ 200,000 - 500,000MOQ: 1 Set -
Guangxing Machinery New Continuous Phenolic Rigid Foam Production Line for Air Condition DustUS$ 360,000 - 500,000MOQ: 1 Set
-
New Insulation Material Phenolic Resin Board Forming MachineUS$ 300,000 - 450,000MOQ: 1 Set
-
Crawler Type Phenolic Resin Borad Automatic Production LineUS$ 300,000 - 450,000MOQ: 1 Set
-
B1 Grade Phenolic PF Fireproof Panel Making MachineNegotiableMOQ: 1 Set
Specifications
20years experienceISO 9001 CE certification

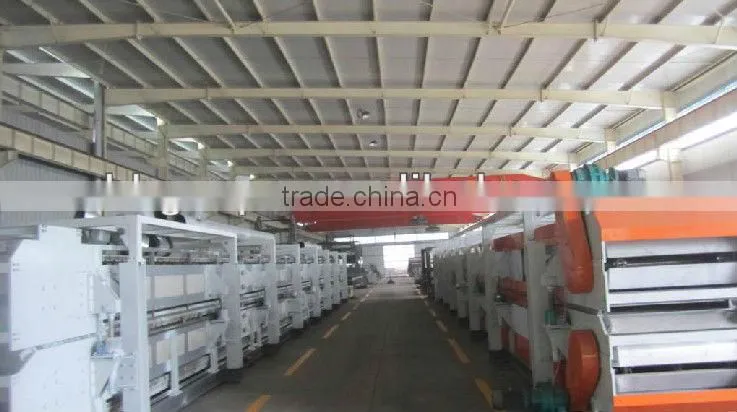

poyurethane foam board automatic production line
lifetime after sales
poyurethane foam board automatic production line
EQUIPMENT DESCRIPTION AND FUNCTION
Brief working principle
This equipment is equipped with phenolic foam machine which is accurate and durable, The tape machanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the place has a smooth surface, the side block and adhesive tape recirculation device can guarantee the sealing of the piece and its demoulding, the double-crawler laminating system is of pressure proof, and achieve a continuously automating a stable feature in product size, The following conveying and cutting systems can work simultaneously to produce plates of any length.
the main parameter of phenolic aldehyde board forming machine
Item |
Unit |
parameter |
Effective length of lamination machine |
mm |
12000-36000 |
Effective width of lamination machine |
Mm
|
1000-1200 |
Effective high of lamination machine |
mm |
20-100 |
Temperature of the lamination machine |
°C |
80 |
Forming casting machine flow |
Kg/min |
6-25 |
Suitable production rate |
m/min |
2-5 |
Anti-pressure capacity of lamination machine (25°C) |
Mpa |
3 |
Anti-pressure capacity of lamination machine (70(25°C) |
Mpa |
2.8 |
Suitable product thickness |
mm |
20-100 |
Production capacity |
(M3/24h) |
200 |
Installed power |
KVA |
45 |
Overall dimension |
mm |
40000*3000*4000 |
Total weight |
T |
36-72 |
