Phenolic Paper Laminated Sheet Production Line

Phenolic Paper Laminated Sheet Production Line photo-1
US$ 350,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Golden Deer
Model Number:
GX-FQ
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Dalian Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Golden Deer
Model Number GX-FQ
After-sales Service Provided Engineers available to service machinery overseas

Specifications

ISO9001 CE certification
20 years' experience
One Years warranty,lifetime service
Phenolic Laminated Sheet Line

    Phenolic Paper Laminated Sheet Production Line

Product Introduction



1 The equipment is accurate and durable.



 The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, to make sure the piece has a smooth surface.



3  The side block and adhesive tape recirculation device can guarantee the sealing of the piece and its demoulding.



 The double-crawler laminating system is of pressure proof, and can achieve a continuously automatic production and limit the foaming material within the mould, ensuring a stable feature in product size.



5 The following conveying and cutting systems can work simultaneously to produce plates of any length.



Technical Parameters



ITEM

UNIT

PARAMETER

Effective length of laminating machine

mm

18000--36000

Effective width of laminating machine

mm

1200

Effective height of laminating machine



 mm

20--100

Laminating machine temperature control range

°C

≤80

 Foaming casting machine flow

Kg/min

6--25

Anti-pressure capability of laminating machine

(25°C)

 Mpa

Anti-pressure capability of laminating machine

(70°C)



Mpa

 2.8

Suitable production thickness

mm

20--100

Capacity

m³/24h

200

Dimension L*W*H

Mm

(40000--60000)*3000*4000

Installed power

KVA

45

Total weight

Tons

40--72

Produce Process of Phenolic Foam Machinery in Plant

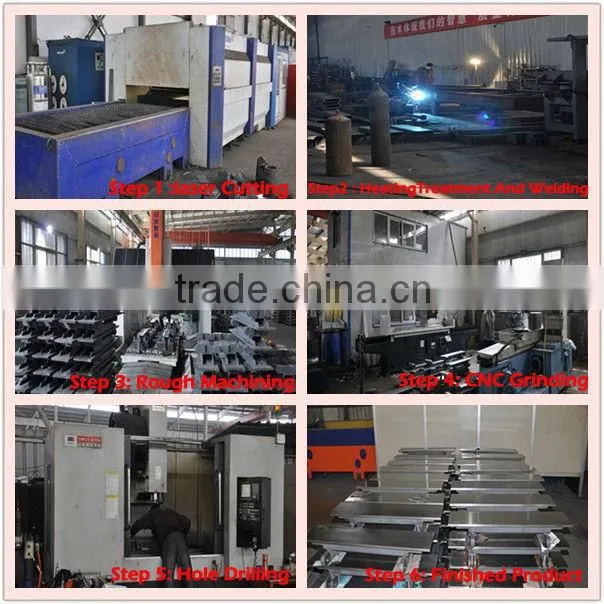

 Chain plate processing



Phenolic Paper Laminated Sheet Production Line





The heating treatment bring the chain plate a high strength, non-deformation and high resistance to the expansive force from high-density products



Laser cutting and hole drilling processing provides the precise standard of the spare parts.

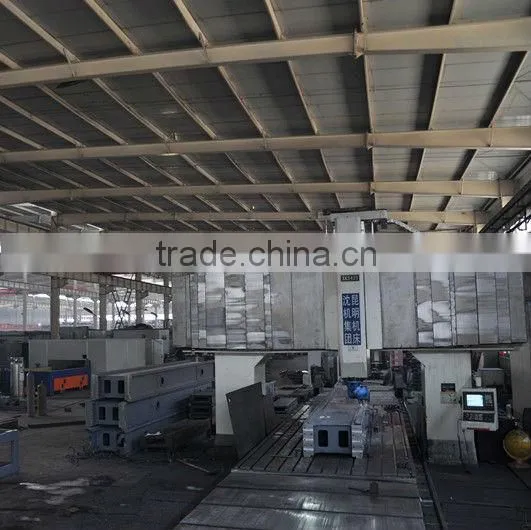

Frame processing





Phenolic Paper Laminated Sheet Production Line



CNC grinder guarantees the smooth surface of the frame.





Assembling:





Phenolic Paper Laminated Sheet Production Line







Product samples of the machinery:



 Phenolic Paper Laminated Sheet Production Line

ISO9001 And CE Certification :

Phenolic Paper Laminated Sheet Production Line



Plant overview:

Phenolic Paper Laminated Sheet Production Line



Any Questions Please feel free Contact with us! Look forward To Your Email.
