Fiber Optic Adapter Characteristics
- Compact design
- NTT-FC compatibility
- High precision alignment
- Low insertion and return loss and back reflection
- Corrosion resistant body
Fiber Optic Adapter Application
- CATV
- Telecommunication networks
- Local Area Networks (LANs)
- Metro networks
- Data processing networks
- Industrial, military and medical
Fiber Optic Adapter Brief Introduction
TELEWEAVER offers a variety of FC Adapters in Square, Round and Oval mount configurations with a choice of zirconia straight or diagonal split sleeves, or phosphor bronze straight split sleeve.
The FC Square Adapter is available in the standard body styles with nickel plated brass or nickel plated zinc housing. With an optional solid body type for extra durability, FC adapters are also available with either a narrow or wide connector key. FC Round Adapters come with a choice of D Flange (ø8.85 x 7.95mm) or DD Flange (ø9.35 x 7.65mm), and feature nickel plated brass housing for corrosion resistance.
Fiber Optic Adapter Pictures
-

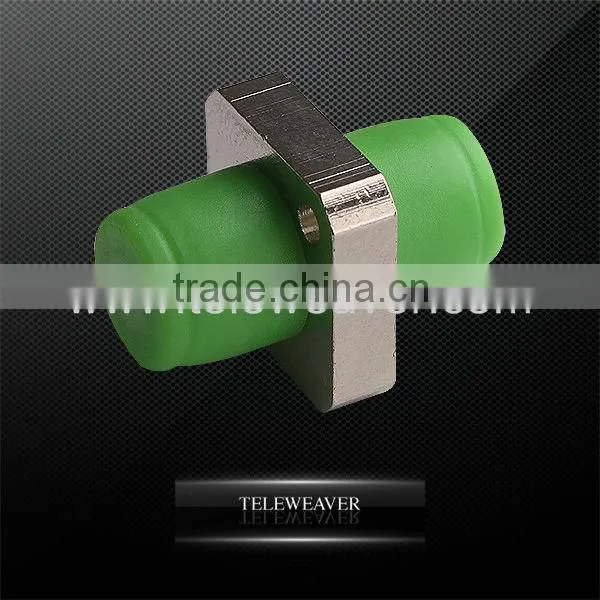

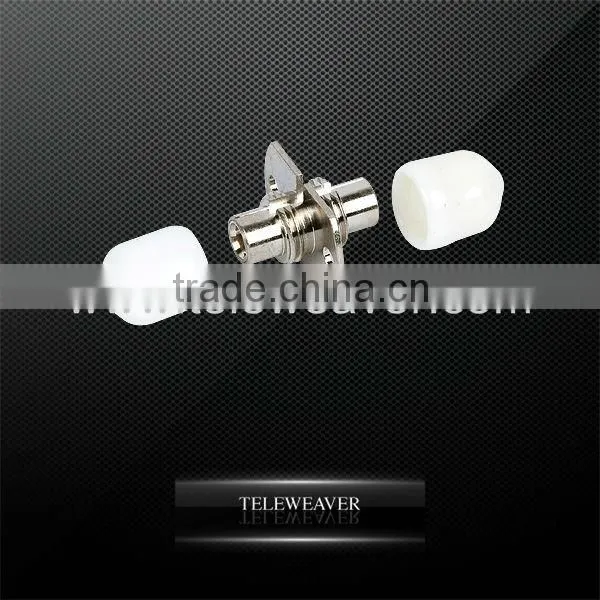

FC Single-mode Fiber Optic Adapter
Fiber Optic Adapter Paramters
|
Type Parameters |
Single-mode |
Multimode |
|
Connector Type |
FC Fiber Optic Adapter |
||
Polishing Type |
PC |
APC |
PC |
Insertion Loss (dB) |
≤0.2 |
≤0.25 |
|
Tensile Strength |
F200N |
||
Durability |
n=1000 |
||
Operation Temperature (°C) |
-40°C~+80°C |
||
Sleeves Material |
Zirconia Ceramic |
||
Other Fiber Optic Adapters you may interested in:
-
SC Fiber Optic Adapter
-
FC Fiber Optic Adapter
-

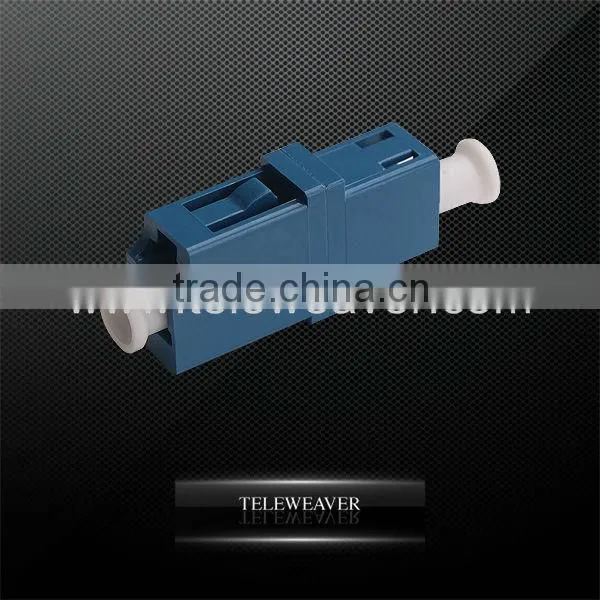

LC Fiber Optic Adapter
-

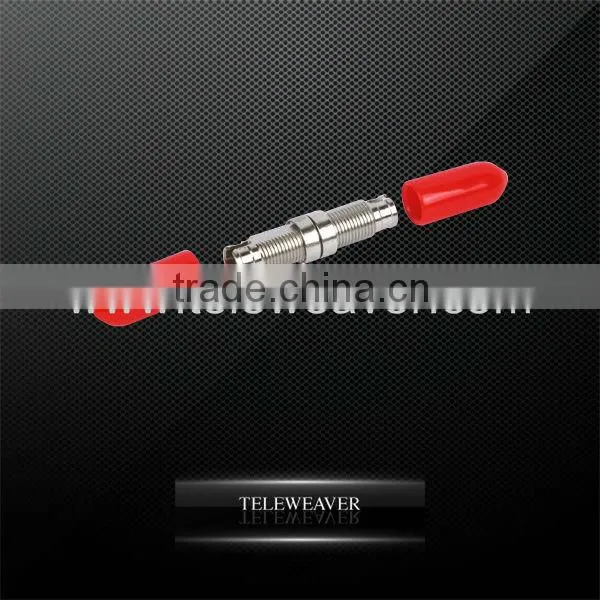

ST Fiber Optic Adapter
-

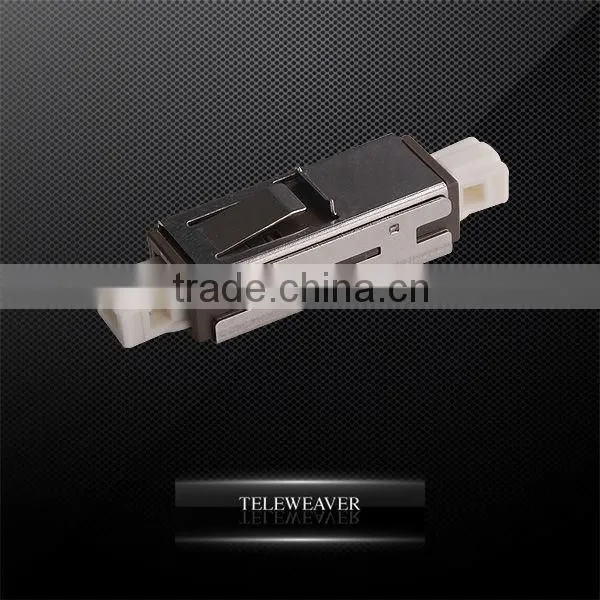

MU Fiber Optic Adapter
-

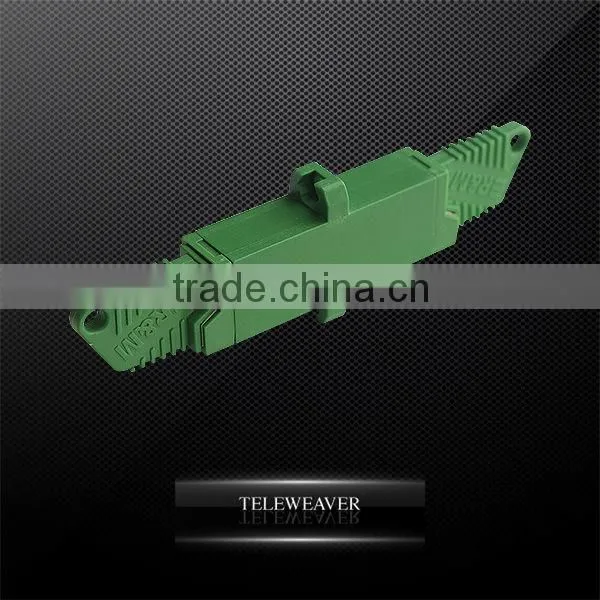

E2000 Fiber Optic Adapter
-

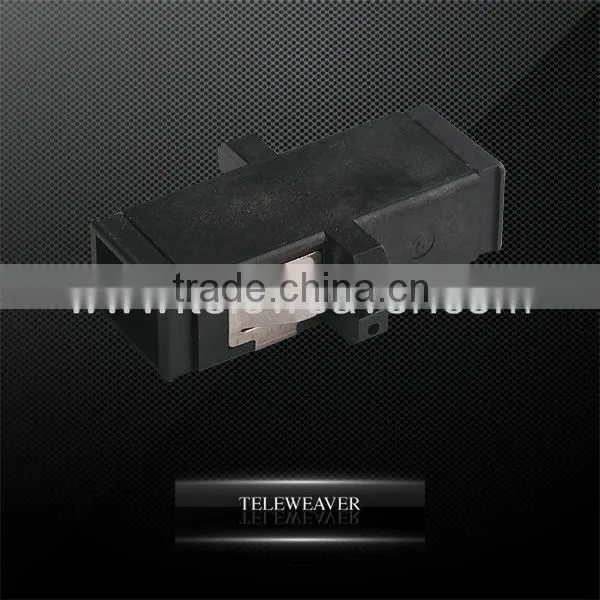

MTRJ Fiber Optic Adapter
-
D4 Fiber Optic Adapter
-
DIN Fiber Optic Adapter
-

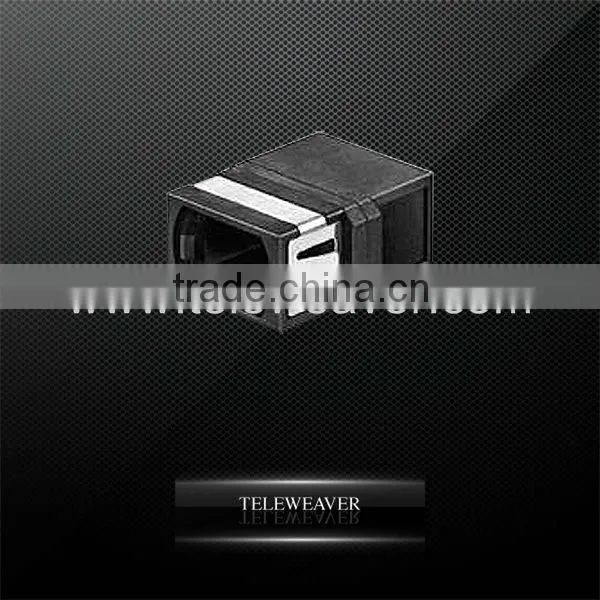

MPO Fiber Optic Adapter
-

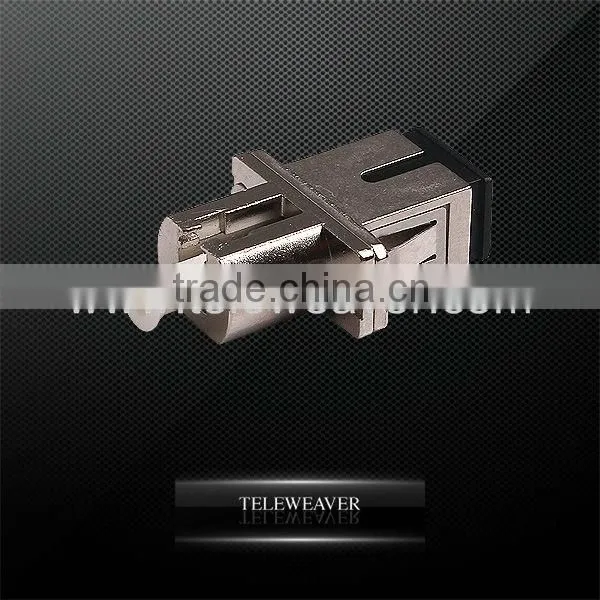

Hybrid Fiber Optic Adapter
Teleweaver Contact Details:
Company Name: Teleweaver Technology Co.,LTD Add: 6F,Building C, Huixin Industrial, Guanzhou,China 510440 Tel: 86-20-6662 0285 Fax: 86-20-6683 7162 Mob: 86-15907516662Website:Skype: Aaron Tang
whatsapp:15907516662
