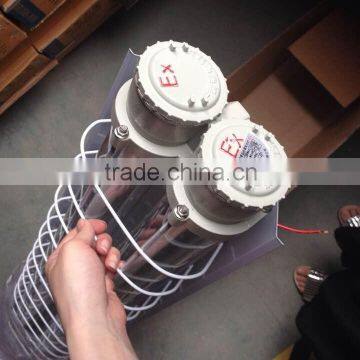

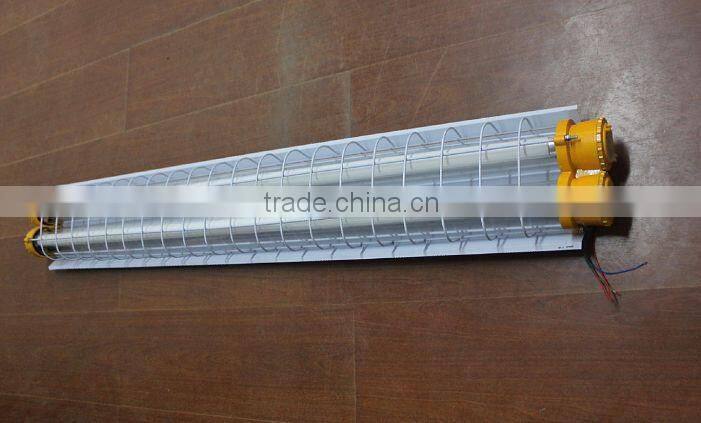

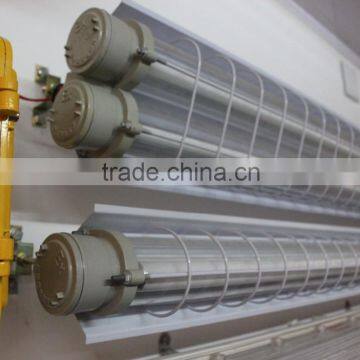

BPY Aluminum Alloy Enclosure With Cover Explosion Proof Fluorescent Lamp

BPY aluminum alloy enclosure with cover explosion proof fluorescent lamp

Youtube Video website:  /watch?v=-FfoMqyUrj4&feature=youtu.be


1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T6.

3. Hazardous zone : 20. 21. and 22

4. Flammable dust atmosphere.

5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

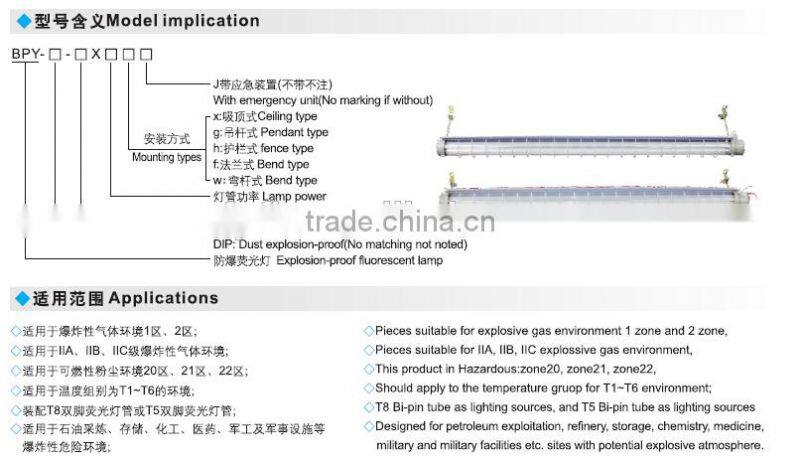

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T6.
• Lighint source:T5 or T8 bin-pin tube.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

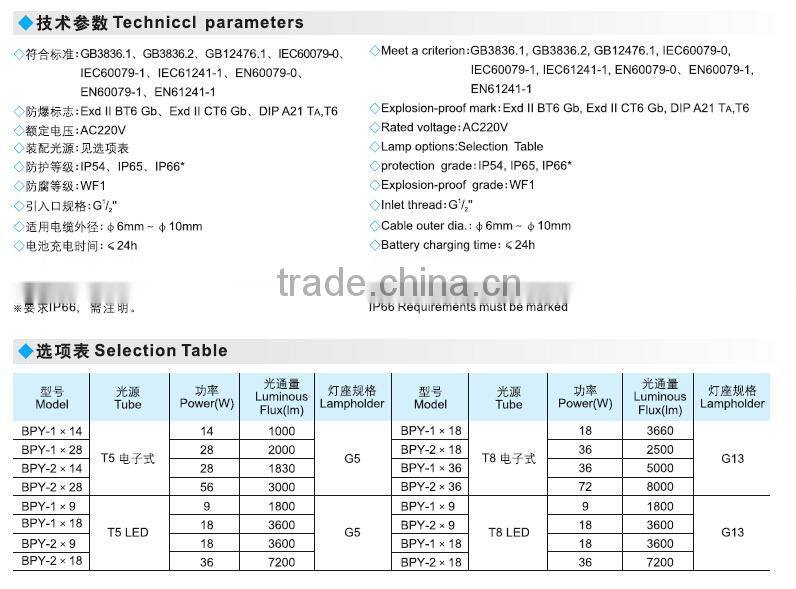

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1, IEC61241-1, EN60079-0, EN60079-1, EN61241-1
• Ex---proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.
• Rated voltage: AC220V
• Ligting Source: Plz Refer the Selection Table.
• Protection grade:IP54, IP65, IP66*( If need IP66, need to info us)
• Corrosion-proof grade:WF1
• Inlet Thread: G1/2"
• Cable outer dia:6mm~10mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

Product Features:

• Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.
• High strength toughened glass cover.
• Exposed fasteners are of stainless steel with function of high corrosion-proof.
• With grids to adjust lighting effect and reduce the glare.
• Modular plug structure design, only need disconnect end cover draw out core to change tubes.
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Screw connection type, for easy installation and maintenance.
• Power factor can be over 0.95.
• Steel conduit or cable wirings.

Order Information :

• Lamps has factory configuration light source, can be used directly access power;
• Take emergency unit, installation only ceiling type and boom type applicable;
• When double tube fluorescent lamp start emergency unit, Only one tube work.
• Ingress protection IP65 is available as per request.

Welcome to visit FPFB online marketing display.

To serve you in a better and efficient way, please browse our products  and contact us with following information.

1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?

2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.

3. Your preference on light source, power and installation methods etc.

We will offer our best products and prices according to your actual demand.
