IIB IP54 Explosion Proof Rotation Fan

Specifications

 IIB IP54 Explosion proof rotation fan

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category IIA and II B where the temperature classification is T1-T4.

3. Steel conduit or cable wiring.

4. Flammable dust atmosphere.

5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

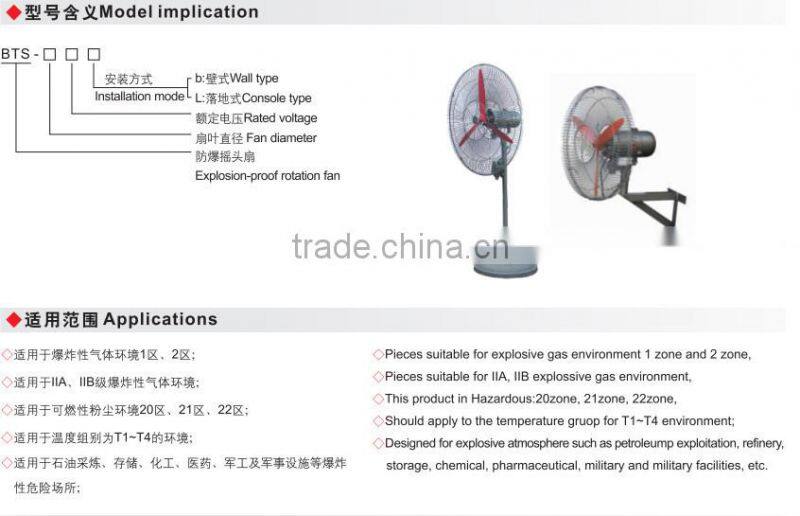

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB explosive gas environment.
• Suitable for explosion zone20,21,22.
• Can be used in the environment of  temperature group for T1~T4.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion: GB3836.1, GB3836.2, GB12476.1, IEC60079-0, IEC60029-1, IEC61241-1.
• Ex-proof mark: Exd II BT4 Gb, DIP A21 TA,T4.
• Rated voltage: AC220/380V
• Protection grade: IP54
• corrosion-proof grade: WF1
• Inlet thread: G3/4"
• Cable outer dia:Φ9mm~Φ14mm

Product Features:

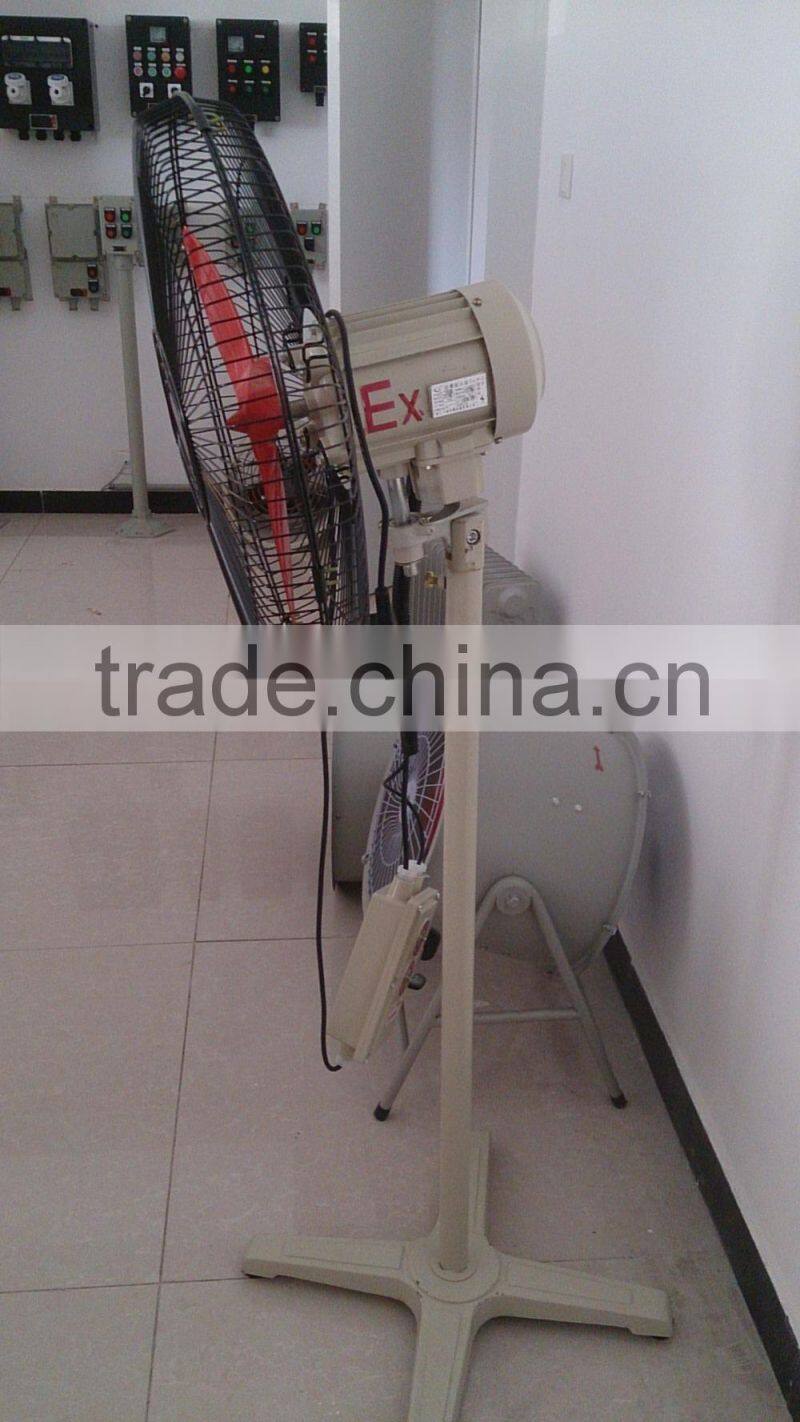

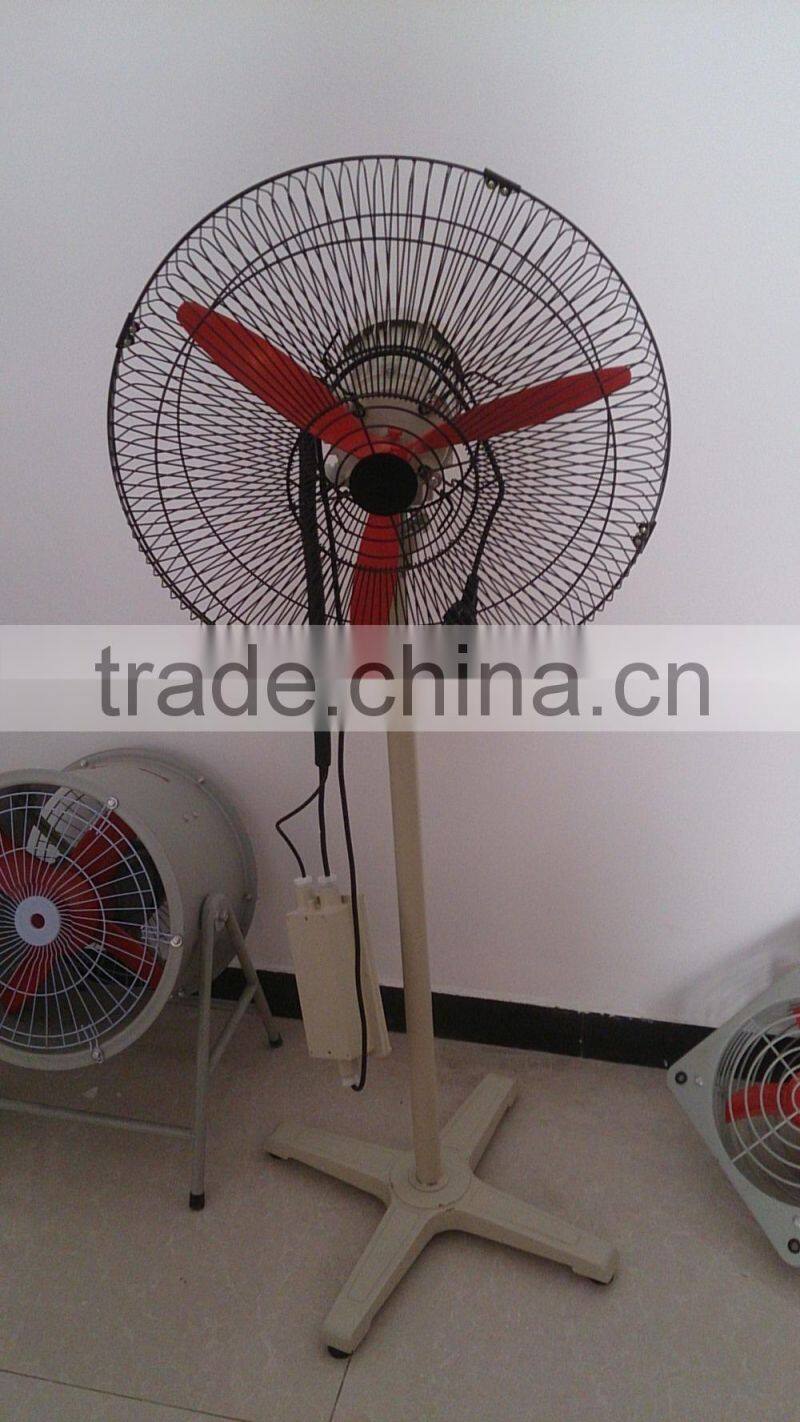

• Oscillating fan is composed of explosion proof motor, fan, explosion proof control switch, rocking head, etc.
• With novel structure, running smoothly, easy usage and beautiful appearance.
• Fan blades are made of rigid aluminium alloy, with high-pressure electrostatic plastic-sprayed surface.
• Oscillating head with independent mico-motor system can reduce the main motor load and mechanical transmission noise.
• The main motor cooling fan, compulsory air-cooled increase, effectively reduce the main motor temperature rise.

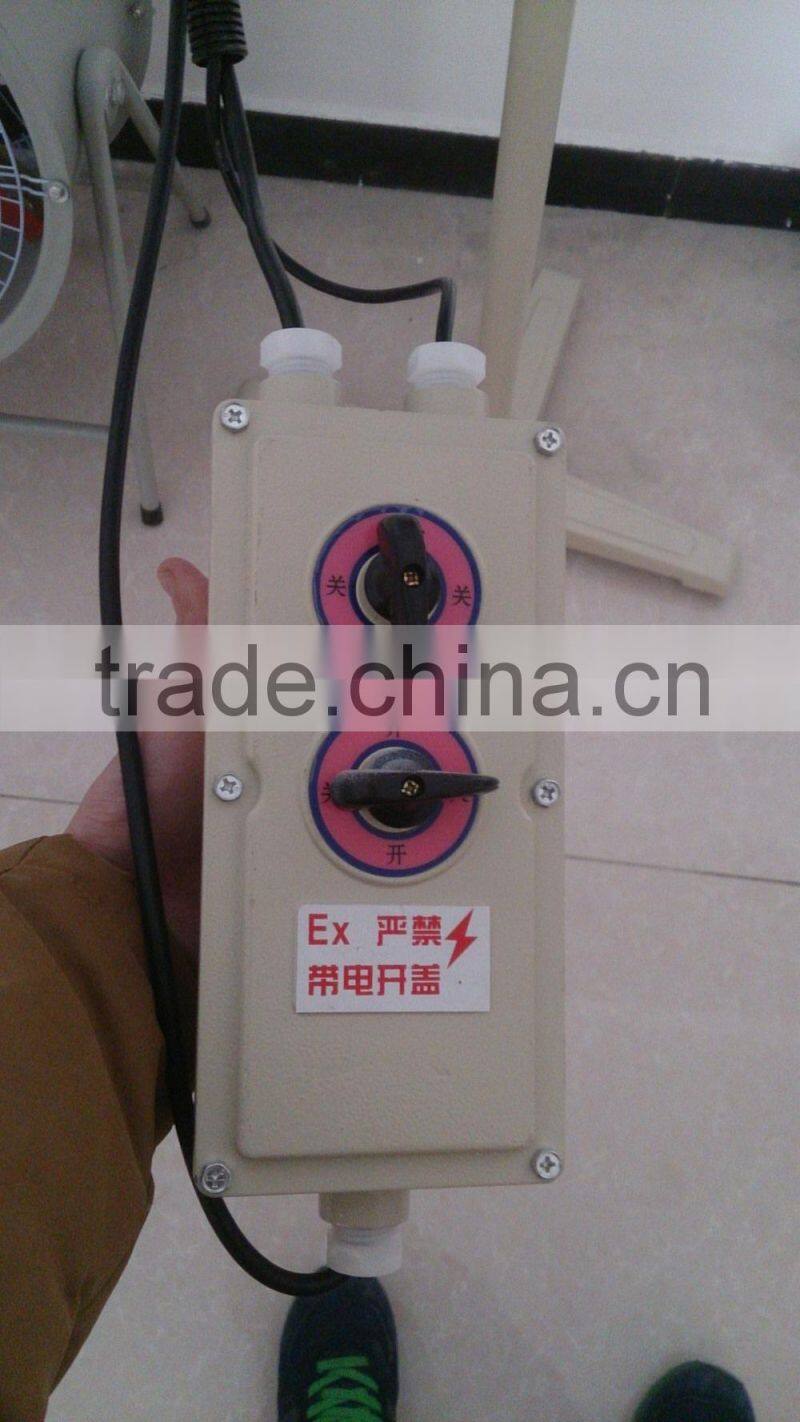

• The flameproof, explosion proof control box, control fans and oscillating head, respectively, start and stop the body.
• Cable wiring.
