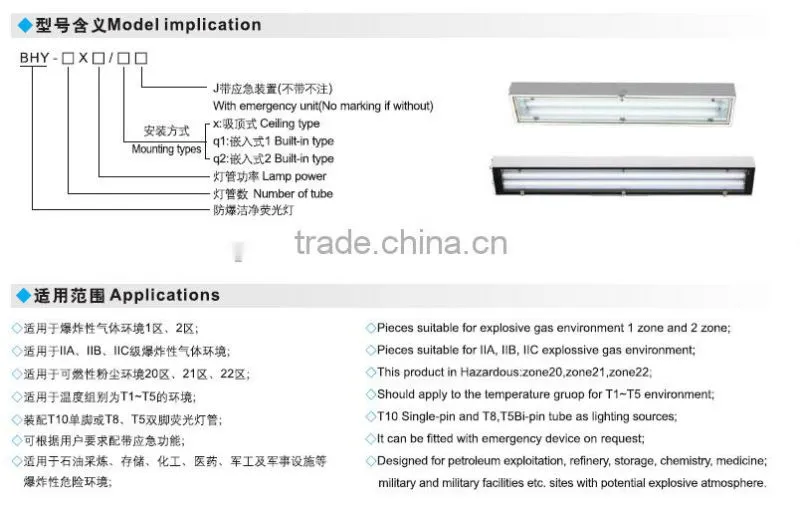

BHY explosion-proof front access fluorescent fitting straight light
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA, II B and II C where the temperature classification is T1-T5.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
6.Can be fitted with emergency device on request.
7.Lighting fixutre with emergency unit will be automatically shafted to emergency lighing status when normal power failue.
Voltage |
Dust-mark |
INLET thread |
Lighting source |
protection grade |
Erosionproofclass |
cableouterline (mm) |
AC220v |
DIP A21 TA,T5 |
G3/4" |
LED |
IP54 IP65 |
WF1 WF2 |
Φ 9- Φ 14 |
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1,EN60079-7, EN61241-1,
- Ex-proof Mark:Exed II CT5 Gb, DIP A21 TA, T5.
- Rated voltage: AC220V
-
Ligting Source: T10 Single-pin tubes(1×20W,2×20W,1×40W,2×40W)
T8 Bi-pin tubes(1×18W,2×18W,1×36W,2×36W)
T5 Bi-pin tubes(1×14W,2×14W,1×28W,2×28W)
T5 and T8 LED tube(1×9W, 2×9W,1×18W,2×18W)

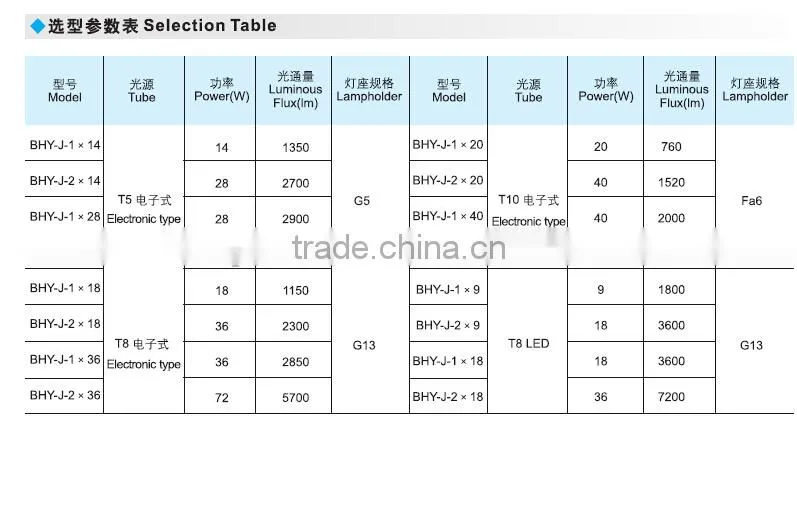

Detail Plz refer the blew table. - Protection grade:IP54,IP65
- Corrosion-proof grade:WF2,WF1
- Inlet Thread: G3/4"
- Cable outer dia:9mm~14mm
- Battery charging time:≤24h
- Emergency Start time:≤0.3s
- Emergency lighting duration:≥90min
Features
1.The enclosure is stainless steel,high voltage electrostatic powder coated surface.
2.Exposed fasteners are of stainless steel.
3.Steel conduit or cable wiring.,
