Protector, Thermal Protector, TB05
US$ 0.16 - 0.19
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Thermostat, Temperature Protector, Protector, HC301
-
Thermostat Switch, Protector, Temperature Protector, HC301
-
Thermostat, Temperature Protector, HC09
-
3MP, Motor Protector, Washing-machine Motor Protector
-
Motor Protector, Protector,Temperature Protector, Automotive Motors, Capacitor Start Motors
-
5AP, 2MP, Temperature Protector, Protector, Motor Protector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HCET | |
| Model Number | TB05 |
Product Description
Product Description

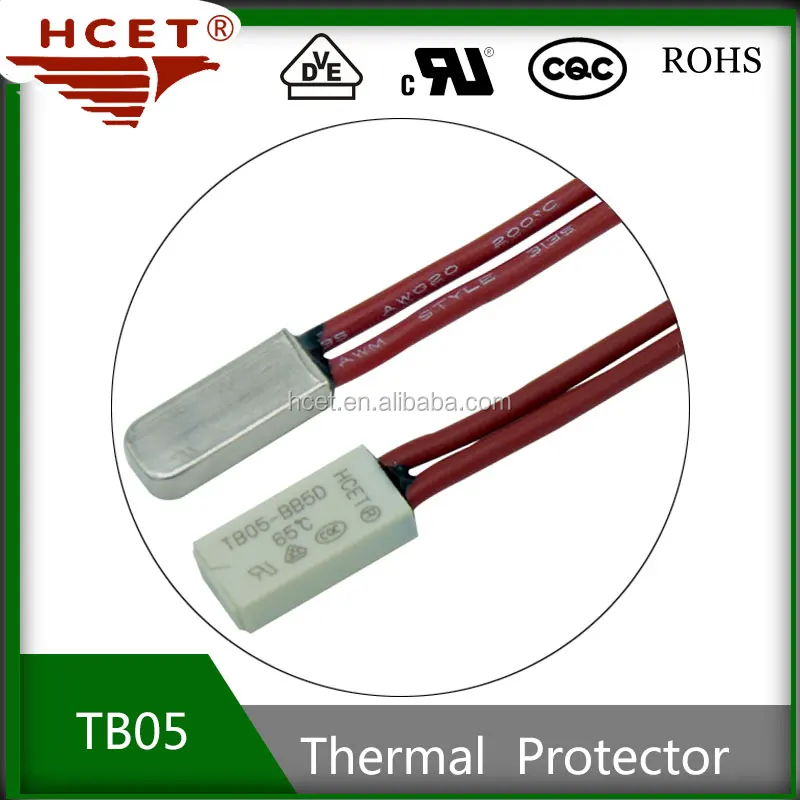

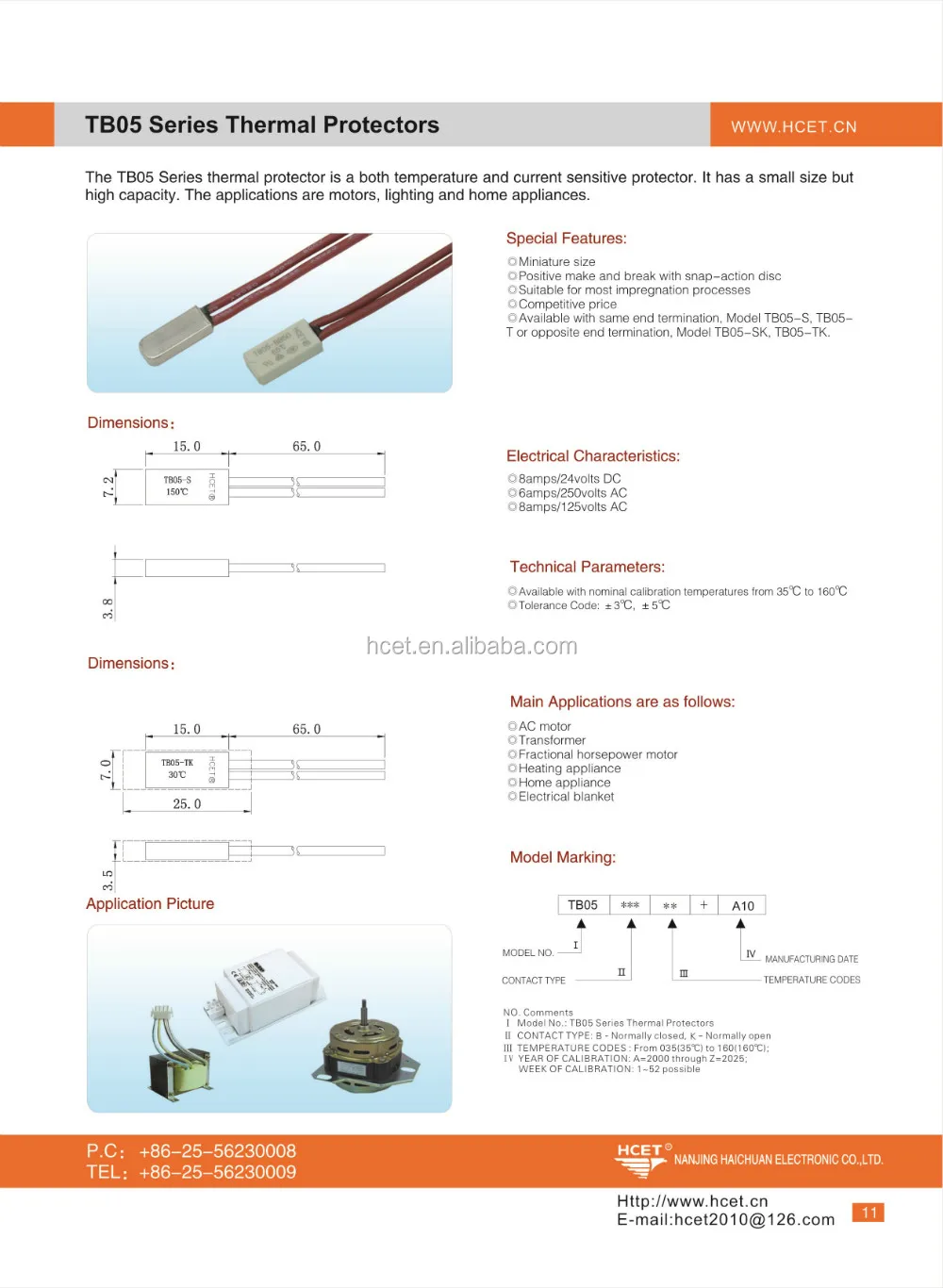

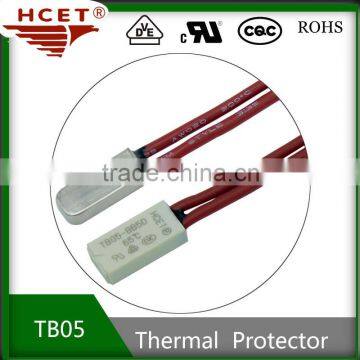

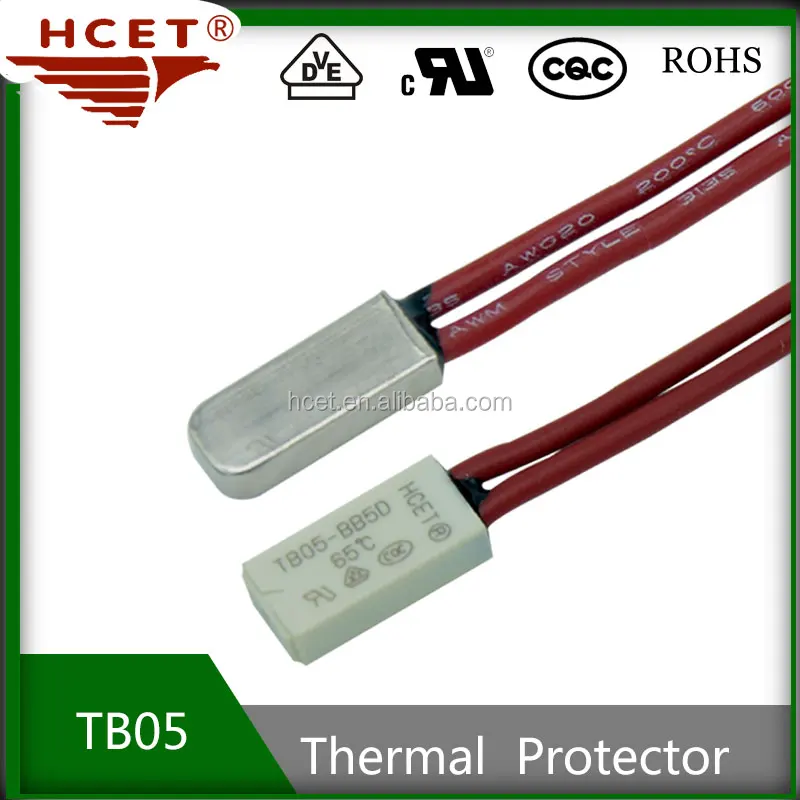

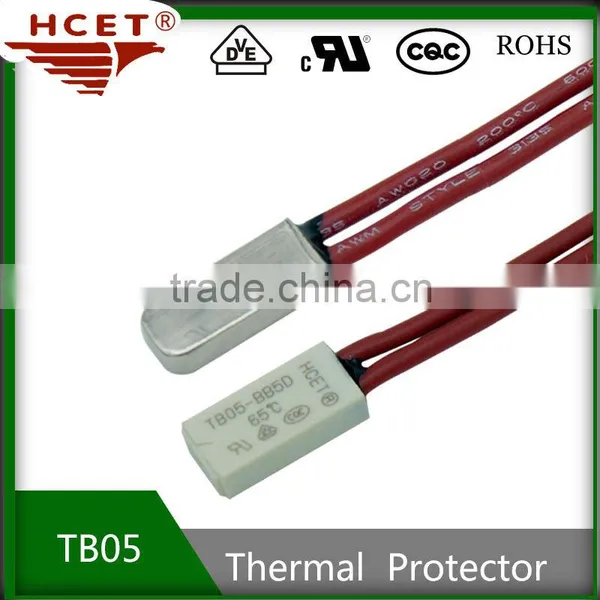

TB05 Series Thermal Protectors
The TB05 Series thermal protector is a both temperature and current sensitive protector. It has a small size but high capacity. The applications are motors, lighting and home appliances.
Special Features:
● Miniature size
● Positive make and break with snap-action disc
● Suitable for most impregnation processes
● Competitive price
● Available with same end termination, Model TB05-S, TB05-T or opposite end termination, Model TB05-SK, TB05-TK.
Electrical Characteristics:
● 8amps/24volts DC
● 6amps/250volts AC
● 8amps/125volts AC
Electrical Characteristics:
● Available with nominal calibration temperatures from 35℃ to 160℃
● Tolerance Code: ±3℃, ±5℃
Main Applications are as follows:
● AC motor
● Transformer
● Fractional horsepower motor
● Heating appliance
● Home appliance
● Electrical blanket
