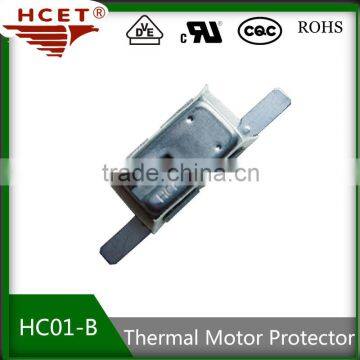

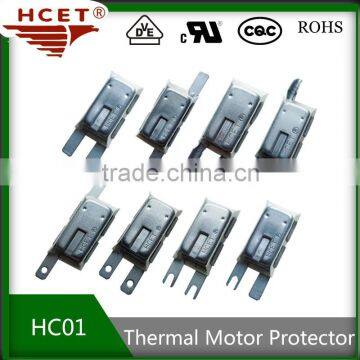

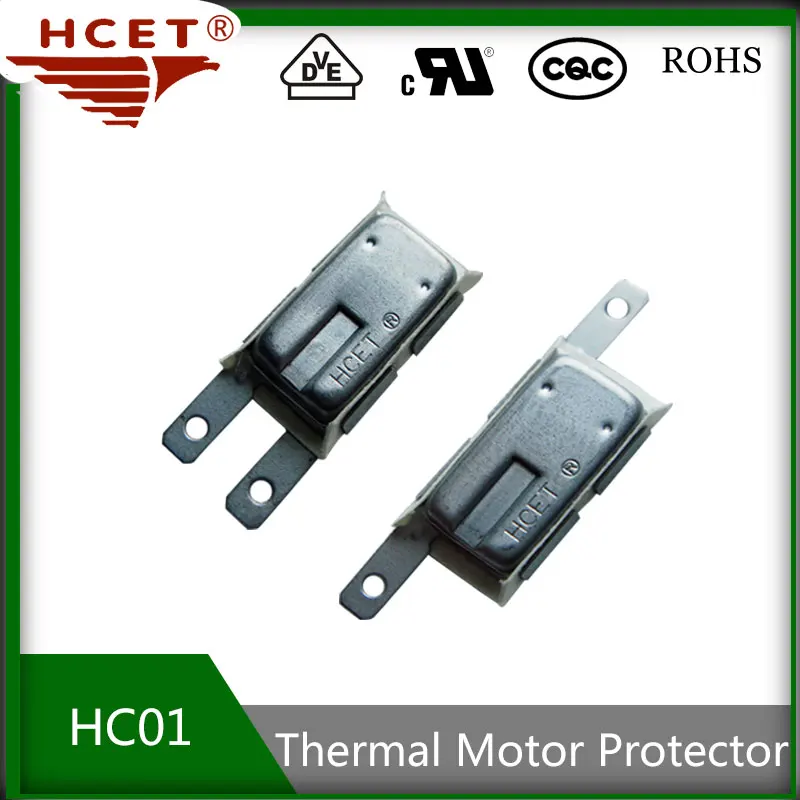

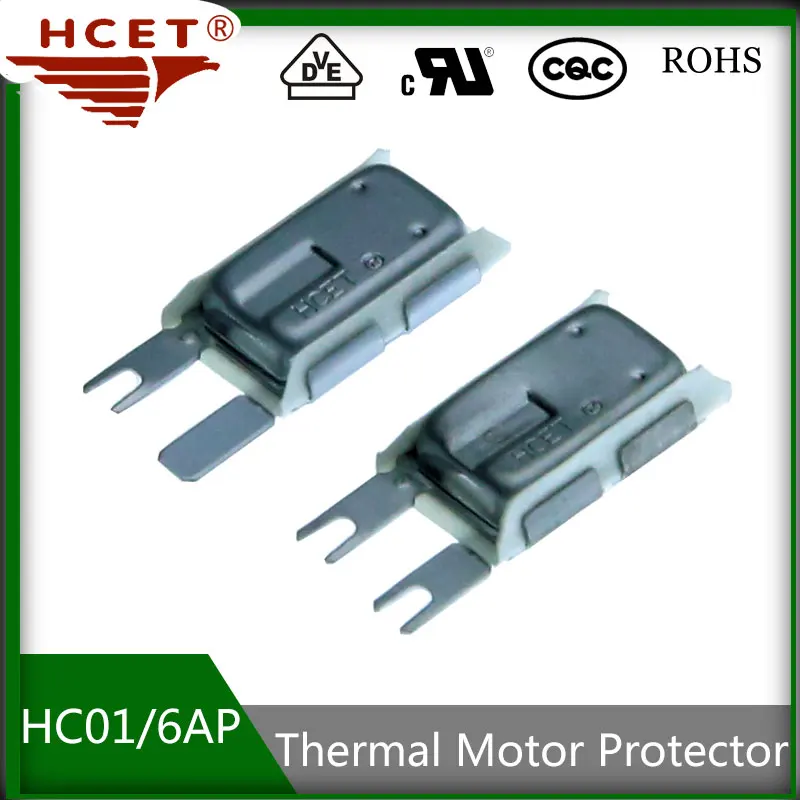

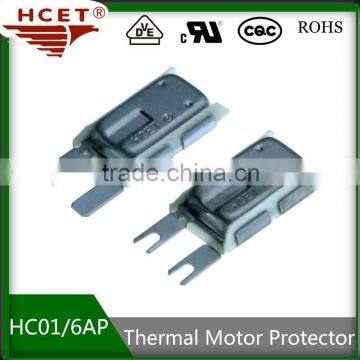

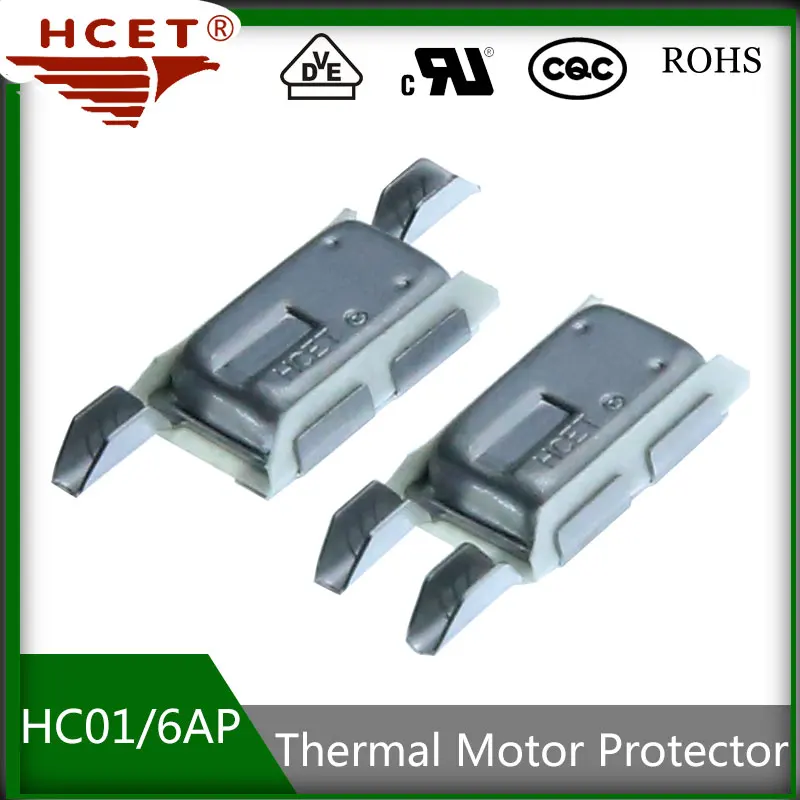

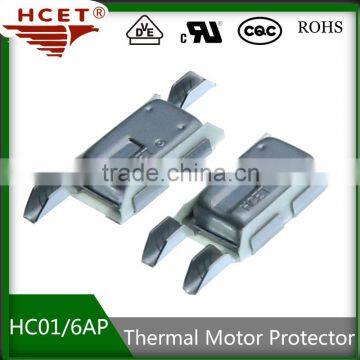

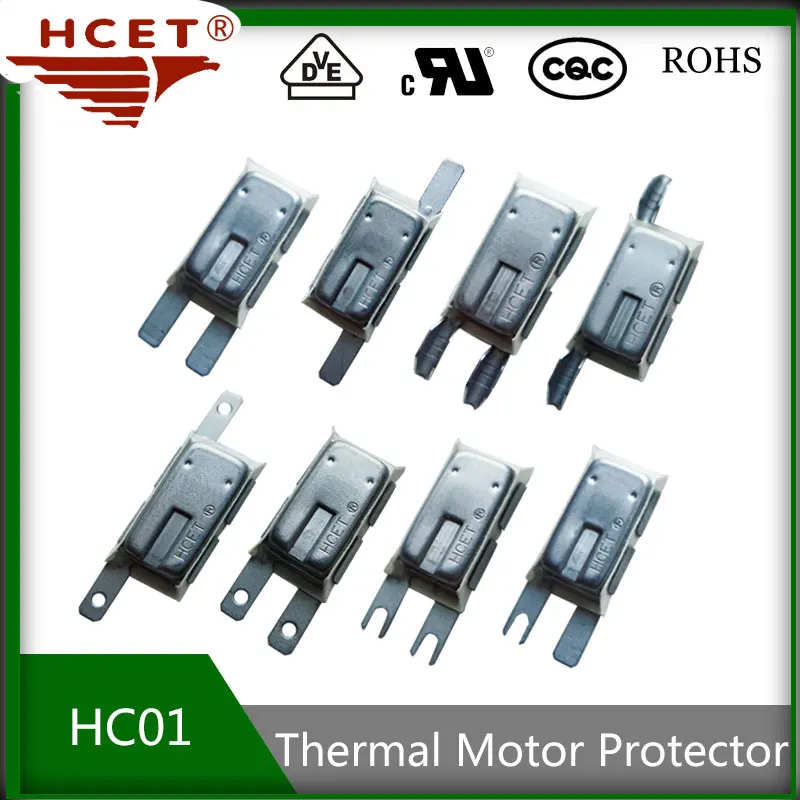

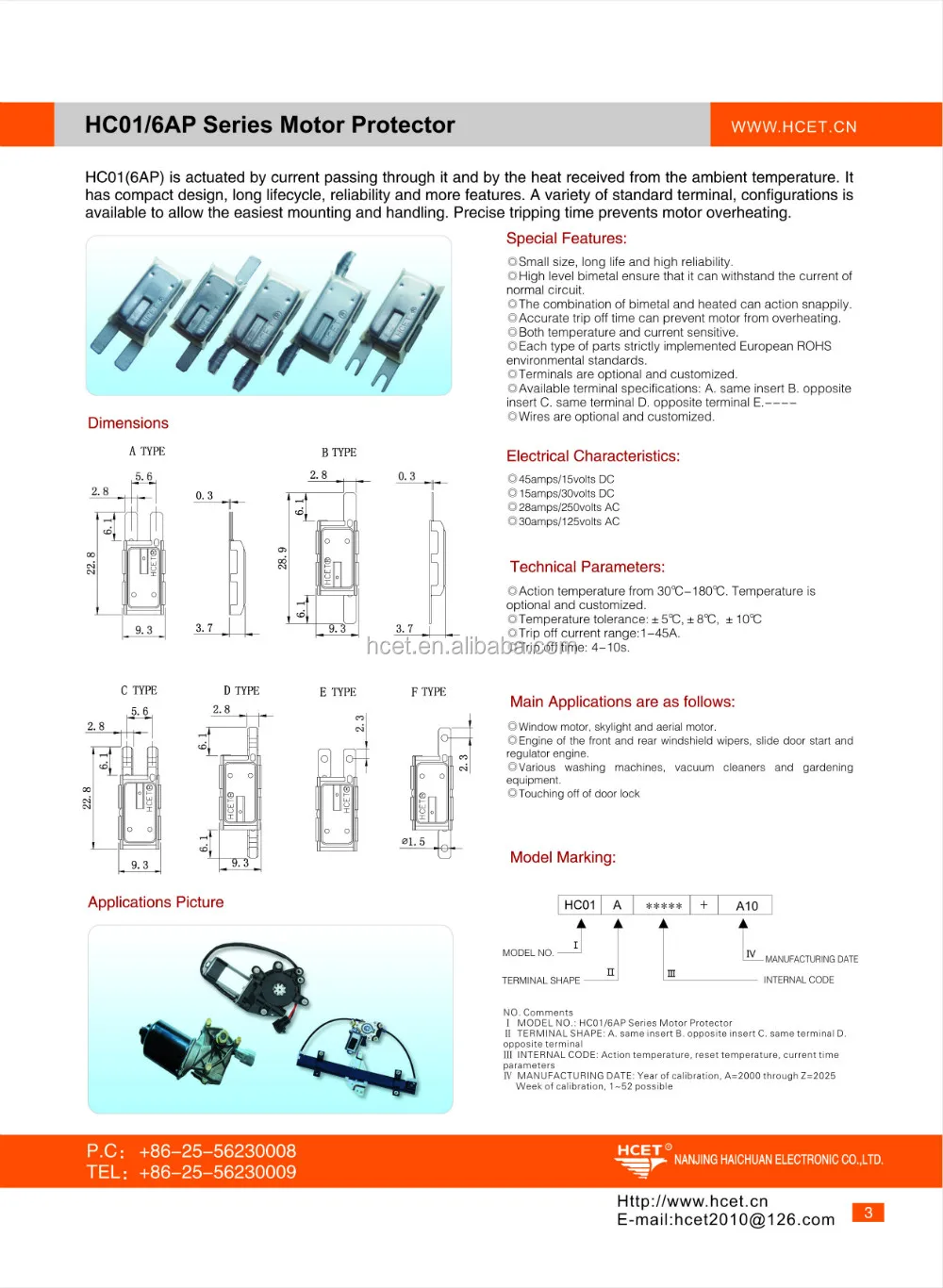

HC01/6AP Series Motor Protector
HC01 (6AP) is actuated by current passing through it and by the heat received from the ambient temperature. It has compact design, long lifecycle, reliability and more features. A variety of standard terminal, configurations is available to allow the easiest mounting and handling. Precise tripping time prevents motor overheating.
Special Features:
● Small size, long life and high reliability .
● High level bimetal ensure that it can withstand the current of normal circuit.
● The combination of bimetal and heated can action snappily.
● Accurate trip off time can prevent motor from overheating.
● Both temperature and current sensitive.
● Each type of parts strictly implemented European ROHS environmental standards.
● Terminals are optional and customized.

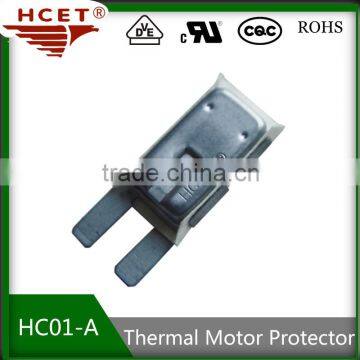

● Available terminal specifications: A. same insert B. opposite insert C. same terminal D. opposite terminal E. ----
● Wires are optional and customized.
Electrical Characteristics:
● 45amps/15volts DC
● 15amps/30volts DC
● 28amps/250volts AC
● 30amps/125volts AC
Technical Parameters:
● Action temperature from 30℃-180℃. Temperature is optional and customized.
● Temperature tolerance: ±5℃,±8℃, ±10℃
● Trip off current range:1-45A.
● Trip off time: 4-10s.
Main Applications are as follows:
● Window motor, skylight and aerial motor .
● Engine of the front and rear windshield wipers, slide door start and regulator engine.
● Various washing machines, vacuum cleaners and gardening equipment.
● Touching off of door lock
