Protector, Temperature Protector, Thermostat Switch, HC06F
US$ 0.79 - 0.81
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HCET
Model Number:
HC06F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Protector, Temperature Protector, Thermostat Switch, Pet Pad ProtectorUS$ 0.79 - 0.81MOQ: 100 Pieces -
Thermostat, Protector, Temperature Protector, HC05US$ 0.30 - 0.32MOQ: 100 Pieces
-
Protector, Over Temperature Protector, Overload, HC10US$ 0.72 - 0.74MOQ: 100 Pieces
-
Thermostat Switch, Switch, Transformers Switch, TB02US$ 0.21 - 0.22MOQ: 1000 Pieces
-
Protector, Thermal Protector, 17AM-PUS$ 0.25 - 0.30MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
HCET
Model Number
HC06F
Product Description

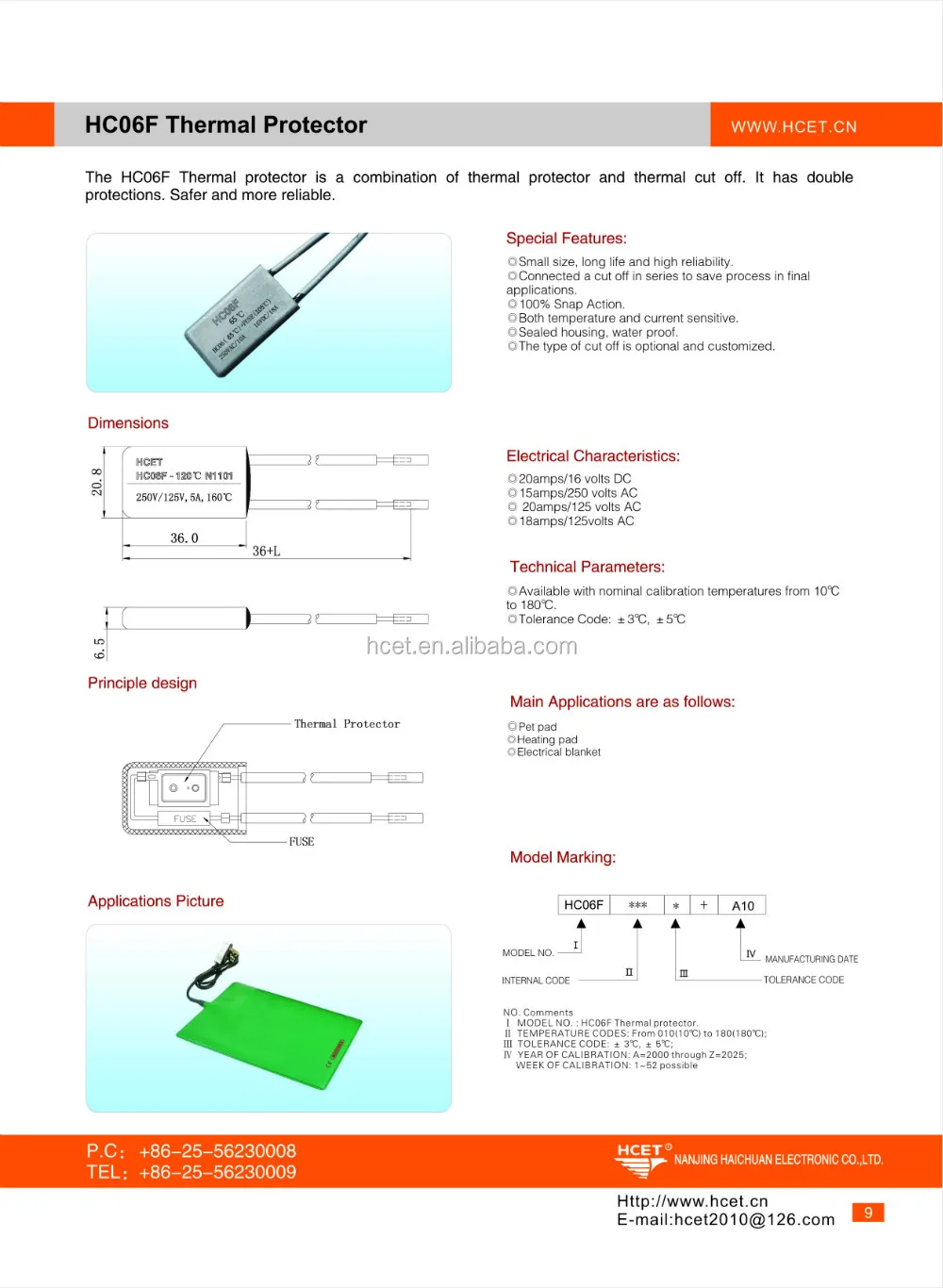

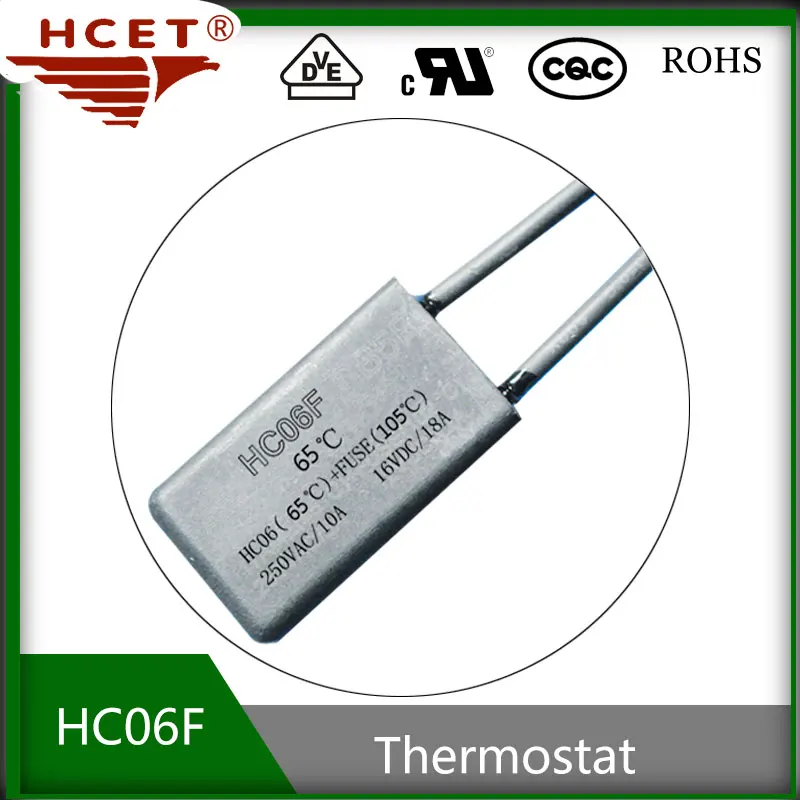

HC06F Thermal Protector
The HC06F Thermal protector is a combination of thermal protector and thermal cut off. It has double protections. Safer and more reliable.
Special Features:
● Small size, long life and high reliability .
● Connected a cut off in series to save process in final applications.
● 100% Snap Action.
● Both temperature and current sensitive.
● Sealed housing, water proof.
●The type of cut off is optional and customized.
Electrical Characteristics:
● 20amps/16 volts DC
● 15amps/250 volts AC
● 20amps/125 volts AC
Technical Parameters:
● Available with nominal calibration temperatures from 50℃ to 180℃.
● Tolerance Code: ±3℃, ±5℃
Main applications are as follows:
● Pet pad
● Heating pad
● Electrical blanket
The HC06F Thermal protector is a combination of thermal protector and thermal cut off. It has double protections. Safer and more reliable.
Special Features:
● Small size, long life and high reliability .
● Connected a cut off in series to save process in final applications.
● 100% Snap Action.
● Both temperature and current sensitive.
● Sealed housing, water proof.
●The type of cut off is optional and customized.
Electrical Characteristics:
● 20amps/16 volts DC
● 15amps/250 volts AC
● 20amps/125 volts AC
Technical Parameters:
● Available with nominal calibration temperatures from 50℃ to 180℃.
● Tolerance Code: ±3℃, ±5℃
Main applications are as follows:
● Pet pad
● Heating pad
● Electrical blanket
