Home > Electrical & Electronics > Passive Components > Capacitor > Thermostat, Protector, Temperature Protector, HC05
Thermostat, Protector, Temperature Protector, HC05
US$ 0.30 - 0.32
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HCET
Model Number:
HC05
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Protector, Over Temperature Protector, Overload, HC10US$ 0.72 - 0.74MOQ: 100 Pieces -
Thermostat Switch, Switch, Transformers Switch, TB02US$ 0.21 - 0.22MOQ: 1000 Pieces
-
Protector, Temperature Protector, Thermostat Switch, HC06FUS$ 0.79 - 0.81MOQ: 100 Pieces
-
Protector, Temperature Protector, Thermostat Switch, Pet Pad ProtectorUS$ 0.79 - 0.81MOQ: 100 Pieces
-
Protector, Thermal Protector, 17AM-PUS$ 0.25 - 0.30MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
HCET
Model Number
HC05
Product Description

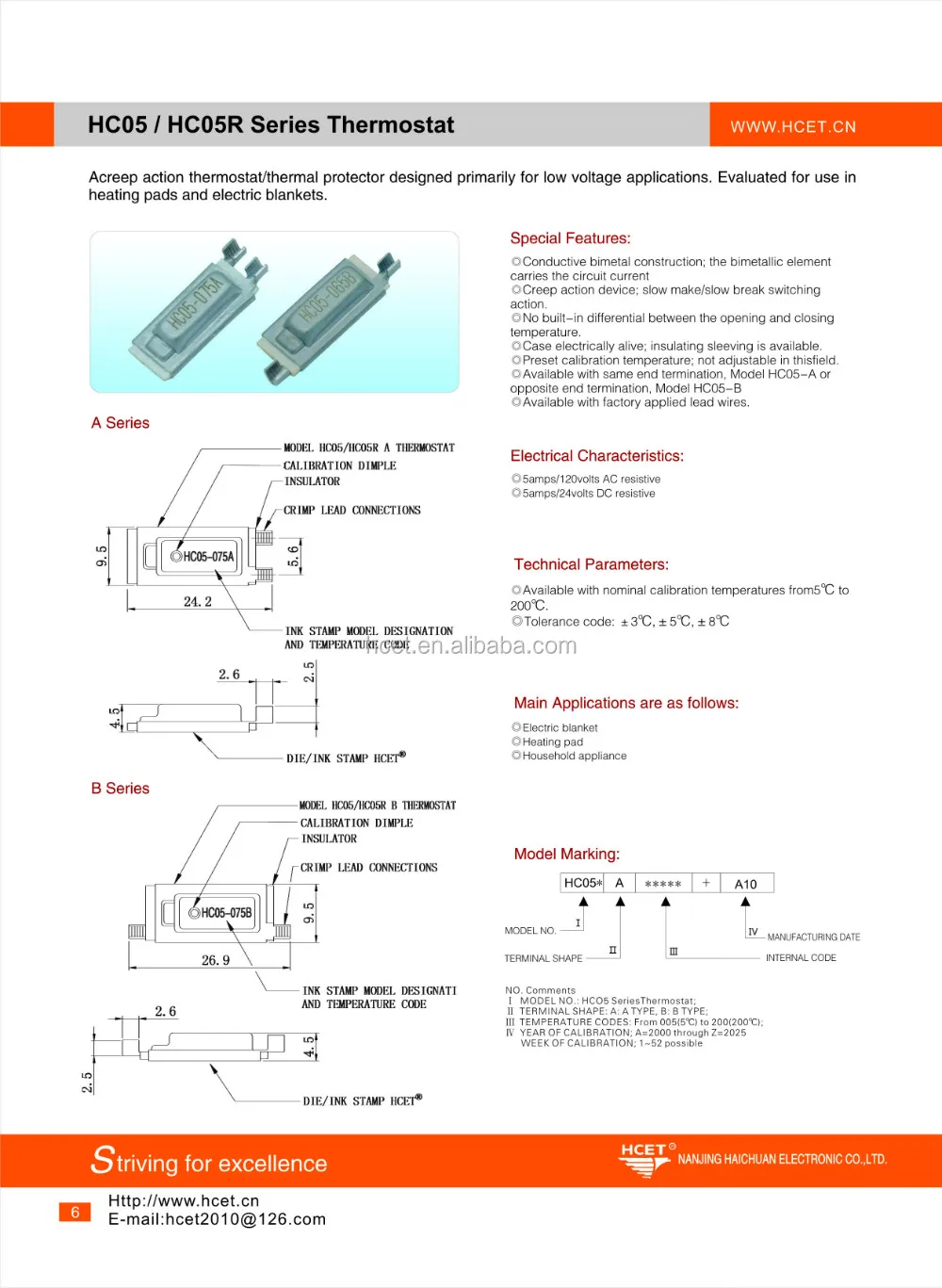

HC05 / HC05R Series Thermostat
A creep action thermostat/thermal protector designed primarily for low voltage applications. Evaluated for use in heating pads and electric blankets.
Special Features:
●Conductive bimetal construction; the bimetallic element carries the circuit current
●Creep action device; slow make/slow break switching action.
●No built-in differential between the opening and closing temperature .
●Case electrically alive; insulating sleeving is available.
●Preset calibration temperature; not adjustable in this field .

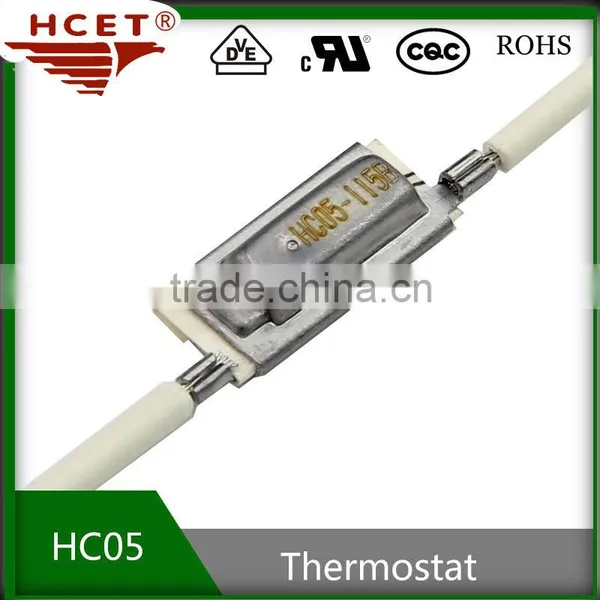

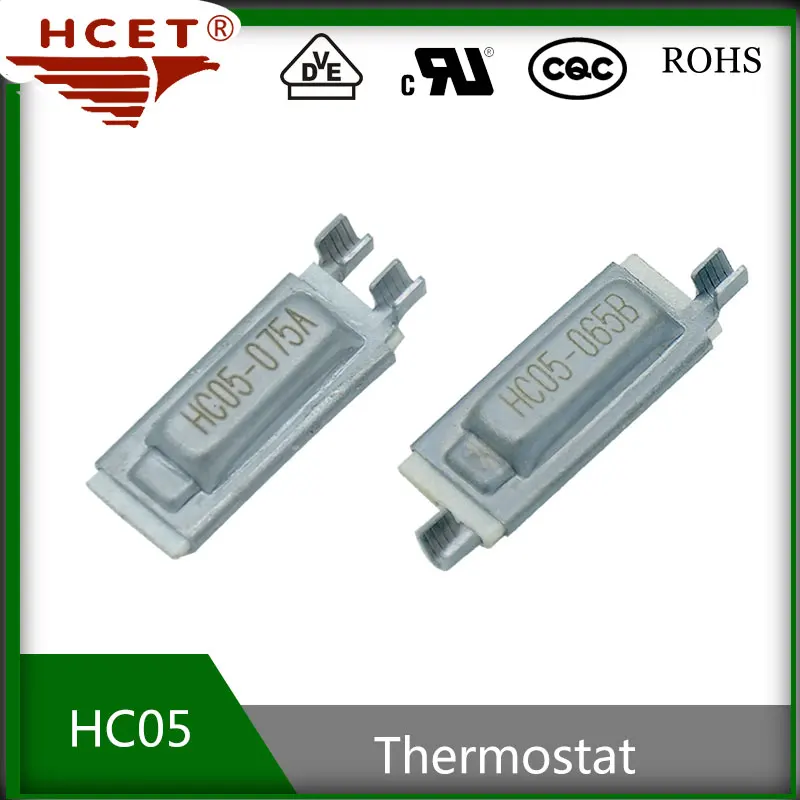

●Available with same end termination, Model HC05-A or opposite end termination, Model HC05-B
●Available with factory applied lead wires.
Electrical Characteristics:
● 5amps/120volts AC resistive
● 5amps/24volts DC resistive
Technical Parameters:
● Available with nominal calibration temperatures from5℃ to 200℃.
● Tolerance code: ±3℃,±5℃,±8℃
Main Applications are as follows:
●Electric blanket
●Heating pad
●Household appliance
A creep action thermostat/thermal protector designed primarily for low voltage applications. Evaluated for use in heating pads and electric blankets.
Special Features:
●Conductive bimetal construction; the bimetallic element carries the circuit current
●Creep action device; slow make/slow break switching action.
●No built-in differential between the opening and closing temperature .
●Case electrically alive; insulating sleeving is available.
●Preset calibration temperature; not adjustable in this field .
●Available with same end termination, Model HC05-A or opposite end termination, Model HC05-B
●Available with factory applied lead wires.
Electrical Characteristics:
● 5amps/120volts AC resistive
● 5amps/24volts DC resistive
Technical Parameters:
● Available with nominal calibration temperatures from5℃ to 200℃.
● Tolerance code: ±3℃,±5℃,±8℃
Main Applications are as follows:
●Electric blanket
●Heating pad
●Household appliance
