Overload Protector, Over Temperature Protector, Overload, HC12,
US$ 1.10 - 1.12
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HCET
Model Number:
HC12
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Overload Protector, Over Temperature Protector, Overload, HC13US$ 1.18 - 1.20MOQ: 100 Pieces -
Switch, Protector, Temperature Detect Switch, HC25US$ 0.71 - 0.73MOQ: 100 Pieces
-
Protector, Temperature Detect Switch, Switch, HC07US$ 0.36 - 0.38MOQ: 100 Pieces
-
Switch, Temperature Detect Switch, Protector, HC03US$ 0.30 - 0.32MOQ: 100 Pieces
-
Thermostat, Protector, Temperature Protector, HC05US$ 0.30 - 0.32MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
HCET
Model Number
HC12
Product Description

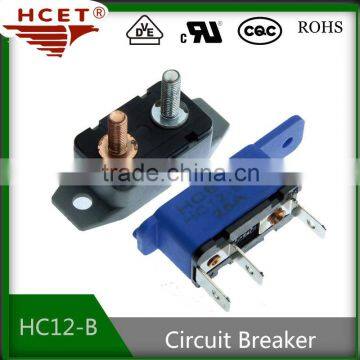

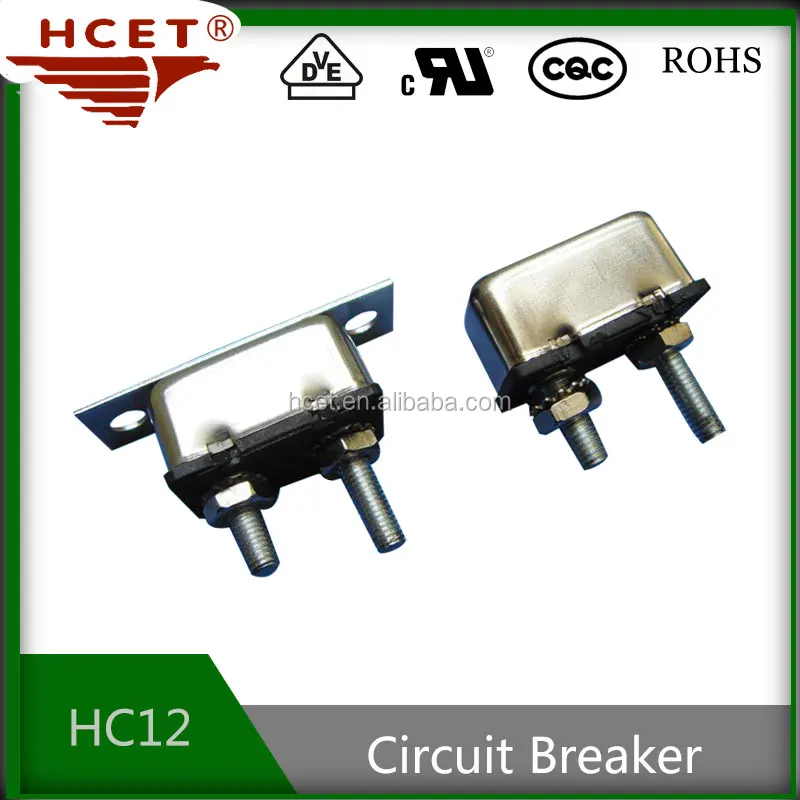

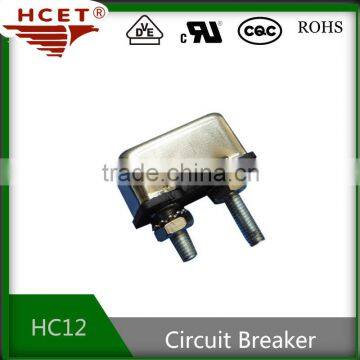

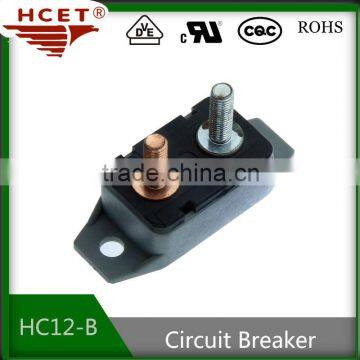

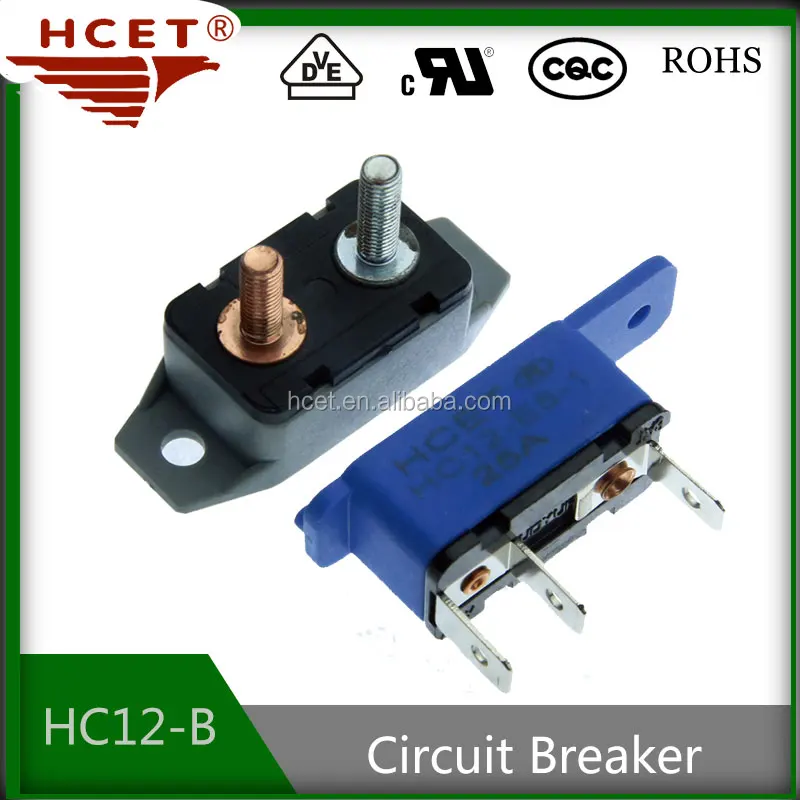

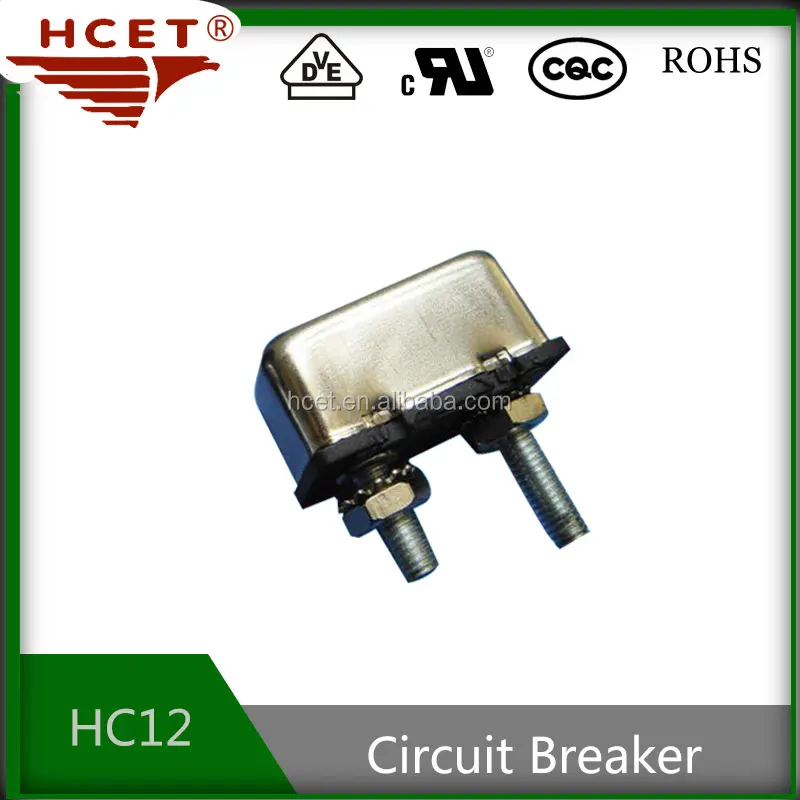

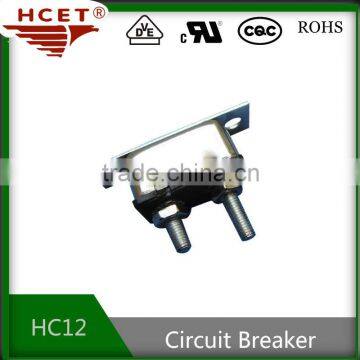

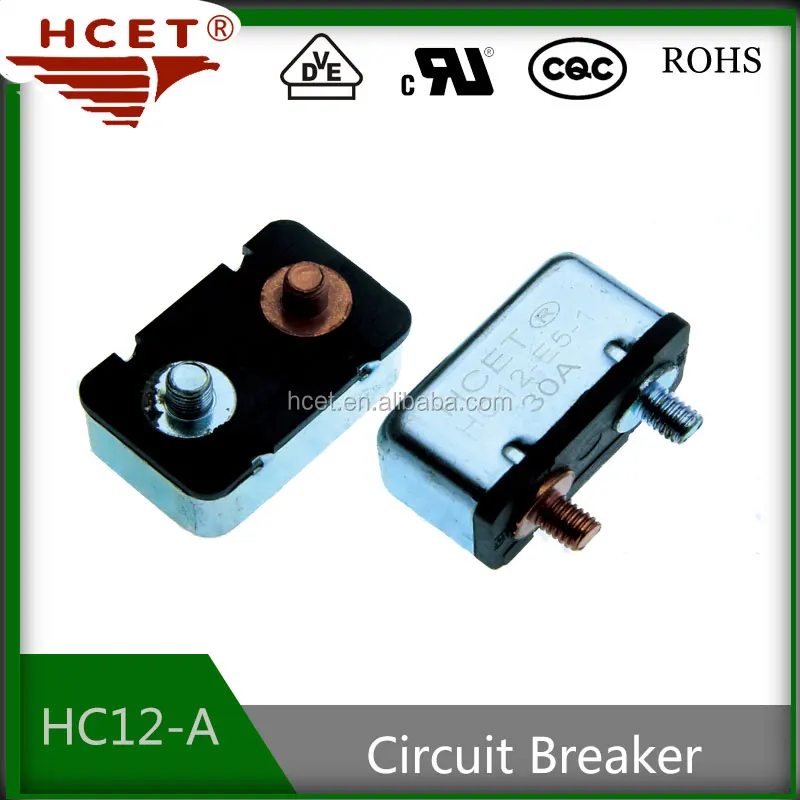

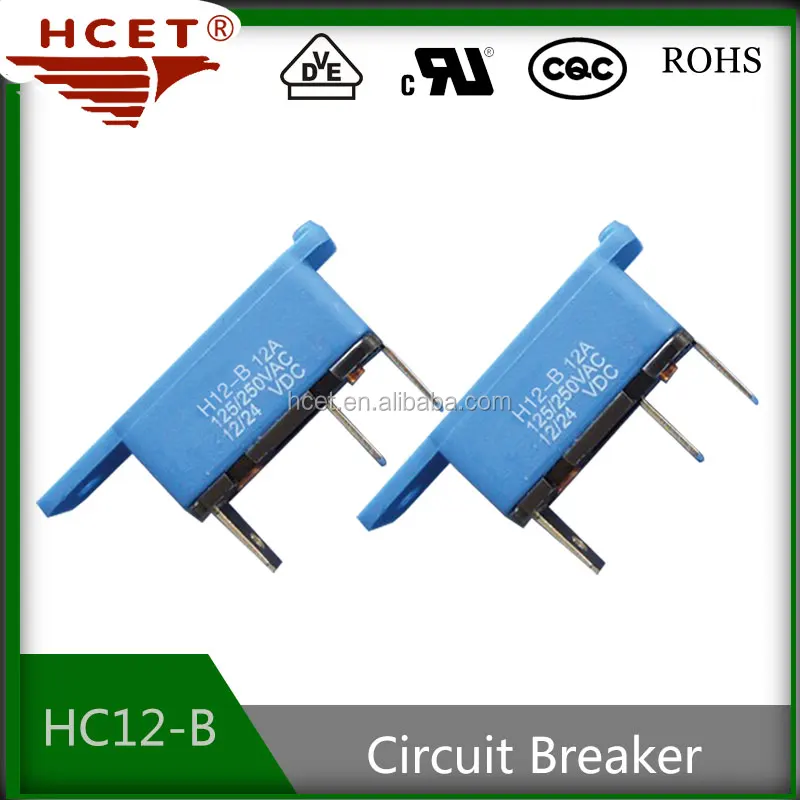

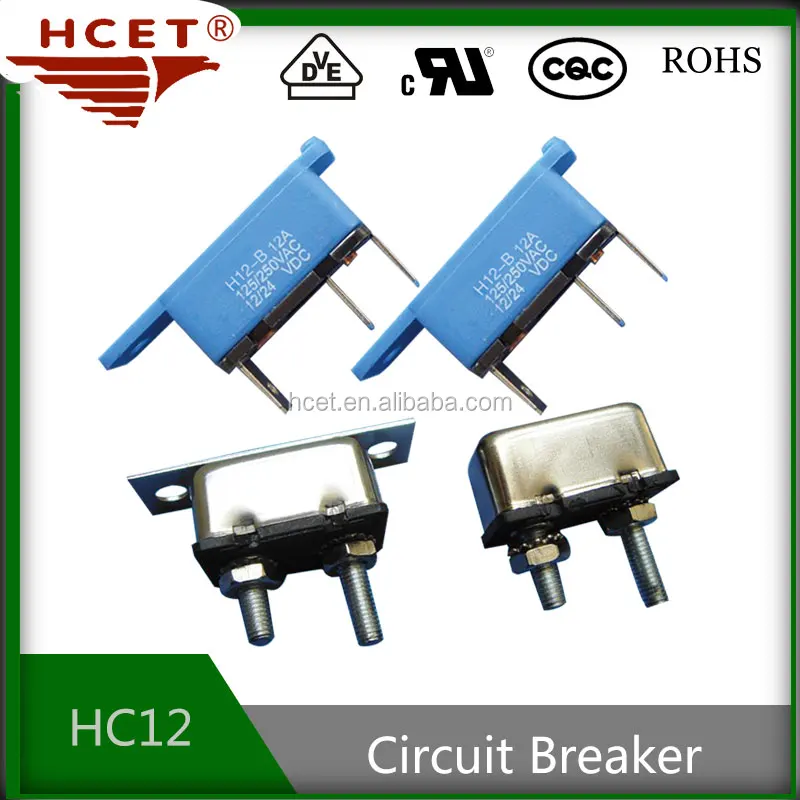

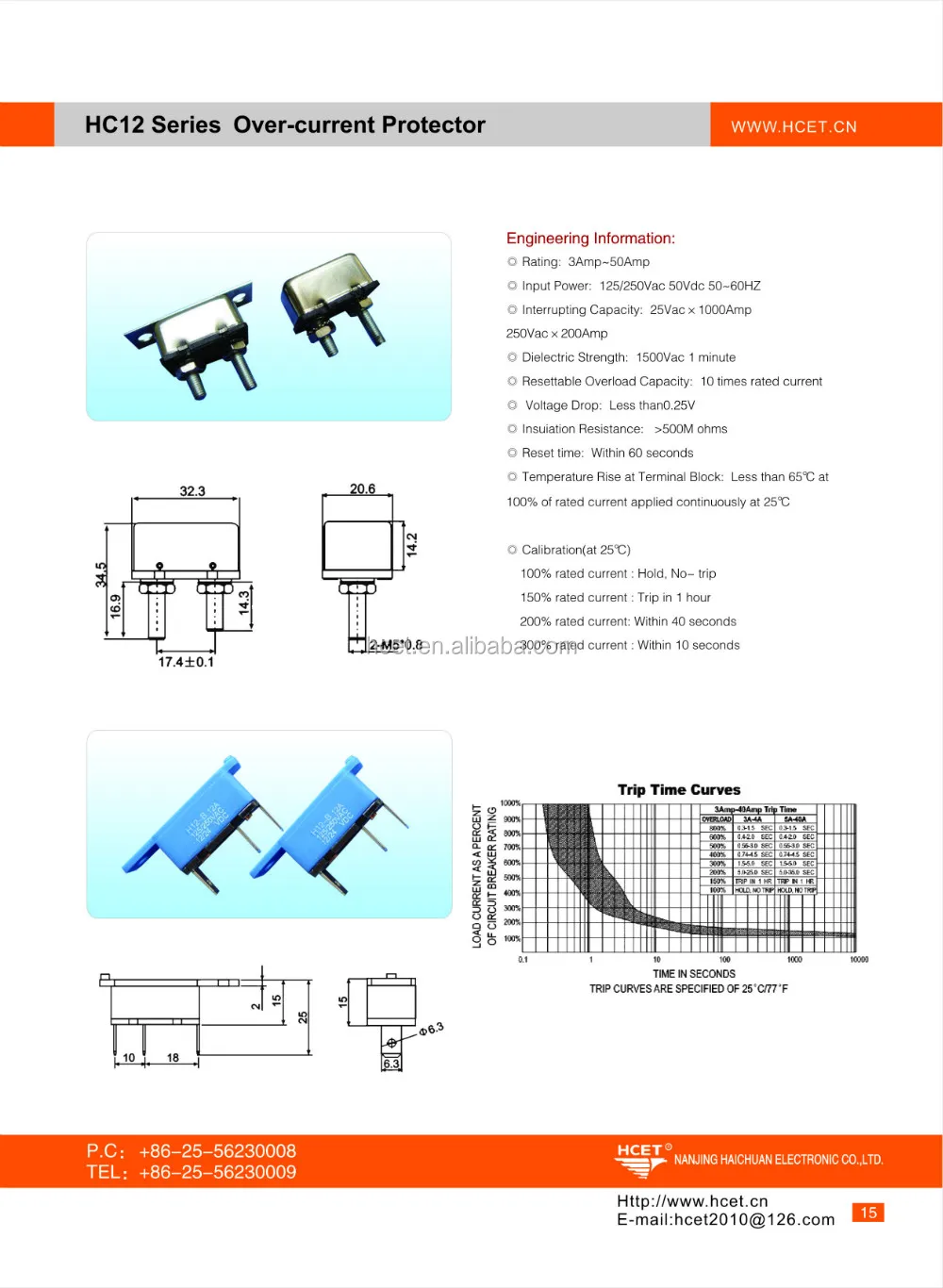

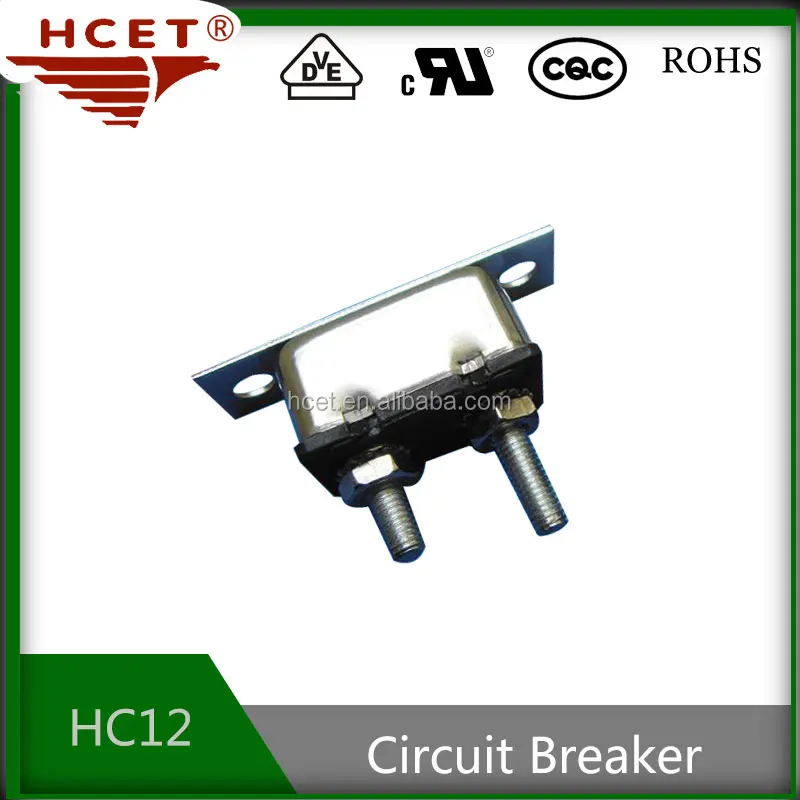

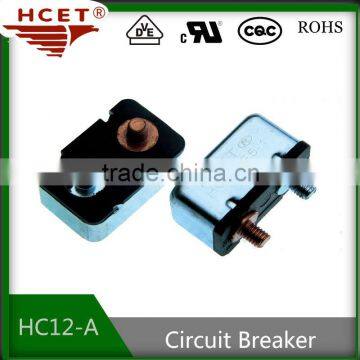

HC12 Series Over-current Protector
Engineering Information:
● Rating: 3Amp~50Amp
● Input Power: 125/250Vac 50Vdc 50~60HZ
● Interrupting Capacity: 25Vac×1000Amp; 250Vac×200Amp
● Dielectric Strength: 1500Vac 1 minute
● Resettable Overload Capacity: 10 times rated current
● Voltage Drop: Less than0.25V
● Insuiation Resistance: >500M ohms
● Reset time: Within 60 seconds
●Temperature Rise at Terminal Block: Less than 65℃ at 100% of rated current applied continuously at 25℃
●Calibration(at 25℃)
100% rated current : Hold, No- trip
150% rated current : Trip in 1 hour
200% rated current: Within 40 seconds
300% rated current : Within 10 seconds
Engineering Information:
● Rating: 3Amp~50Amp
● Input Power: 125/250Vac 50Vdc 50~60HZ
● Interrupting Capacity: 25Vac×1000Amp; 250Vac×200Amp
● Dielectric Strength: 1500Vac 1 minute
● Resettable Overload Capacity: 10 times rated current
● Voltage Drop: Less than0.25V
● Insuiation Resistance: >500M ohms
● Reset time: Within 60 seconds
●Temperature Rise at Terminal Block: Less than 65℃ at 100% of rated current applied continuously at 25℃
●Calibration(at 25℃)
100% rated current : Hold, No- trip
150% rated current : Trip in 1 hour
200% rated current: Within 40 seconds
300% rated current : Within 10 seconds
