22kw 30hp 7-12.5 bar Stationary Air Cooled Most Competitive Price Screw Air Compressor

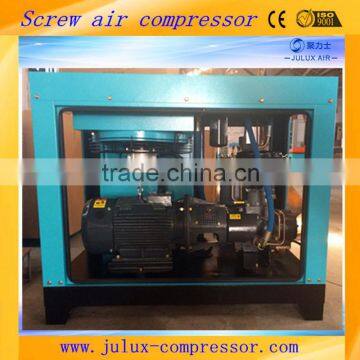

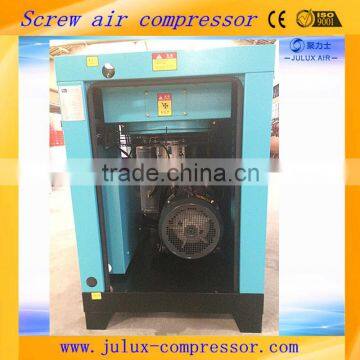

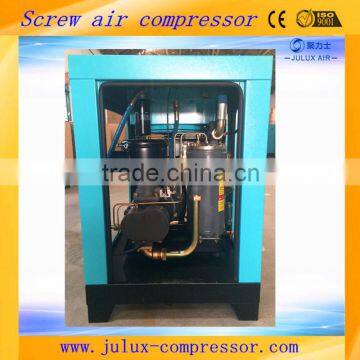

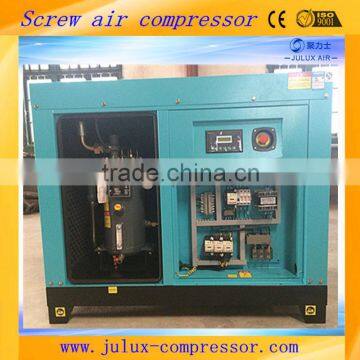

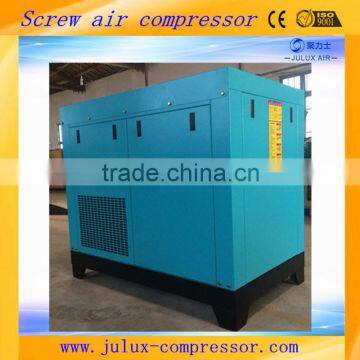

Product picture
Air line system
Structure
Technical parameters sheet
| Model | JLS-22F | ||||
|
Free Air Delivery /Discharge Pressuer(m3/min/Mpa) |
3.95/0.7 | ||||
| 3.56/0.8 | |||||
| 3.12/1.0 | |||||
| 2.8/1.25 | |||||
| Electric Motor |
Voltage/Frequency(V/Hz) | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||
| Output(KW/HP) | 22/30 | ||||
| Motor speed(RPM) | 2940 | ||||
| Isulation Class | Class F | ||||
| Protection Class | IP 54 | ||||
| Sarting Method | Y-ΔStarting / Soft starting/ Frequency conversion | ||||
| Cooling Model | Air cooling | ||||
| Discharge Temp(℃) | Air cooling≤ Ambient temperature+12℃; Water cooling≤38℃ | ||||
| Drive Method | Belt or Direct | ||||
| Lubricanting Oil Capacity(L) | 22 | ||||
| Noise(dB(A)) | <66±2 | ||||
| Environment Temp(℃) | -5 to +45℃ | ||||
| Oil content of compressed air | < 2ppm | ||||
|
Dimension |
Length(mm) | 1050 | |||
| Width(mm) | 780 | ||||
| Height(mm) | 1125 | ||||
| Air Outlet Pipe Diameter(inch) | G11/4" | ||||
| Net Weight(kg) | 480 | ||||
More models
Part 1
| Model | JLS-7.5F | JLS-11F | JLS -15F | JLS-18.5F | JLS-22 F/S | JLS-30 F/S | JLS-37 F/S | JLS-45 F/S | JLS-55 F/S | JLS-75 F/S | ||||
|
Free Air Delivery (m3/min) (Mpa) |
1.4/0.7 | 2.03/0.7 | 2.6/0.7 | 3.2/0.7 | 3.95/0.7 | 5.25/0.7 | 6.82/0.7 | 8.03/0.7 | 10.8/0.7 | 14.1/0.7 | ||||
| 1.3/0.8 | 1.81/0.8 | 2.4/0.8 | 2.92/0.8 | 3.8/0.8 | 5.06/0.8 | 6.46/0.8 | 7.61/0.8 | 10.2/0.8 | 13.3/0.8 | |||||
| 1.1/1.0 | 1.51/1.0 | 2.0/1.0 | 2.65/1.0 | 3.2/1.0 | 4.53/1.0 | 5.83/1.0 | 7.0/1.0 | 9.0/1.0 | 11.6/1.0 | |||||
| 1.0/1.25 | 1.2/1.25 | 1.7/1.25 | 2.1/1.25 | 2.8/1.25 | 3.9/1.25 | 5.06/1.25 | 6.1/1.25 | 8.4/1.25 | 10.0/1.25 | |||||
| Motor | Voltage/Frequency | V/Hz | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||||||||||
| Power | KW/HP | 7.5/10 | 11./15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/10 | |||
| Motorspeed | RPM | 2930 | 2940 | 2950 | 297 | |||||||||
| Sarting Method | Y-ΔStarting / Soft starting/ Frequency conversion | |||||||||||||
| Cooling Mode | Air cooling | Air/water cooling | ||||||||||||
| Discharge Temp | °C | Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C | ||||||||||||
| Noise | dB(A) | <68±2 | <70±2 | <75 ±2 | ||||||||||
| Oil content of compressed air | < 2ppm | |||||||||||||
|
Dimension |
Length | mm | 750 | 945 | 945 | 1050 | 1050 | 1120 | 1170 | 1220 | 1500 | 1950 | ||
| Width | mm | 730 | 706 | 706 | 780 | 780 | 800 | 880 | 915 | 1150 | 1450 | |||
| Height | mm | 840 | 1125 | 1125 | 1125 | 1125 | 1200 | 1350 | 1450 | 1580 | 1500 | |||
| Air Outlet Pipe Diameter | inch | G3/4 | G1" | G1" | G1 1/4" | G1 1/4" | G1 1/4" | G1 1/2" | G1 1/2" | DN50 | DN50 | |||
| Cooling Water Pipe Diameter | m3/h | - | - | - | - | - | - | - | - | 5.0 | 6.8 | |||
| Net Weight | KG | 220 | 260 | 290 | 460 | 480 | 550 | 650 | 700 | 1180 | 1350 | |||
Part 2
| Model | JLS-90F/S | JLS-110F/S | JLS-132F/S | JLS-160F/S | JLS-185F/S | JLS-200F/S | JLS-220F/S | JLS-250F/S | ||||
|
Free Air Delivery (m3/min) (Mpa) |
17.2/0.7 | 21.6/0.7 | 25.6/0.7 | 30.0/0.7 | 34.2/0.7 | 38.6/0.7 | 42.8/0.7 | 45.0/0.7 | ||||
| 16.5/0.8 | 20.6/0.8 | 24.0/0.8 | 29.0/0.8 | 33.0/0.8 | 37.4/0.8 | 40.0/0.8 | 43.1/0.8 | |||||
| 15.0/1.0 | 19.0/1.0 | 22.0/1.0 | 26.2/1.0 | 30.0/1.0 | 34.0/1.0 | 36.5/1.0 | 39.5/1.0 | |||||
| 13.2/1.25 | 17.5/1.25 | 19.0/1.25 | 24.5/1.25 | 28.0/1.25 | 32.0/1.25 | 34.0/1.25 | 36.3/1.25 | |||||
| Motor | Voltage/Prequency | V/Hz | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||||||||
| Power | KW/HP | 90/125 | 110/150 | 132/180 | 160/220 | 185/250 | 200/270 | 220/300 | 250/340 | |||
| Motor speed | RPM | 2970 | 2980 | |||||||||
| Sarting Method | Y-ΔStarting / Soft Starting/ Prequency conversion | |||||||||||
| Cooling Model | Air / water cooling | |||||||||||
| Discharge Temp | °C | Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C | ||||||||||
| Noise | dB(A) | <75±2 | <78±2 | |||||||||
| Oil content of compressed air | < 2ppm | |||||||||||
| Dimension |
Length | mm | 2000 | 2300 | 2300 | 2600 | 2600 | 2600 | 2800 | 2800 | ||
| Width | mm | 1450 | 1700 | 1700 | 1750 | 1750 | 1750 | 2000 | 2000 | |||
| Height | mm | 1500 | 1610 | 1610 | 1910 | 1910 | 1910 | 2000 | 2000 | |||
| Air Outlet Pipe Diameter | inch | DN50 | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN100 | |||
| Cooling Water Pipe Diameter | m3/h | 8.0 | 10.0 | 12.0 | 14.5 | 16.8 | 18.0 | 20.0 | 23.0 | |||
| Net Weight | KG | 1450 | 1950 | 2200 | 2650 | 3800 | 4100 | 4500 | 4550 |
|||
We are focus on details
Certification
About us
Why Choose Us?
1. We supply good quality compressor with reasonable price.
2. We make the canopy by ourself, so we can produce the design according to your requirment easily.
3. We are professional because we only produce screw air compressor.
4. We are exactly manufacturer, we have our own export licence.
FAQ
Q1: How to choose a suitable air compressor?
1. How about your air delivery capacity ( Unit:CFM or M3/Min )?
2 What is your working pressure ( Unit:PSI, Bar or Mpa )?
3.What is your voltage ( V/Hz )?
4.Do you need any after processing ( Such as Air Tank, Filter and Air Dryer )?
Tell us the answer,we will offer scheme for you!
Q2: About general unit conversion:
1bar = 0.1Mpa = 14.5psi 1m³/min = 35.32cfm 1KW = 1.34HP
Q3: Are you factory or trade company?
We are factory. Our factory is located in Building 1, No.100 Wucuo Industry Park, Luozhou Town, Cangshan District, Fuzhou city, Fujian province, China.
Q4: Which trade term can you accept?
Available trade terms: FOB, CIF, CFR, EXW, etc.
Q5: How long will you take to arrange production?
We will delivery about 25 days.
